5P PBT Material 15A Rated Loading IP66 Developer Kit
5P PBT Material 15A Rated Loading IP66 Developer Kit
5P PBT Material 15A Rated Loading IP66 Developer Kit
5P PBT Material 15A Rated Loading IP66 Developer Kit
5P PBT Material 15A Rated Loading IP66 Developer Kit
5P PBT Material 15A Rated Loading IP66 Developer Kit
Specifications
Brand Name :
LongJoin
Model Number :
241J 5P
Place of Origin :
China
Price :
negotiable
Packaging Details :
Different packaging methods are adopted according to different modes of transport.
Payment Terms :
Western Union,MoneyGram,T/T
Rated Voltage :
Max 480Vac
Rated Loading :
15A
Signal Control :
0-30 VDC, 250 mA Max
Material Quality :
PBT
Ambient Temperature :
-40℃~ + 70℃
Real-world Scenarios :
Smart City Pilot Projects
Description

241J 5P

Product Summary

Shanghai Longjoin Wireless Single Lamp Controller Housing Kit is based on 5pin NEMA interfaces, and is mainly used for lighting energy-saving control and other built-in electronic controller products. The power connection adopts standard NEMA plugs, which are rotationally locked; The signal connection uses gold plated shrapnel to ensure stable transmission and achieve intelligent control of lighting equipment.

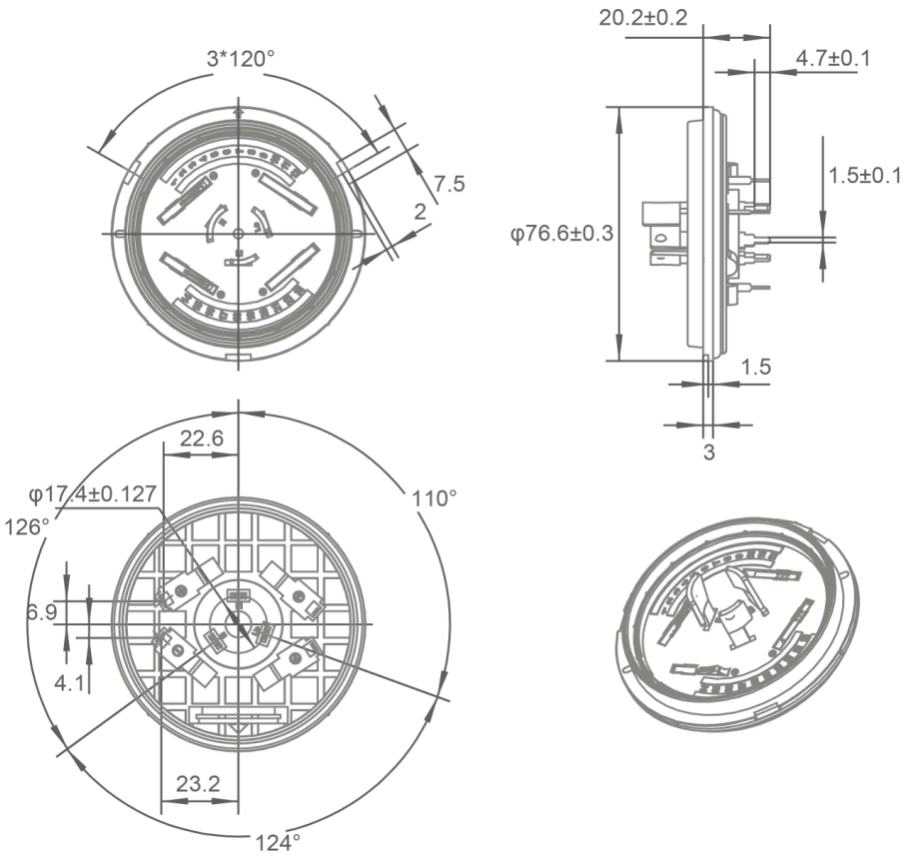

Product size

5P PBT Material 15A Rated Loading IP66 Developer Kit


Specifications

Model No.

JL-241J

Rated Voltage

Max 480Vac

Rated Frequency

50/60Hz

Rated Loading

15A

Signal Control

0-30 VDC, 250 mA Max

IP

IP66(Reachable after assembly)

Material Quality

PBT

Ambient Temperature

-40℃~ + 70℃


FAQs

Q1: What is the 5P PBT Material 15A IP66 Developer Kit?

A: It is a professional developer kit for lighting control modules, featuring 5-pin interface, PBT material, 15A load capacity and IP66 protection, suitable for outdoor and industrial development.

Q2: What does the 5-pin (5P) interface design offer?

A: The 5P interface supports stable power and dimming signal transmission, widely compatible with standard NEMA lighting control systems.

Q3: What are the key properties of PBT material?

A: PBT material provides high mechanical strength, good insulation, heat resistance, aging resistance and long-term durability in harsh environments.

Q4: What is the rated loading of this developer kit?

A: It supports a rated current up to 15A, ensuring stable power supply for high-power lighting and control equipment.

Q5: What does IP66 protection level mean?

A: IP66 provides complete dust protection and strong water resistance against powerful water jets, making it ideal for outdoor and harsh environment testing.
