Base Developer Kit PBT With 20% Glass Fibre Material
Base Developer Kit PBT With 20% Glass Fibre Material
Base Developer Kit PBT With 20% Glass Fibre Material
Base Developer Kit PBT With 20% Glass Fibre Material
Base Developer Kit PBT With 20% Glass Fibre Material
Base Developer Kit PBT With 20% Glass Fibre Material
Specifications
Brand Name :
LongJoin
Model Number :
711J
Place of Origin :
China
Price :
negotiable
Packaging Details :
Different packaging methods are adopted according to different modes of transport.
Payment Terms :
Western Union,MoneyGram,T/T
Rated Voltage :
Maximum 30VDC
Material :
PBT with 20% glass fibre (UL94 V-0 rating)
Terminal Material :
Brass 0.8mm thick, tinned
Cover material :
UV stable 94V-0 grade PC
Working Temperature :
-40℃~ + 70℃
Real-world Scenarios :
Urban Pedestrian Zones
Description
Base Developer Kit PBT With 20% Glass Fibre Material

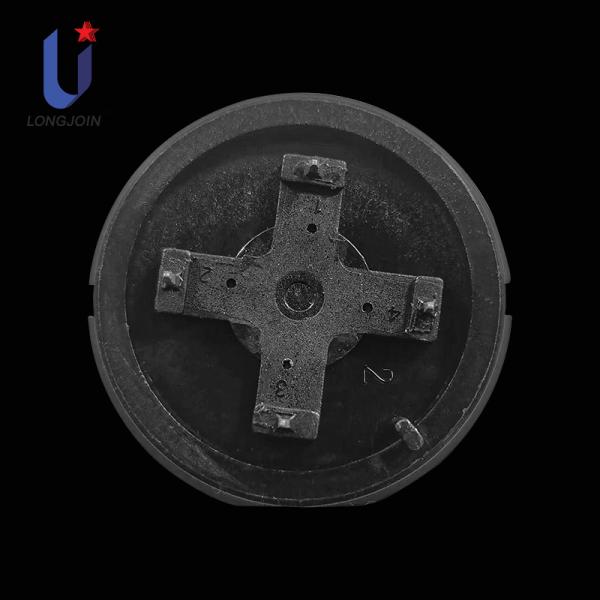

711J Base

The Shanghai Longjoin wireless controller housing kit is based on the 700 interface and is primarily used for energy-saving lighting control and other controller products with built-in electronics. The power connection utilizes a standard Zhaoga plug, while the signal connection employs tin-plated copper sheets to ensure stable transmission and achieve intelligent control of lighting equipment.

Product Dimensions
Base Developer Kit PBT With 20% Glass Fibre Material
Supporting Shell Components
Base Developer Kit PBT With 20% Glass Fibre Material
Technical Specifications
Model 711J
Rated Voltage Maximum 30VDC
Applicable Current Maximum 1.5A
Material PBT with 20% glass fibre (UL94 V-0 rating)
Terminal Material Brass 0.8mm thick, tinned
Cover Material UV stable 94V-0 grade PC
Working Temperature -40℃ to +70℃
Frequently Asked Questions
What is the Base Developer Kit PBT With 20% Glass Fibre Material?
It is a high-strength base developer kit made of PBT material blended with 20% glass fibre, used for testing and connecting smart lighting and NEMA control modules.
What material is this base developer kit constructed from?
It is made of PBT engineering material with 20% glass fibre reinforcement, providing enhanced mechanical and thermal performance.
What are the advantages of 20% glass fibre reinforced PBT?
It greatly improves strength, rigidity, heat resistance and deformation resistance, making the base more stable and durable in long-term use.
What properties does this material offer for outdoor and industrial use?
It features good insulation, anti-aging, weather resistance and dimensional stability, suitable for harsh environment applications.
What is the main application of this base developer kit?
It is mainly used for R&D, testing and verification of NEMA photocontrol, dimming modules and IoT lighting controllers.
