Base Developer Kit 15A Rated Loading Max 480V Rated Voltage
Base Developer Kit 15A Rated Loading Max 480V Rated Voltage
Base Developer Kit 15A Rated Loading Max 480V Rated Voltage
Base Developer Kit 15A Rated Loading Max 480V Rated Voltage
Base Developer Kit 15A Rated Loading Max 480V Rated Voltage
Base Developer Kit 15A Rated Loading Max 480V Rated Voltage
Specifications
Brand Name :
LongJoin
Model Number :
245J
Place of Origin :
China
Price :
negotiable
Packaging Details :
Different packaging methods are adopted according to different modes of transport.
Payment Terms :
Western Union,MoneyGram,T/T
Rated Voltage :
Max 480Vac
Rated Loading :
15A
Signal Control :
0-30 VDC, 250 mA Max
Material Quality :
PBT
Ambient Temperature :
-40℃~ + 70℃
Real-world Scenarios :
Airport & Seaport Lighting
Description

Product Summary

Shanghai Longjoin Wireless Single Lamp Controller Housing Kit is based on 5pin and 7pin NEMA interfaces, and is mainly used for lighting energy-saving control and other built-in electronic controller products. The power connection adopts standard NEMA plugs, which are rotationally locked; The signal connection uses gold plated shrapnel to ensure stable transmission and achieve intelligent control of lighting equipment.

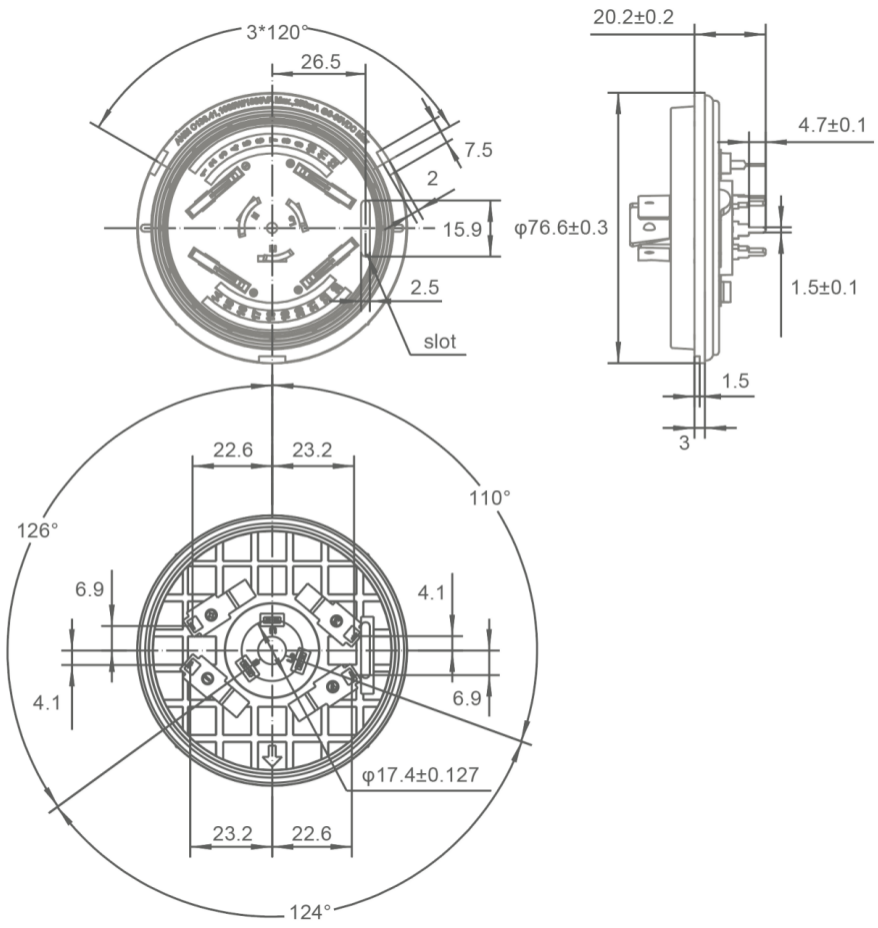

Product size

Base Developer Kit 15A Rated Loading Max 480V Rated Voltage


Specifications

Model No.

JL-245J

Rated Voltage

Max 480Vac

Rated Frequency

50/60Hz

Rated Loading

15A

Signal Control

0-30 VDC, 250 mA Max

IP

IP66(Reachable after assembly)

Material Quality

PBT

Ambient Temperature

-40℃~ + 70℃


FAQs

Q1: What is the Base Developer Kit 15A 480V?

A: It is a professional base-type developer kit for intelligent lighting control, supporting high voltage and high current for module testing and development.

Q2: What is the rated loading current of this base developer kit?

A: It has a 15A rated loading current, ensuring stable power supply for high-power lighting control modules.

Q3: What is the maximum rated voltage?

A: The maximum rated voltage is 480V, suitable for high-voltage industrial and outdoor lighting test systems.

Q4: What is the main function of this base developer kit?

A: It provides a stable testing base for photocontrol and dimming modules, supporting reliable electrical connection and performance verification.

Q5: In which applications is this kit mainly used?

A: It is mainly used for R&D, testing and verification of high-voltage & high-power smart street lamps, road lighting and industrial control modules.
