JL-202 Thermal Photocontrol NEMA Twist Lock Time Delay Function Fail On Mode Small
JL-202 Thermal Photocontrol NEMA Twist Lock Time Delay Function Fail On Mode Small
JL-202 Thermal Photocontrol NEMA Twist Lock Time Delay Function Fail On Mode Small
JL-202 Thermal Photocontrol NEMA Twist Lock Time Delay Function Fail On Mode Small
JL-202 Thermal Photocontrol NEMA Twist Lock Time Delay Function Fail On Mode Small
JL-202 Thermal Photocontrol NEMA Twist Lock Time Delay Function Fail On Mode Small
Specifications
Brand Name :
LongJoin
Model Number :
JL-202
Place of Origin :
China
Rated Voltage :
120VAC(202A) / 220VAC(202B) / 208VAC(202C) / 277VAC(202D)
Power Consumption :
1.5W Max.
Operate Levels :
10~20Lx Turn-On / 30~60Lx Turn-Off
Fail Mode :
Fail-On
Certifications :
RoHS,UL,CE
Price :
negotiable
Packaging Details :
Different packaging methods are adopted according to different modes of transport.
Payment Terms :
Western Union, MoneyGram, T/T
Description

JL-202 Thermal Photocontrol NEMA Twist-lock Time Delay Function Fail-On Mode SMALL

Product Summary

The photocontrol switch is applicable to control the street lighting and passage lighting automatically in accordance with the ambient lighting level.

This product is designed on the basis of thermal - bimetallic structure that provides time delay over 30 seconds to avoid redundancy operation due to spotlight or lightning during the night time. A temperature compensation system provides consistent performance regardless to the ambient temperature.

This product provides three twist-lock terminals meeting the requirements of ANSI C136.10 and the Standard for Plug-In, Locking Type Photocontrols for Use with Area Lighting ANSI/UL773.

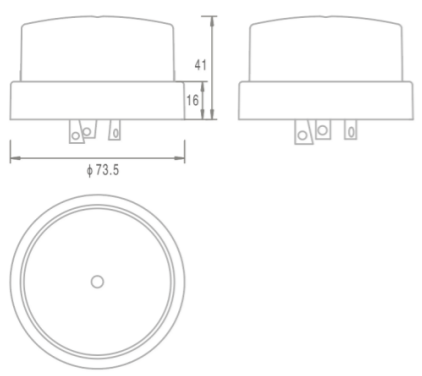

Product size

JL-202 Thermal Photocontrol NEMA Twist Lock Time Delay Function Fail On Mode Small

Product Features

  • ANSI C136.10 Twist-lock

  • Time Delay Function

  • Optional Surge Arrester Built-in

  • Fail-On Mode

  • UV Stabilized Enclosure

  • IP54/IP65 Available

Specifications

Model No.

JL-202A

JL-202B

JL-202C

JL-202D

Rated Voltage

120VAC

220VAC

208VAC

277VAC

Rated Frequency

50/60Hz

Rated Loading

1800W Tungsten, 1000VA Ballast

Power Consumption

1.5W Max.

Operate Levels

10~20Lx Turn-On / 30~60Lx Turn-Off

Ambient Temperature

-40℃ ~ +70℃

Related Humidity

96%

Clear Enclosure (null)

Available

Fail Mode

Fail-On

Shell material

PC

IP level *

IP54 / IP65 / IP67

Certifications

JL-202 Thermal Photocontrol NEMA Twist Lock Time Delay Function Fail On Mode Small

*Note: Standard and M models IP level: IP54; H models IP level :IP54/IP65/IP67;
