Specifications
Cabinet Size :
640x480mm Or Customization
Resolution :
128*64
Scan :
32s
Refresh Rate :
3840Hz adjustable
Warranty :
3 years
Cabinet material :
Iron cabinet or diecasting aluminum cabinet
Model :
Curved Indoor P2 . 5 full color led display
Brand Name :
Longda Led
Model Number :
Curved Indoor P2 . 5
Certification :
CCC , ISO9001 , FCC , CE , ROHS , ISO14001
Place of Origin :
Shenzhen , China
MOQ :
1 Sqm
Price :
price is negotiable
Payment Terms :
L / C,T / T,Western Union
Supply Ability :
1000 Sqm / Month
Delivery Time :
15 ~ 18 days
Packaging Details :
Flight case packing or Plywood case packing
Brightness :
≧ 800cd adjustable
Description

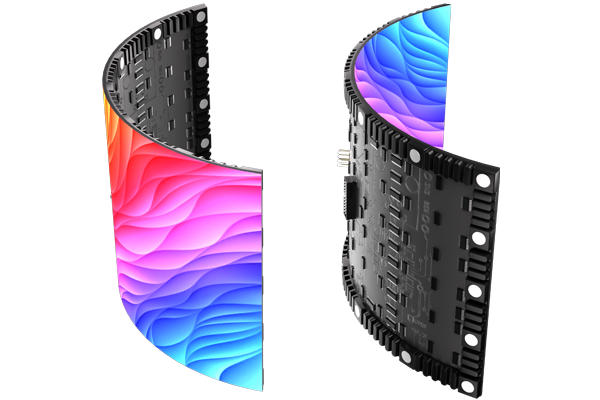

Curved Led Screen P2 . 5 Led Display Wall Flexible Moudle 320 * 160mm Passed CE / ROHS





Specifications:


Pitch

2 . 5 mm

Refresh rate

3840Hz adjustable

Resolution

160000 pixels / m²

Led lamp

SMD 2121

Voltage

90V ~ 130V ; 196V ~ 264V

Control system

Nova Star , Linsn , Color light , Mooncell , Kystar

Max . Power / Sqm

200W / Sqm

Ave . Power / Sqm

110W / Sqm

Grey

14 bits

Brightness

≧ 800cd

Maintenance

Magnet front service

Life Span

100000 hours

Working temperature

- 40 ℃ ~ 60 ℃

Working Humidity

10 % ~ 90 %



ROHS CCC Flexible Curved Led Display Screen P2 . 5 Module 1920Hz 320*160mm


ROHS CCC Flexible Curved Led Display Screen P2 . 5 Module 1920Hz 320*160mm




Different Types of Curved LED Displays for Every Need


We provide a variety of Curved LED Displays ensuring the best visual experience for any project.

Curved LED Advertising Displays: Ideal for shopping malls, flagship stores, and airports – the curved design enhances visual impact and improves advertising effectiveness.

Curved LED Screen Rental: Temporary display solutions for exhibitions, product launches, and promotional events featuring quick installation/removal.

Curved LED Video Walls: Creates immersive backgrounds for concerts, stage performances and large-scale events to amplify audience engagement.

Outdoor Curved LED Screens: High-brightness, weatherproof displays for outdoor billboards, architectural facades and public square branding that withstand various climate conditions.



ROHS CCC Flexible Curved Led Display Screen P2 . 5 Module 1920Hz 320*160mm


Quality and service

1 . Strict quality control :
The quality of our display is excellent.
We use the materials of high-quality suppliers in the world, strictly control the production process,
and pass the multiple quality inspections to ensure that every product is qualified.

2 . Quality guarantee :
All our LED display screens are more than 100,000 hours of life span.

3 . Long warranty :
2-3 years warranty, any quality problem during warranty time will be handled.

4 . Prompt & Professional service :
Any inquiries will be replied to within 24/7 hours and you'll get helpful suggestions from us.





Your questions
1: LED display models are generally expressed in PX, such as P2 P3 P4.....P8, P10, what does this mean?
A: P1.25, P2, P3 P4.....P8, P10 means that the pixel pitch is 1.25mm, 2mm, 3mm 4mm....10mm,

which determines resolution of a display. Pixel pitch is smaller, led display resolution is higher.

2: To order a display, What kind of information do I have to offer you?
A: You should provide width& height of the display, the main use, the viewing distance, the scene photos,

special requirements, then I can provide you with a detailed list of quotations.

3: How to install?
A: Free of charge to provide detailed steel structure drawings and installation guidance and wiring diagram,

free remote debugging. We can also send our engineers to your site to guide the installation if needed.

4: What about the lead time?
A: Orders less than 50 square meter display, lead time is 18-25 working days.

5: Can I order a sample?
A: Yes, your sample orders are welcome, after checking our quality and service,

we are confident that you will come back for your future orders.
