Specifications
Cabinet material :
Iron cabinet or diecasting aluminum cabinet
Model :
Curved Outdoor P5
Scan :
8s
Warranty :
3years
Refresh Rate :
3840Hz adjustable
Brightness :
4000nits adjustable
Cabinet Size :
960*960mm
Resolution :
64*32
Brand Name :
LONGDA LED
Model Number :
Curved Outdoor P5
Certification :
CE / ROHS / FCC / CCC / ISO9001 / ISO14001
Place of Origin :
SHENZHEN
MOQ :
1pcs
Price :
price is negotiable
Payment Terms :
L / C,T / T,Western Union
Supply Ability :
5000sqm per month
Delivery Time :
10 - 15 days
Packaging Details :
Plywood case or flightcase
Description

Curved Led Video Screen Outdoor P5 With Competitive Price For Transport Ads




Why Curved LED?
1.Super Viewing Experience
Immersive visual field: Curved design matches natural eye curvature, reducing edge distortion for prolonged viewing comfort.
Wide viewing angles: Maintains <5% color/brightness variance at 178° (vs >15% with flat screens).
2.Flexible Installation
Custom curvature: R800-R5000 options for columns, wave walls, and unique structures.
Space efficiency: Eliminates flat-screen blind zones in circular/irregular spaces.
3.Cost Efficiency
Energy saving: 20% lower power consumption than conventional LED displays.
Longevity: 50,000-hour lifespan (13+ years at 10h/day).


LONGDA Flexible Curved Video Screen P5 Outdoor Waterproof 40000 dots / M2



Product Specifications


Type P5
Pitch

5mm

Series 960*960mm Series
Cabinet Type Outdoor Standard Waterproof Cabinet
Access / Maintenance Rear Maintenance
LED Model & Type 1921
LED Make Rayshine
Refresh 3840Hz adjustable
Brightness 4000nits adjustable
Contrast 5000:1
Viewing Angle H 160°,V 160°
Control System NovaStar
Scan

8s

Density(dot/m²) 40000
Module Pixels (L*H) 64*32
Module Size (L*H)mm 320*160mm
Cabinet Resolution (dot) 36864
Cabinet Size (L*H)mm 960*960mm
Cabinet Depth (mm) 137
Single Cabinet weight (kg) 45KG
Max Power (watts / m²) 800
Avg Power (watts/m²) 240
Single Cabinet weight (kg) 45
Certification 3C CE ROHS
Ingress Protection (IP) IP65
Grayscale 14-16bit+
Control mode Synchronous control or Asynchronous control
Operation Temperature - 20 ℃ ~ + 45 ℃
Operation Humidity 10 % ~ 95 %
Life Span 100000h
Compatible Function Double power supply&receive card (One for use,one for back up)


LONGDA Flexible Curved Video Screen P5 Outdoor Waterproof 40000 dots / M2



LONGDA Flexible Curved Video Screen P5 Outdoor Waterproof 40000 dots / M2

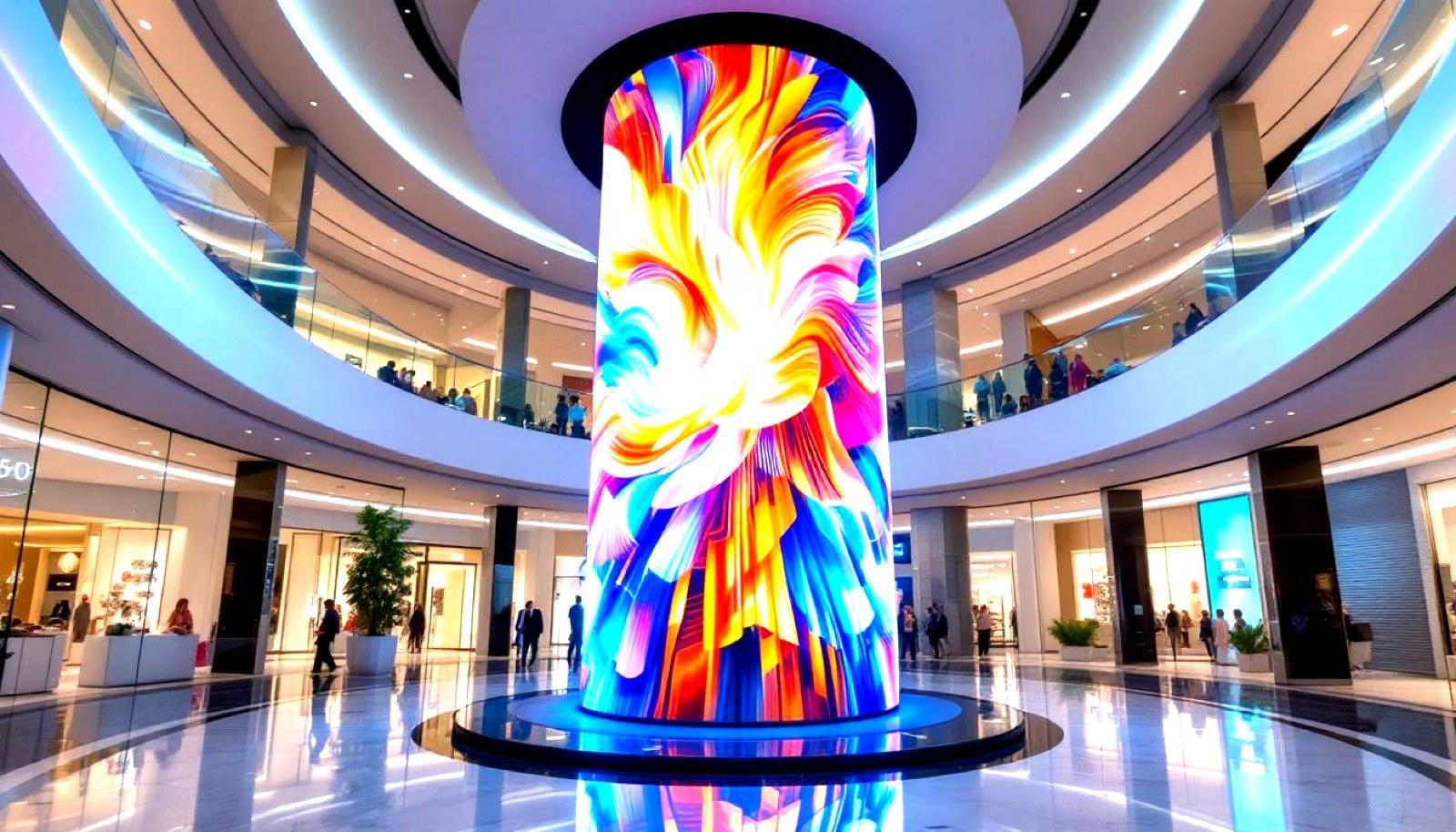

Product Applications of Curved LED Screens
Retail & Advertising: Curved LED screens boost brand visibility and engage customers in commercial spaces, fitting seamlessly into modern designs.
Entertainment & Events: They provide immersive backdrops for concerts, exhibitions, and live events, enhancing audience experiences.
Control Rooms & Broadcasting: Curved video walls improve monitoring with panoramic views, reducing eye strain and maintaining image consistency.
Simulation & Training: Curved LEDs create realistic environments in simulators and training, supporting precise, real-time visualization.


For specific implementation examples, our experts can provide tailored recommendations based on your space and content requirements.



LONGDA Flexible Curved Video Screen P5 Outdoor Waterproof 40000 dots / M2



FAQ


1 . How about your packing ?
Carton / Plywood case / Flightcase .

2 . Which shipping way do you support ?

Our factory have shipping agent , if you want us help you for shipping , you can choose shipping by sea or air .

you only need to tell us your request and sea port or air port .

3 . Is the product customizable ?
Yes ,
we can customize the product according to your needs , you just need to provide the requirements details .

4 . Do you test all your goods before delivery ?
Yes , we have 100 % test before delivery .



LONGDA Flexible Curved Video Screen P5 Outdoor Waterproof 40000 dots / M2



Company other products
Indoor fixed LED screen : P2.5 , P3 , P4 , P5 , P6 , P8 , P10
Indoor rental LED screen : P3 , P3.91, P4, P4.81, P5, P6
Outdoor fixed LED screen : P5, P6, P8, P10
Outdoor rental LED screen : P3.91, P4.81, P5, P6, P6.25, P8, P10
Small pitch LED screen : P1.25, P1.56, P1.6, P1.83, P1.86, P1.875, P1.9
Front service maintenance LED screen : P6.67, P8, P10
Stadium perimeter LED screen : P8, P10
LED poster player : P2.5, P3, P4, P5, P6, P8, P10
