Specifications
Cabinet Size :
640 * 480mm
Resolution :
256*128
Cabinet material :
Iron cabinet or diecasting aluminum cabinet
Model :
Indoor P1 . 25
Scan :
64s
Refresh Rate :
3840Hz
Warranty :
3years
Brand Name :
Longda LED
Model Number :
Indoor P1 . 25
Certification :
CE / ROHS / FCC / ISO9001 / ISO14001 / CCC
Place of Origin :
ShenZhen, China
MOQ :
1 Sqm
Price :
price is negotiable ( Sqm )
Payment Terms :
L / C,T / T,Western Union
Supply Ability :
5000sqm per month
Delivery Time :
15 - 18 days
Packaging Details :
Flight case packing or Plywood case packing
Brightness :
600-800nits
Description


Indoor Full Color Led Screen P1.25 LED Wall Diecasting Aluminum Cabinet For Rental




Introduction :


Indoor full color led screen P1 . 25 has high definition and high resolution ,

As the manufacturer , we can offer pretty competitive price and good quality , professional-grade components for reliable long-term operation,

it with 640 * 480mm die - casting aluminum cabinet , very portable and easy installation.


Indoor Full Color Led Display Video Wall Panels 1R1G1B 281 Trillion



Spesifications :

Type P1.25
Pitch 1.25
Series Flexible 320*160mm
Cabinet Type 640 * 480mm
Access / Maintenance Front Maintenance
LED Model & Type SMD1010
LED Make Rayshine
Refresh 3840Hz
Brightness 600-800nits
Contrast 5000:1
Viewing Angle H 160°,V 160°
Scan 64
Density(dot/m²) 640000
Module Pixels (L*H) 256*128
Module Size (L*H)mm 320*160mm
Module Depth (mm) 7mm
Max Power (watts / m²) 520
Avg Power (watts/m²) 195
Module Weight (kg/pcs) 0.25kg
Certification 3C CE ROHS
Ingress Protection (IP) IP30
Grayscale ≥14bit



Indoor Full Color Led Display Video Wall Panels 1R1G1B 281 Trillion


Production Applications :

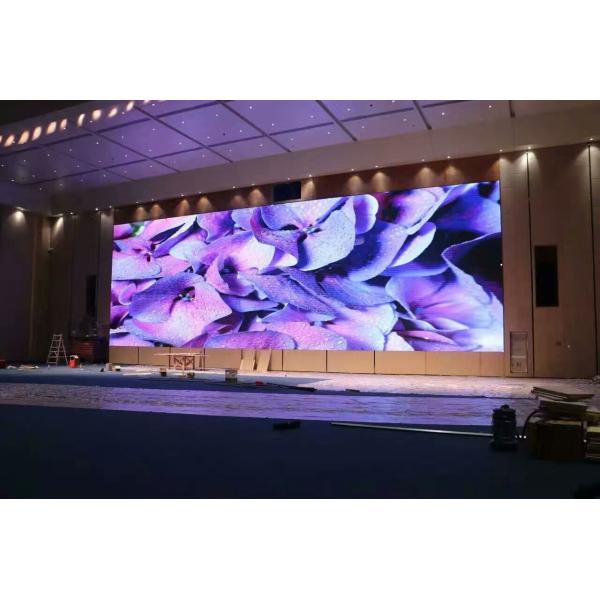

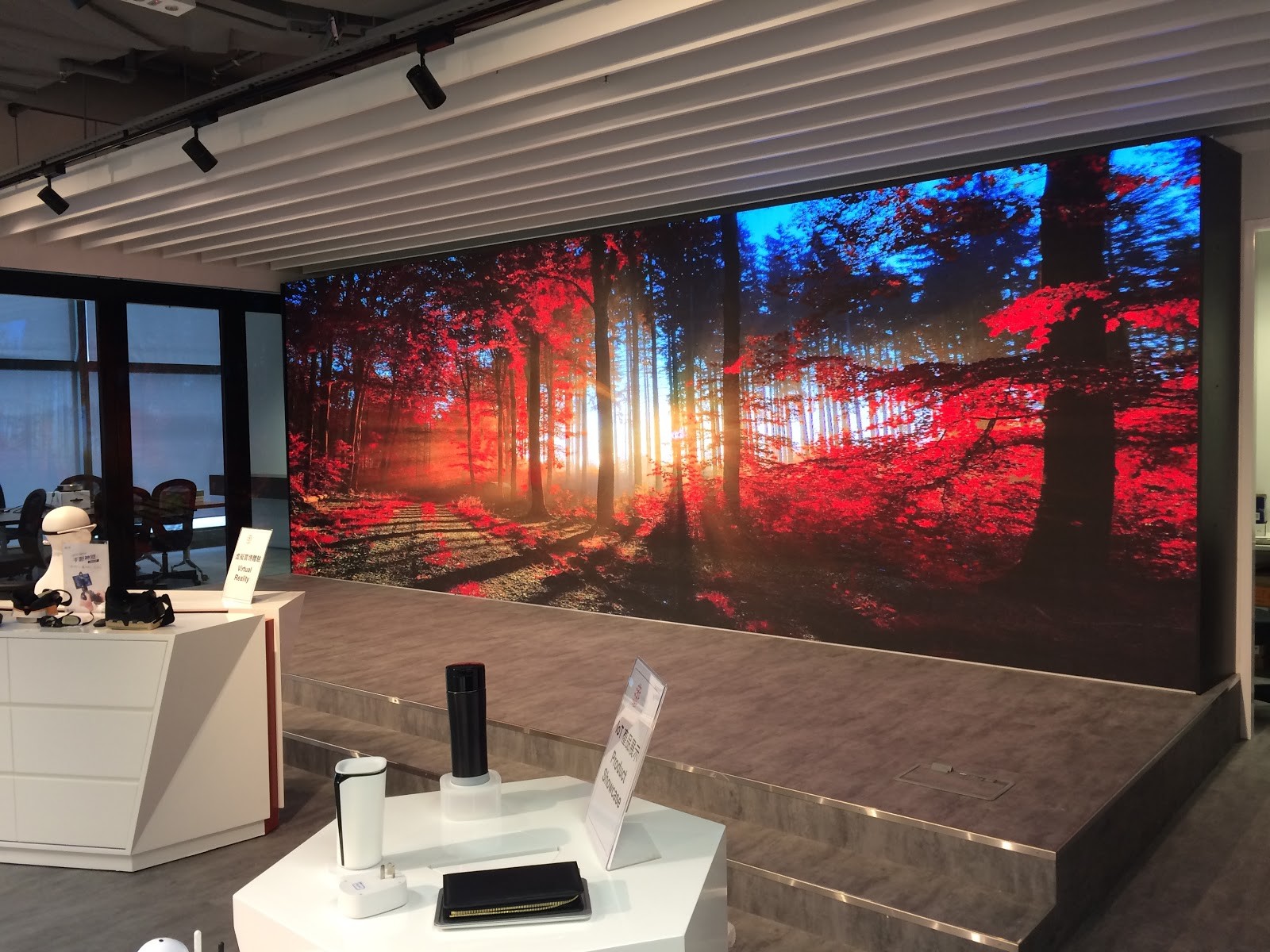

Business & Corporate Meeting Rooms, Conference Halls, Showrooms, Training Rooms
Entertainment & Media TV Studios, Broadcasting Rooms, Event Venues, Performance Stages
Hospitality & Public Spaces Hotels, Churches, Airports, Reception Areas
Retail & Commercial Shopping Malls, Retail Stores, Brand Showrooms, Advertising Spaces
Education & Institutions Schools, Universities, Lecture Halls, Exhibition Centers


Each application benefits from the technology’s:

Superior viewing comfort
Space-efficient designs
Enhanced content visibility

For specific examples, our tearn can provide tailored recommendations based on your space and content requirements.




FAQ :

1 . Are you a manufacturer or trading company ?
We are a professional OEM / ODM manufacturer which has specialized in led display industry for more

than 17 years .
2 . How does your factory do regarding quality control ?
Quality is priority .
At first , our factory use the best SMT machine is YAMAHA , and all product aging test 48 hours at least .

Our product approved CE / ROHS / FCC / CCC / ISO9001 / ISO140001 certificate .
3 . What is your MOQ ?
Any quantity is acceptable for your order . And the price is negotiable for large quantity .


Indoor Full Color Led Display Video Wall Panels 1R1G1B 281 Trillion
