Specifications
Cabinet Size :
Customized
Resolution :
172*86
Cabinet material :
Iron cabinet or diecasting aluminum cabinet
Brand Name :
Longda LED
Model Number :
Indoor P1 . 86
Certification :
CE / RoHs / FCC / CCC / ISO9001 / ISO14001
Place of Origin :
ShenZhen
MOQ :
1 Sqm
Price :
price is negotiable
Payment Terms :
L / C,T / T,Western Union
Supply Ability :
5000sqm per month
Delivery Time :
15 - 18 days
Packaging Details :
Flight case packing or Plywood case packing
Model :
Indoor P1 . 86 full color led display
Scan :
43s
Warranty :
3years
Refresh Rate :
3840Hz
Brightness :
600-800nits
Description


Extreme Slim Thickness P1.86 Led Cabinet Easy Installation For Museum Display



Introduction:

The P1.86 Indoor LED Display features a small pixel pitch, high resolution, vivid colors, and seamless image performance.

Its slim and lightweight cabinet makes transportation and installation easier.

It is an suitable choice for museums, conference rooms, exhibition halls, studios, and other indoor spaces requiring high-quality visual displays.



Specifications :


Type P1.86
Pitch 1.86mm
Series Flexible 320*160mm
Cabinet Type Customized
Access / Maintenance Front Maintenance
LED Model & Type SMD1515
LED Make Rayshine
Refresh 3840Hz
Brightness 600-800nits
Contrast 5000:1
Viewing Angle H 160°,V 160°
Control System NovaStar
Scan 43s
Density(dot/m²) 288906
Module Pixels (L*H) 172*86
Module Size (L*H)mm 320*160mm
Module Depth (mm) 7mm
Max Power (watts / m²) 423
Avg Power (watts/m²) 163
Certification 3C CE ROHS
Ingress Protection (IP) IP30
Grayscale ≥14bit
Control mode Synchronous control or Asynchronous control
Operation Temperature - 20 ℃ ~ + 45 ℃
Operation Humidity 10 % ~ 95 %
Life Span 100000h
Compatible Function Double power supply&receive card (One for use,one for back up)

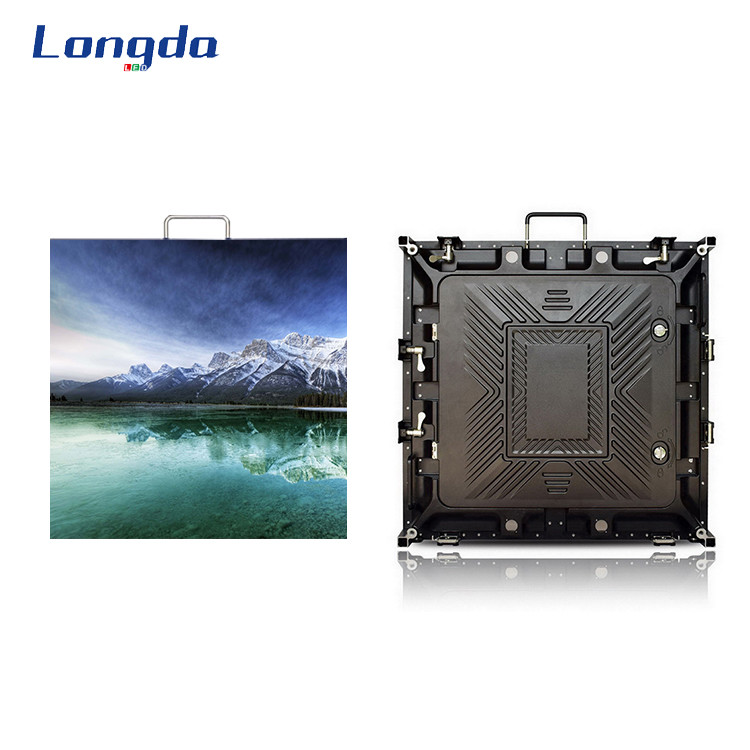

Extreme Slim Thickness  Indoor  Full Color Light Weight P1.86 Cabinet Easy Installation



Advantage:


1. Ultra-High definition Display Effect

With a 1.86mm pixel pitch, the screen delivers clear, detailed images and smooth text display, even when watched at a close distance.

It is perfect for displaying high-resolution pictures, videos, charts, and presentations.


2. Vivid Colors & High Color Reproduction

The P1.86 LED screen offers rich colors, high contrast, and smooth color transitions.

It reproduces images naturally and accurately, creating a realistic and immersive viewing experience.


3. Slim & Lightweight Cabinet

The slim, lightweight cabinet helps reduce transportation and installation effort.

Its compact design saves space and fits well into modern indoor environments.


4. Easy Installation & Maintenance

The modular structure supports convenient installation and maintenance.

It can be configured into different screen sizes to meet various project requirements.


Extreme Slim Thickness  Indoor  Full Color Light Weight P1.86 Cabinet Easy Installation




Application:

  • Museums & Exhibition Halls: Display artworks, historical content, and digital exhibits with fine details.
  • Conference Rooms: Present text, charts, videos, and meeting content clearly.
  • TV Studios & Media Centers: Deliver high-quality visuals for broadcasting and video production.

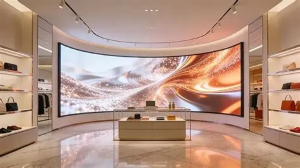

  • Shopping Malls & Showrooms: Showcase advertisements, brand videos, and product information.
  • Command Centers: Display detailed data, maps, and real-time information.
  • Hotels & Commercial Spaces: Create impressive visual displays for reception areas and event spaces.




FAQ :


1 . Is Longda Led a factory or simply a trading company ?
We are a TRUE OEM / ODM factory . Please read our COMPANY PROFILE , for more information on

this issue .


2 . What payment methods are available to me ?
We accept T / T , L / C and Western Union .


3 . What is your warranty and after-sale service ?
3 years warranty with lifetime free maintenance .

During 3 years , we will maintain and replace the defect components for free .

After 3 years warranty , we provide free maintenance but only charge for spare part only at cost price .
