Specifications
Cabinet material :
Iron cabinet or diecasting aluminum cabinet
Model :
Outdoor P5 full color led display
Cabinet Size :
960*960mm
Resolution :
64*32
Brand Name :
LONGDA LED
Model Number :
Outdoor P5
Certification :
CCC , ISO9001 , FCC , CE , ROHS , ISO14001
Place of Origin :
Shenzhen , China
MOQ :
1 Sqm
Price :
price is negotiable
Payment Terms :
L / C,T / T,Western Union
Supply Ability :
1000 Sqm / Month
Delivery Time :
15 ~ 18 days
Packaging Details :
Flight case packing or Plywood case packing
Scan :
8s
Warranty :
3years
Refresh Rate :
3840Hz adjustive
Brightness :
4000-8000nits adjustive
Description

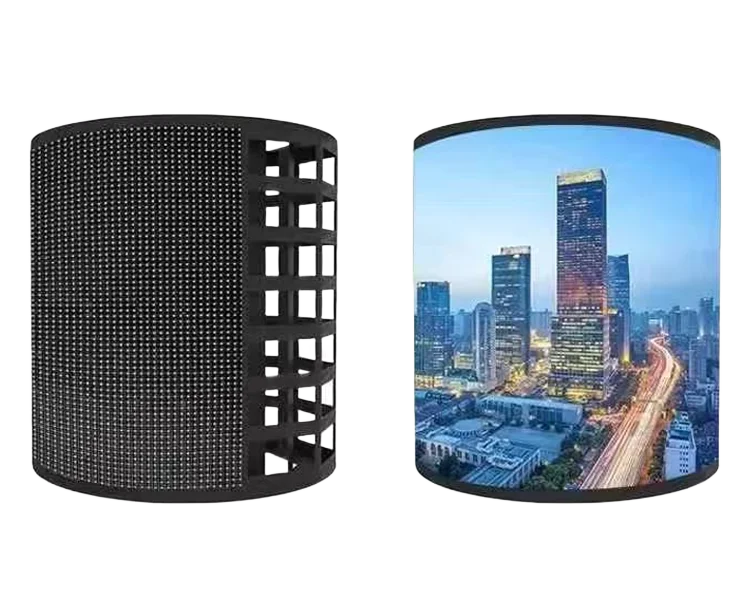

Full Color P5 1R1G1B Outdoor Curved LED Display Large Viewing Angle




Why Curved LED:
1.Superior Viewing Experience
Immersive visual field: Curved design matches natural eye curvature, reducing edge distortion for prolonged viewing comfort.
Wide viewing angles: Maintains <5% color/brightness variance at 178° (vs >15% with flat screens).
Better Brand Presentation: Custom radii create realistic depth for impactful advertising.
2.Flexible Installation
Space efficiency: Eliminates flat-screen blind zones in circular/irregular spaces.
3.Cost Efficiency
Energy saving: 20% lower power consumption than conventional LED displays.
Longevity: 50,000-hour lifespan (13+ years at 10h/day).


Full Color P5 1R1G1B Curved Led Display Outdoor Large Viewing Angle



Specifications:


Type P5
Pitch 5mm
Cabinet Type Outdoor Standard Waterproof Cabinet
Access / Maintenance Rear Maintenance
LED Model & Type 1921
LED Make Rayshine
Refresh 3840Hz adjustive
Brightness 4000-8000nits adjustive
Contrast 5000:1
Viewing Angle H 160°,V 160°
Control System NovaStar
Scan 8s
Density(dot/m²) 40000
Module Pixels (L*H) 64*32
Module Size (L*H)mm 320*160mm
Cabinet Resolution (dot) 36864
Cabinet Size (L*H)mm 960*960mm
Cabinet Depth (mm) 137
Single Cabinet weight (kg) 45KG
Max Power (watts / m²) 800
Avg Power (watts/m²) 240
Single Cabinet weight (kg) 45
Certification CCC , ISO9001 , FCC , CE , ROHS , ISO14001
Ingress Protection (IP) IP65 waterproof
Grayscale 14-16bit+
Control mode Synchronous control or Asynchronous control
Operation Temperature - 20 ℃ ~ + 45 ℃
Operation Humidity 10 % ~ 95 %
Life Span 100000h
Compatible Function Double power supply&receive card (One for use,one for back up)


Full Color P5 1R1G1B Curved Led Display Outdoor Large Viewing Angle


Full Color P5 1R1G1B Curved Led Display Outdoor Large Viewing Angle


Different Types of Curved LED Displays for Every Need:

We provide a variety of Curved LED Displays ensuring the best visual experience for any project.

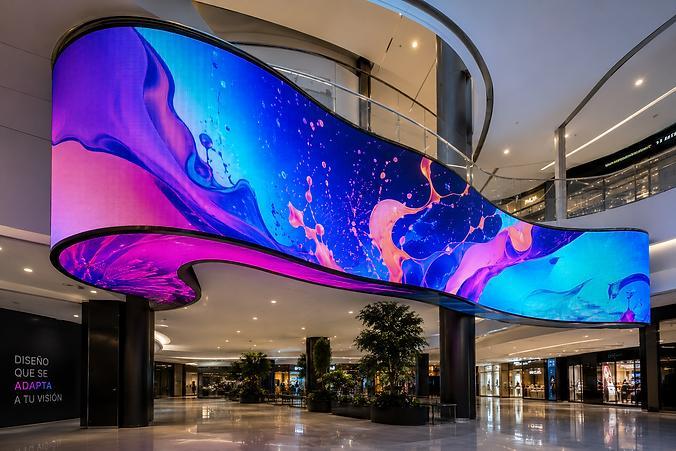

Curved LED Advertising Displays: Ideal for shopping malls, flagship stores, and airports – the curved design enhances visual impact and improves advertising effectiveness.

Curved LED Screen Rental: Temporary display solutions for exhibitions, product launches, and promotional events featuring quick installation/removal.

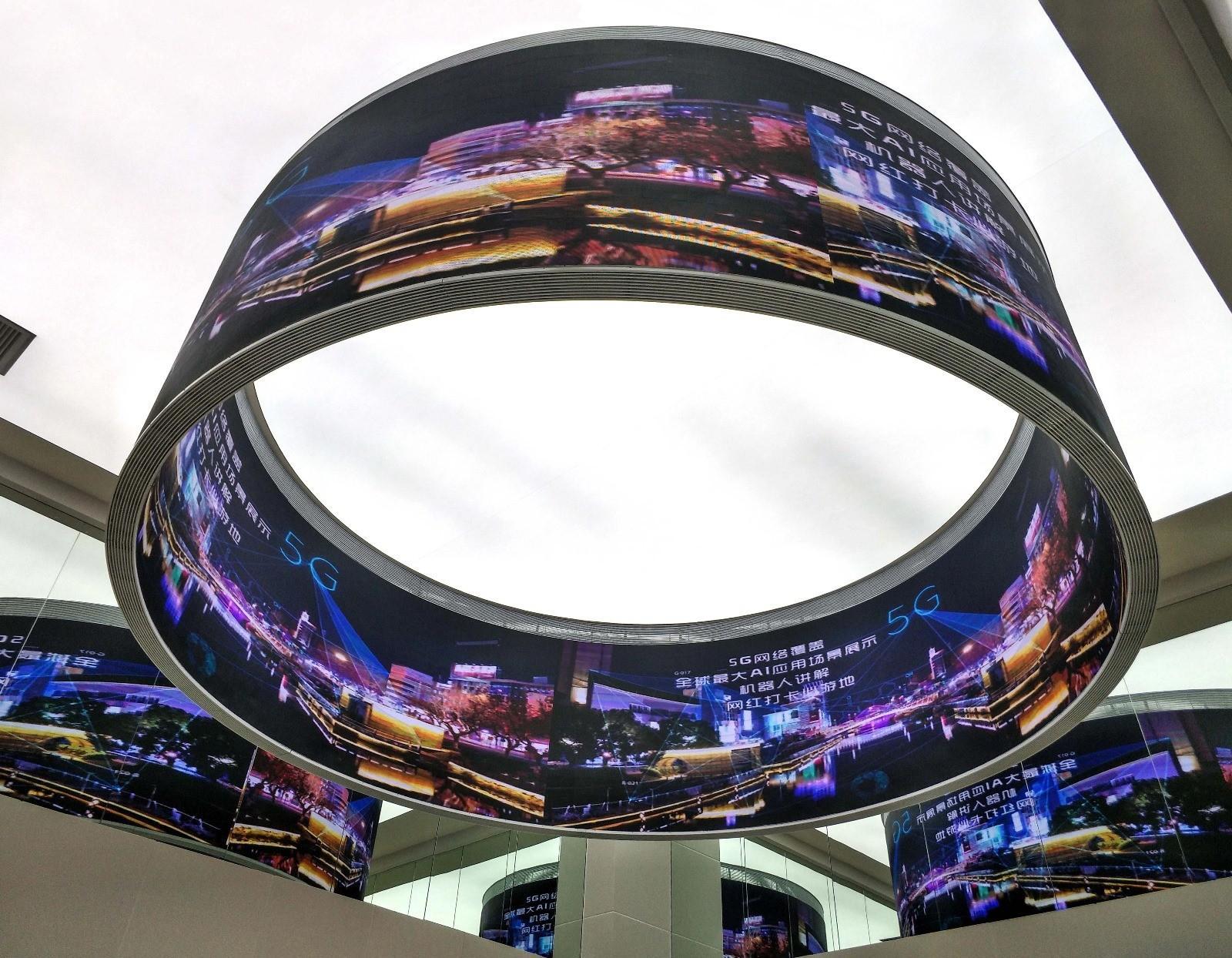

Curved LED Video Walls: Creates immersive backgrounds for concerts, stage performances and large-scale events to amplify audience engagement.

Outdoor Curved LED Screens: High-brightness, weatherproof displays for outdoor billboards, architectural facades and public square branding that withstand various climate conditions.

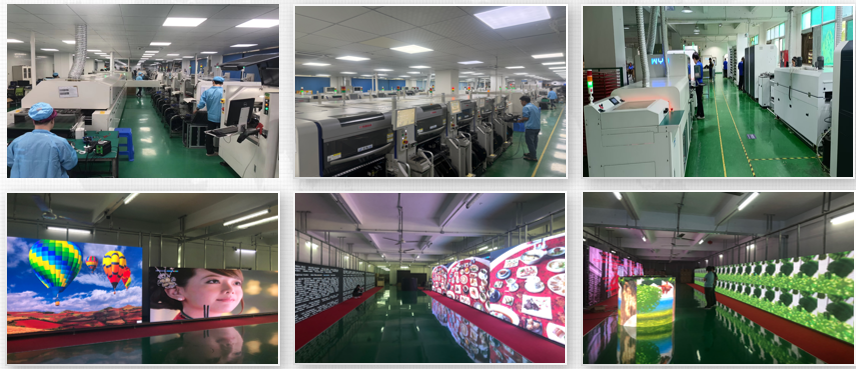

Quality and service

1 . Strict quality control :
The quality of our display is excellent.
We use the materials of high-quality suppliers in the world, strictly control the production process,
and pass the multiple quality inspections to ensure that every product is qualified.

2 . Quality guarantee :
All our LED display screens are more than 100,000 hours of life span.

3 . Long warranty :
3 years warranty, any quality problem during warranty time will be handled.

4 . Prompt & Professional service :
Any inquiries will be replied to within 24/7 hours and you'll get helpful suggestions from us.


Full Color P5 1R1G1B Curved Led Display Outdoor Large Viewing Angle
