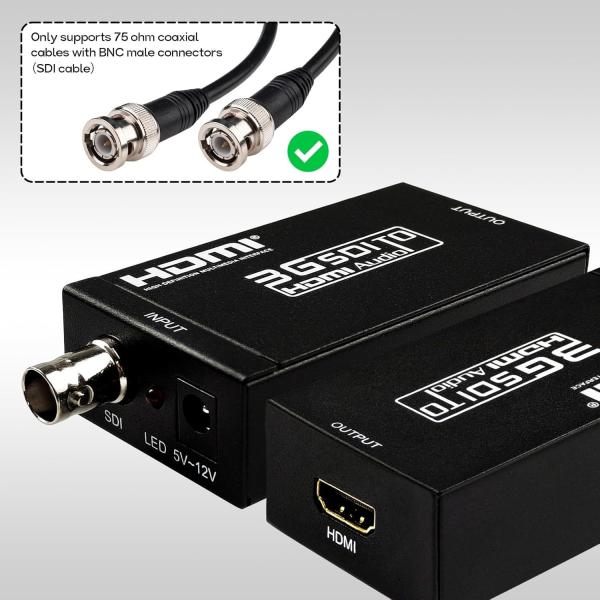

LN-S008 Small Size SDI To HDMI Converter HD/3G-SDI To 1080p HDMI With Audio
LN-S008 Small Size SDI To HDMI Converter HD/3G-SDI To 1080p HDMI With Audio
LN-S008 Small Size SDI To HDMI Converter HD/3G-SDI To 1080p HDMI With Audio
LN-S008 Small Size SDI To HDMI Converter HD/3G-SDI To 1080p HDMI With Audio
LN-S008 Small Size SDI To HDMI Converter HD/3G-SDI To 1080p HDMI With Audio
LN-S008 Small Size SDI To HDMI Converter HD/3G-SDI To 1080p HDMI With Audio
Specifications
Brand Name :
Lntech
Model Number :
LN-S008
Certification :
CE ISO
Place of Origin :
China
MOQ :
1
Price :
$23
Payment Terms :
T/T
Supply Ability :
2500
Delivery Time :
7-15 working days
Packaging Details :
Carton
HD/3G-SDI Input :
Connects to cameras, switchers, SDI video sources.
1080p HDMI Output :
High-quality video for modern displays and recorders.
Audio De-embedding :
No separate audio cables needed - sound comes through HDMI.
Auto-Resolution Detection :
Sets the best output resolution automatically.
Compact & Rugged :
Small size fits anywhere, metal housing for durability.
Description
LN-S008 SDI to HDMI Converter: Seamless Professional Video Conversion

Transform your SDI sources for HDMI displays instantly! The Lntech LN-S008 SDI to HDMI Converter is your simple, reliable solution for integrating professional video equipment with modern monitors, projectors, and recording devices. This compact converter seamlessly takes HD-SDI or 3G-SDI signals, including embedded audio, and converts them to a standard HDMI output. Enjoy crystal-clear 1080p@60Hz video and synchronized audio without complex setup or software. Perfect for broadcast environments, editing suites, live events, and any professional AV application requiring SDI to HDMI conversion.

Quick Overview: Why Choose the LN-S008?
  • Converts HD-SDI & 3G-SDI to HDMI
  • Outputs Full HD 1080p @ 60Hz
  • Embeds SDI audio into HDMI automatically
  • Works Instantly - Plug and Play
  • Built for Reliability in professional use
Key Benefits at a Glance:
Feature Benefit
HD/3G-SDI Input Connects to cameras, switchers, SDI video sources.
1080p HDMI Output High-quality video for modern displays and recorders.
Audio De-embedding No separate audio cables needed - sound comes through HDMI.
Auto-Resolution Detection Sets the best output resolution automatically.
Compact & Rugged Small size fits anywhere, metal housing for durability.
Complete Technical Specifications:
Parameter Specification
Model LN-S008
Video Input 1 x BNC (HD-SDI, 3G-SDI)
Video Output 1 x HDMI (1080p@60Hz Max)
Supported Standards SMPTE 292M, SMPTE 424M, SMPTE 425M
Supported Resolutions 1080p60/59.94/50/30/29.97/25/24/23.98, 1080i, 720p
Audio Embeds SDI audio to HDMI
Power Supply DC 5V/1A (Adapter Included)
Power Consumption < 5W
Operating Temperature 0°C to +40°C
Operating Humidity 20% to 90% RH (non-condensing)
Dimensions (LxWxH) 97mm x 55mm x 23mm
Weight ~130g
What's in the Box?
  • 1x LN-S008 SDI to HDMI Converter Unit
  • 1x Power Adapter (100-240V AC to DC 5V/1A)
  • 1x User Manual
How to Use It (Simple Setup):
  1. Connect your SDI source (camera, etc.) to the SDI IN port.
  2. Connect an HDMI cable from the HDMI OUT port to your display/recorder.
  3. Plug in the provided 5V power adapter.
  4. Power on your devices - It should work automatically!

Ideal For: Broadcasting, Live Streaming, Video Conferencing, Post-Production, Medical Imaging, Security Systems.
