Specifications
Brand Name :
Lntech
Model Number :
LN-M008
Certification :
CE ISO
Place of Origin :
China
MOQ :
1
Price :
$28
Payment Terms :
T/T
Supply Ability :
2500
Delivery Time :
7-15 working days
Packaging Details :
Carton
Input Interface :
BNC (3G-SDI/HD-SDI)
Output Configuration :
Dual HDMI + SDI Loop-Out
Signal Processing :
2.97 Gbps bitrate maintenance
Compliance Standards :
SMPTE 425M, 424M, 292M, 259M-C
Power System :
USB 5V DC
Physical Design :
97×55×23mm compact enclosure
Description
SDI to HDMI+SDI Converter Technical Overview
Professional Signal Conversion with Broadcast Compliance and Monitoring Capabilities

The SDI to HDMI+SDI Converter is engineered for professional video applications requiring reliable signal conversion between SDI and HDMI formats. This device accepts 3G-SDI or HD-SDI input via BNC connection and provides dual HDMI outputs plus an SDI loop-through output for simultaneous monitoring and signal distribution. Operating at 2.97 Gbps maximum bitrate, the converter maintains full signal integrity while supporting resolutions up to 1080p. Compliant with SMPTE 425M, 424M, 292M, and 259M-C standards, this converter is suitable for broadcast, live production, and professional AV integration applications.

Core Technical Architecture
Component Specification Professional Application
Input Interface BNC (3G-SDI/HD-SDI) Professional video equipment connection
Output Configuration Dual HDMI + SDI Loop-Out Simultaneous monitoring and distribution
Signal Processing 2.97 Gbps bitrate maintenance Zero quality loss conversion
Compliance Standards SMPTE 425M, 424M, 292M, 259M-C Broadcast industry compliance
Power System USB 5V DC Universal power compatibility
Physical Design 97×55×23mm compact enclosure Rack and field deployment
In-Depth Technical Analysis

1. Signal Processing Performance

  • Bitrate Maintenance: Full 2.97 Gbps processing without compression or quality loss
  • Real-time Conversion: No frame delay or processing latency
  • Signal Regeneration: Clean output signal with proper reclocking

2. Interface Capabilities

  • Input: Single BNC supporting 3G-SDI and HD-SDI signals
  • HDMI Outputs: Dual outputs for simultaneous display connection
  • SDI Loop-Out: Unprocessed signal pass-through for downstream equipment
  • Simultaneous Operation: All outputs active with independent signal processing

3. Standards Compliance

  • SMPTE 425M: 3G-SDI Level A/B (1080p50/59.94/60)
  • SMPTE 424M: 3G-SDI fundamental standards
  • SMPTE 292M: HD-SDI (1.485 Gbps)
  • SMPTE 259M-C: SD-SDI compatibility

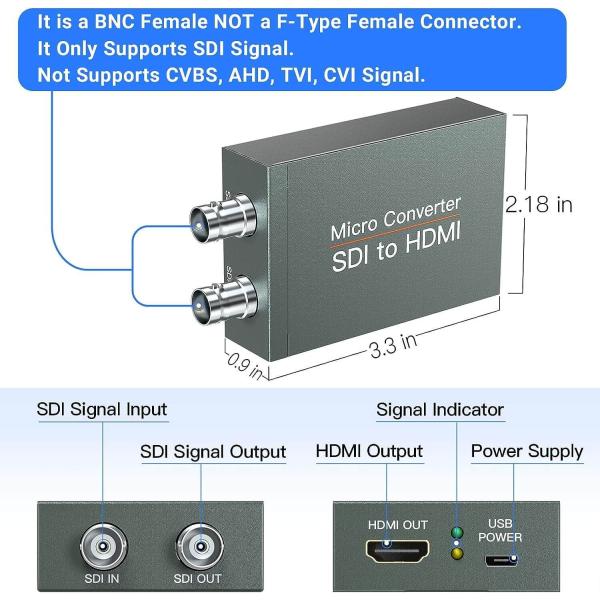

4. Physical Design Features

  • Compact Enclosure: 97×55×23mm for space-efficient installation
  • ESD Protection: ±8kV air gap/±4kV contact discharge protection
  • LED Indicators: Power and signal lock status monitoring
  • Universal Power: 5V DC via USB for flexible power options
Detailed Technical Specifications Table
Category Parameter Detail
Interfaces Input 1 × BNC (3G-SDI/HD-SDI)
Outputs 2 × HDMI, 1 × SDI Loop-Out BNC
Signal Max Bitrate 2.97 Gbps
Supported Resolutions 720p, 1080i, 1080p
Compliance SMPTE 425M, 424M, 292M, 259M-C
Electrical Power Supply DC 5V via USB
Power Consumption 5W (maximum)
ESD Protection ±8kV (air), ±4kV (contact)
Physical Dimensions 97mm × 55mm × 23mm
Weight 130 grams
Enclosure Metal construction
Environmental Operating Temperature 0°C to 40°C
Storage Temperature -20°C to 60°C
Humidity 20% to 90% RH (non-condensing)
