IMX307 2MP Bullet Camera Outdoor Bullet Camera 6-In-1 Output, IP67 Lntech LN-801
IMX307 2MP Bullet Camera Outdoor Bullet Camera 6-In-1 Output, IP67 Lntech LN-801
IMX307 2MP Bullet Camera Outdoor Bullet Camera 6-In-1 Output, IP67 Lntech LN-801
IMX307 2MP Bullet Camera Outdoor Bullet Camera 6-In-1 Output, IP67 Lntech LN-801
Specifications
Brand Name :
Lntech
Model Number :
LN-801-2971T
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
2500
Delivery Time :
7-15 working days
Packaging Details :
Carton
Imaging Core :
1/2.8" Sony IMX307 CMOS (2.0MP)
Signal Processing :
6-in-1 HD Chipset
Output Protocol :
AHD / TVI / CVI / CVBS / EX-SDI (Selectable)
Resolution & Speed :
1080p30, Progressive Scan
Sensitivity :
0.00017Lux (Color, DSS ON)
IR Illumination :
60 meters
Dynamic Range :
Digital WDR: Up to 120dB
Environmental Rating :
IP67
Operating Temperature :
-20°C ~ +60°C
Description

Technical specifications for the LN-801 bullet camera. Sony IMX307 2MP sensor, 1080p30, 6-in-1 output (AHD/TVI/CVI/CVBS/EX-SDI). Features 60m IR, 120dB WDR, IP67, -20°C~+60°C. For professional integration.

LN-801 (IMX307) Technical Overview
2MP Outdoor Bullet Camera with 6-in-1 Output and IP67 Rating

The Lntech LN-801 is a high-performance outdoor bullet camera designed for professional surveillance applications. It utilizes a Sony IMX307 STARVIS™ 1/2.8-inch CMOS sensor to deliver 2MP (1080p) resolution at 30 frames per second. Its defining characteristic is support for five video output protocols (AHD, TVI, CVI, CVBS, EX-SDI), selectable via dip-switch. Engineered for reliability, it features an IP67-rated housing, 60-meter IR illumination, advanced 120dB WDR, and operates within a -20°C to +60°C temperature range.

In-Depth Technical Analysis
1. Multi-Format Output & System Integration

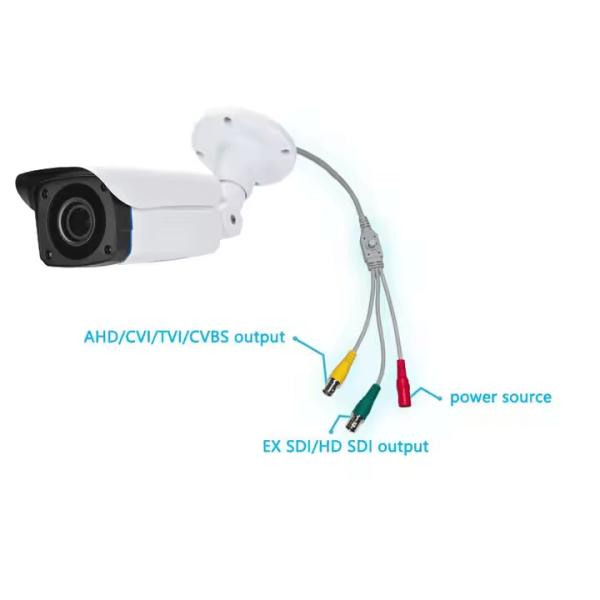

The LN-801's configurable video output is its primary integration advantage. The desired analog HD format (AHD, TVI, CVI) or standard definition (CVBS) is selected via a cable dip-switch. The EX-SDI option provides a digital output for high-quality, uncompressed signal transmission over longer distances (up to 500m with 75-3 cable).

2. Optical & Sensor Performance

  • Sony IMX307 Sensor: A 1/2.8-inch back-illuminated (Starvis) CMOS sensor optimized for exceptional low-light performance, achieving 0.00017Lux sensitivity with DSS technology.

  • IR Performance: Integrated high-efficiency IR LEDs provide illumination up to 60 meters. Smart IR technology prevents over-exposure of close-range objects.

  • Lens Compatibility: Supports motorized varifocal lenses (e.g., 2.8-12mm), allowing for adjustable field of view and focus, often controllable via OSD.

3. Image Processing & Enhancement

  • Wide Dynamic Range (120dB): Leverages multi-exposure processing to resolve critical detail in both extreme highlights and shadows within the same frame.

  • Defog Algorithm: Applies digital image processing to reduce the atmospheric scattering effects of fog, haze, and light rain, improving contrast and clarity.

  • 3D Digital Noise Reduction (3D-DNR): Combines temporal and spatial noise reduction to significantly suppress noise in low-light conditions, resulting in a cleaner image.

4. Build & Environmental Specifications

  • Housing: IP67-rated metal casing ensures complete protection against dust ingress and water immersion up to 1 meter for 30 minutes.

  • Durability: Built to operate in a wide temperature range (-20°C to +60°C). Includes a built-in heater for reliable cold-weather startup and operation.

  • Installation: Standard mounting bracket allows for easy wall or ceiling installation and precise aiming.

Detailed Technical Specifications Table
Category Parameter Detail
General Model LN-801
Image Sensor 1/2.8" Sony IMX307 CMOS
Effective Pixels 2.0 Megapixel (1920H x 1080V)
Scan System Progressive
Video Max Resolution 1920 x 1080 (1080P)
Frame Rate 30fps (1080P)
Video Output AHD / TVI / CVI / CVBS / EX-SDI (Switchable)
S/N Ratio >52 dB (AGC OFF)
Video Compression H.264
Low Light Min. Illumination Color: 0.00017Lux (DSS ON); B/W: 0.0008Lux
IR Distance 60 meters
Day/Night Auto (ICR), Color, B/W
Sens-Up Off, x2, x4, x8, x16, x32
Image Features WDR 120dB (Off / Low / Mid / High)
DEFOG Electronic (Off / Low / Mid / High)
DNR 3D-DNR (Off / Low / Mid / High)
Privacy Mask Up to 16 zones
Lens Type Motorized Varifocal (e.g., 2.8-12mm)
Control Auto/Manual Focus & Zoom via OSD
Physical Weather Rating IP67
Housing Material Metal
Power Supply DC 12V (±10%)
Power Consumption < 1.6W
Operating Temp. -20°C ~ +60°C
Dimensions 280mm(L)100mm(W)120mm(H)
