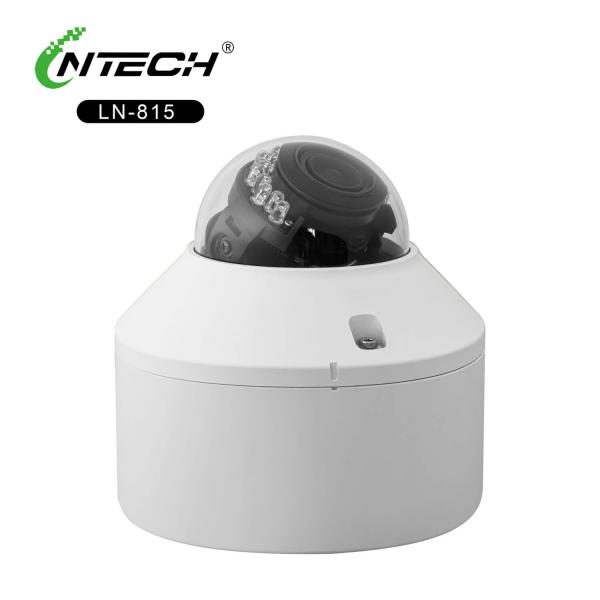

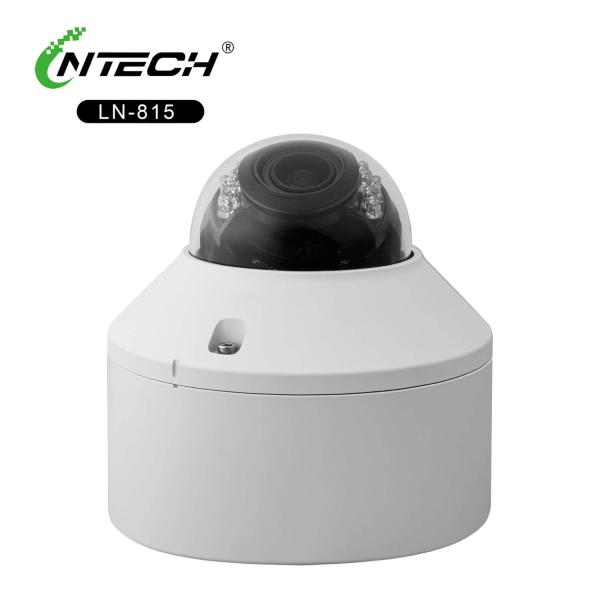

LN-815 5MP Starlight Camera Starlight Surveillance Cameras IP66 Weatherproof
LN-815 5MP Starlight Camera Starlight Surveillance Cameras IP66 Weatherproof
LN-815 5MP Starlight Camera Starlight Surveillance Cameras IP66 Weatherproof
LN-815 5MP Starlight Camera Starlight Surveillance Cameras IP66 Weatherproof
LN-815 5MP Starlight Camera Starlight Surveillance Cameras IP66 Weatherproof
LN-815 5MP Starlight Camera Starlight Surveillance Cameras IP66 Weatherproof
Specifications
Brand Name :
Lntech
Model Number :
LN-815
Certification :
CE ISO
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
2500
Delivery Time :
7-15 working days
Packaging Details :
Carton
Imaging :
- 5MP Sony CMOS Sensor - True WDR (120dB) - 0.01Lux Low Light
Output :
- 6-in-1: TVI/AHD/CVI/CVBS/EX-SDI/EX-HD-SDI - 5MP@25/30fps
IR :
- 50m Night Vision - 24pcs SMD LEDs
Design :
- IP66 Weatherproof - 3-Axis Mounting
Description

LN-815 5MP Starlight Camera

Model: LN-815 | Sensor: 1/2.8" Sony CMOS | Resolution: 5MP | Output: 6-in-1 | IR: 50m | Version: V1.0

A high-resolution starlight camera with 6-in-1 video output, true WDR, and 50m IR range, designed for outdoor surveillance.

1.0 Key Features at a Glance

Section Key Attributes
Imaging - 5MP Sony CMOS Sensor
- True WDR (120dB)
- 0.01Lux Low Light
Output - 6-in-1: TVI/AHD/CVI/CVBS/EX-SDI/EX-HD-SDI
- 5MP@25/30fps
IR - 50m Night Vision
- 24pcs SMD LEDs
Design - IP66 Weatherproof
- 3-Axis Mounting

2.0 Detailed Product Information

2.1 Description

The LN-815 is a professional 5MP starlight camera equipped with a Sony CMOS sensor and support for six video output formats. It offers exceptional performance in low-light and challenging lighting conditions, making it suitable for 24/7 outdoor surveillance.

2.2 Applications

  • Perimeter security and outdoor monitoring

  • Parking lots and public space surveillance

  • Industrial and construction site security

  • Traffic and license plate recognition

  • OEM and system integration projects

2.3 Output Options

The camera supports:

  • EX-SDI/EX-HD-SDI for digital HD video

  • TVI/AHD/CVI for HD analog systems

  • CVBS for analog backup

2.4 Physical Installation

  • Housing: IP66 metal casing

  • Mounting: 3-axis adjustable bracket

  • Power: DC 12V

  • Operating Temperature: -10°C to +50°C

3.0 Comprehensive Specification Table

Group Parameter Specification
General Model LN-815
Sensor 1/2.8" Sony CMOS
Resolution 5MP (2592*1944)
Optical Lens 2.8–12mm Manual Zoom
IR Distance 50m
Day/Night ICR Auto
Video Output 6-in-1 (TVI/AHD/CVI/CVBS/EX-SDI/EX-HD-SDI)
Frame Rate 5MP@25/30fps
Image Min. Illumination 0.01Lux
WDR 120dB True WDR
DNR 3D-DNR
Digital Zoom 8x
Electrical Power DC 12V
S/N Ratio ≥62dB
Environmental Protection IP66
Operating Temp -10°C to +50°C
