256 Unit Capacity Automatic Poultry Farming Equipment with Hot-DIP Galvanized Steel and Automatic Feeding System
256 Unit Capacity Automatic Poultry Farming Equipment with Hot-DIP Galvanized Steel and Automatic Feeding System
256 Unit Capacity Automatic Poultry Farming Equipment with Hot-DIP Galvanized Steel and Automatic Feeding System
256 Unit Capacity Automatic Poultry Farming Equipment with Hot-DIP Galvanized Steel and Automatic Feeding System
256 Unit Capacity Automatic Poultry Farming Equipment with Hot-DIP Galvanized Steel and Automatic Feeding System
256 Unit Capacity Automatic Poultry Farming Equipment with Hot-DIP Galvanized Steel and Automatic Feeding System
256 Unit Capacity Automatic Poultry Farming Equipment with Hot-DIP Galvanized Steel and Automatic Feeding System
256 Unit Capacity Automatic Poultry Farming Equipment with Hot-DIP Galvanized Steel and Automatic Feeding System
256 Unit Capacity Automatic Poultry Farming Equipment with Hot-DIP Galvanized Steel and Automatic Feeding System
256 Unit Capacity Automatic Poultry Farming Equipment with Hot-DIP Galvanized Steel and Automatic Feeding System
Specifications
Model Number :
KXD-SSW1059
Beam :
H Section Steel
Structural Frame :
Steel Column, Steel Beam, Steel Truss
Payment Terms :
T/T
Unit Capacity :
256
Web Plate Thickness :
6-32mm
Price :
US$50.00-100.00
Wire Mesh Material :
Aluminum-zinc coated welded wire
Supply Ability :
5000ton/Month
Cell Capacity :
8 hens per cell
Raising Area :
364cm² per cell
Floor Material :
Concrete or Steel Mesh
MOQ :
200 Square Meters (MOQ)
Delivery Time :
30days
Feed Delivery :
Auger system
Application :
Broiler and Layer Chicken
Connect :
bolted
Place of Origin :
Place of Origin Qingdao
Standard :
ASTM, DIN, GB, JIS
Packaging Details :
pallet
Hs Code :
9406900090
Certification :
ISO, SGS, CE, BV
Brand Name :
KXD-SSW1059
Auger Type :
Spiral auger
Column :
H Section Steel
Manure Removal :
Automatic scraper/chain plate type
Description
Approved Automatic Chicken Poultry Farming Equipment for Feeding and Drinking System
Complete automated poultry farming solutions designed for efficient feeding and drinking systems in modern chicken houses and coops.
Poultry Farm Equipment Types
Floor Type Automatic Poultry Farm Equipment Battery Cage Automatic Poultry Farm Equipment
  • Main feed line of silo
  • Pan feeding line system
  • Nipple drinking line system
  • Ventilation system
  • Cooling pad system
  • Climate and power controller system
  • Fogger spraying and disinfection system
  • Heater
  • Lighting
  • Curtain for two side walls of open type chicken house
  • Slat floor system (optional)
  • Main feed line of silo
  • Cage system with nipple drinker line and pan feeder line or feed trough
  • Ventilation system
  • Cooling pad system
  • Climate and power controller system
  • Fogger spraying and disinfection system
  • Heater
  • Lighting
  • Curtain for two side walls of open type chicken house

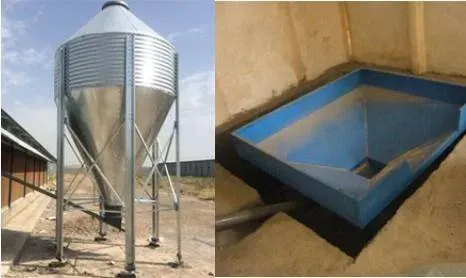

1. Main Feeding Line System
256 Unit Capacity Automatic Poultry Farming Equipment with Hot-DIP Galvanized Steel and Automatic Feeding System
Function: This system conveys feed from silo and manpower hopper into each feeding line hopper.
Options: A) Feed Silo | B) Manpower hopper
Drive Motor Specifications:
  • Power: 0.75KW
  • Voltage: 380V
  • Frequency: 50HZ
  • Three-phase AC current

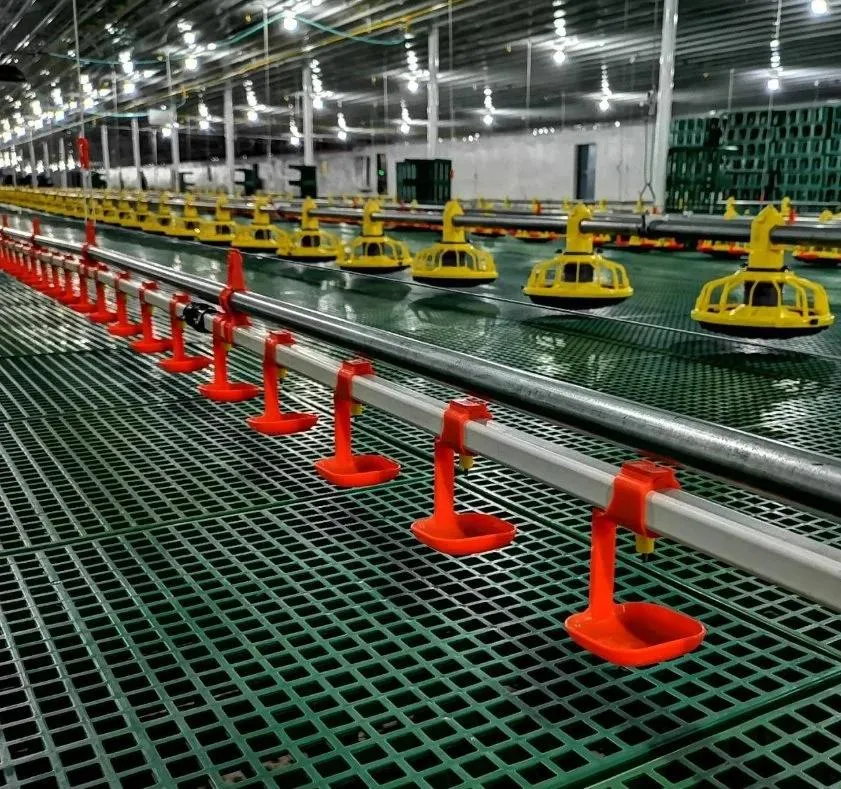

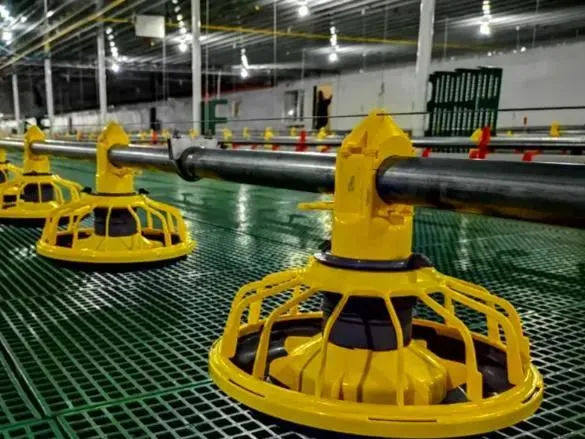

2. Automatic Pan Feeding Line System
256 Unit Capacity Automatic Poultry Farming Equipment with Hot-DIP Galvanized Steel and Automatic Feeding System
Automatic pan feeding system consists of driving device, hopper, conveying pipe, auger, suspension lifting device, anti-perching device and feed sensor.
  • High-quality special driving reduction motor: Power: 0.75kw, Voltage: 380V, Frequency: 50HZ, Three-phase
  • V-shaped Hopper: Bin Volume: 115L, Hopper volume: 38L, Material: Hot-DIP galvanized sheet
  • Feeding Pipe: Diameter: Φ 45mm, Material: Hot-DIP galvanized steel pipe
  • Feeding pan: New PP material with more than 6 type feeder pan
3. Automatic Nipple Drinking System
256 Unit Capacity Automatic Poultry Farming Equipment with Hot-DIP Galvanized Steel and Automatic Feeding System
Function: Provides clean and fresh water to broiler chickens steadily. Water dispenses when birds touch nipples.
Specifications:
  • Water line front system: Controls water supply, adjusts pressure and stabilizes drinking volume
  • Pressure regulator: Good regulating stability, high switching performance, sufficient water supply
  • Nipple drinker lines: Plasson type, Big herdsman type, Lubing type nipple drinking systems

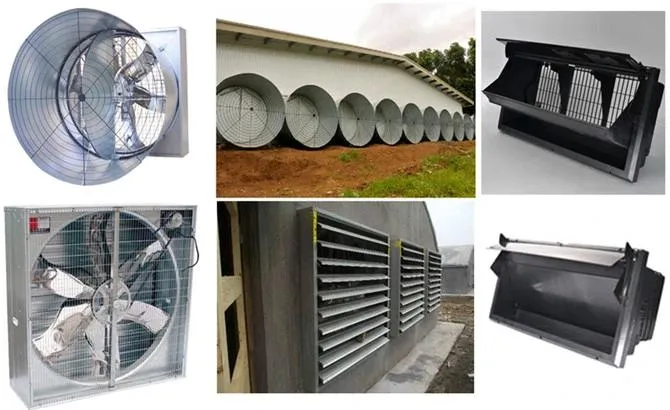

4. Ventilation System
256 Unit Capacity Automatic Poultry Farming Equipment with Hot-DIP Galvanized Steel and Automatic Feeding System
Function: Controls poultry house inner environment, provides fresh air and proper humidity for maximum production.
Main Components:
  • 54-inch fiber glass cone fan
  • 50-inch butterfly cone fan
  • 50-inch exhaust fan
  • 36-inch exhaust fan
  • Air inlet

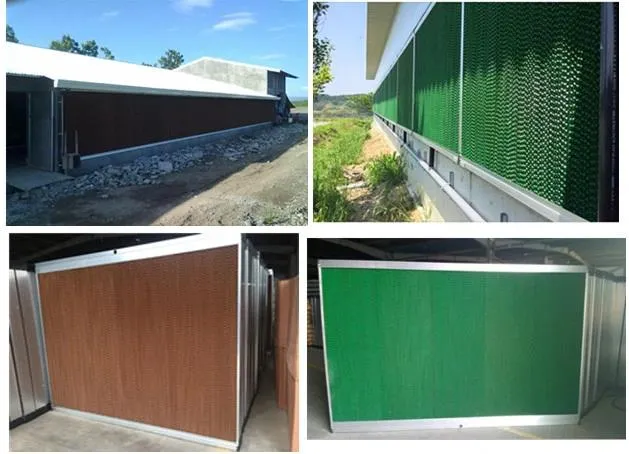

5. Cooling Pad System
256 Unit Capacity Automatic Poultry Farming Equipment with Hot-DIP Galvanized Steel and Automatic Feeding System
Customizable Specifications:
  • Length × Width × Thickness: Customizable
  • Frame Materials: Galvanized Steel, Aluminium Alloy, Stainless Steel
  • Colors: Brown, Brown & Green, Green, Black

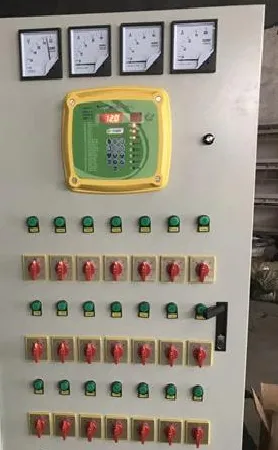

6. Environment Control System
256 Unit Capacity Automatic Poultry Farming Equipment with Hot-DIP Galvanized Steel and Automatic Feeding System
Function: Sets suitable modes according to different stage bird requirements for temperature and humidity through automatic control of ventilation fans, cooling pads, heaters and air inlets.
Components:
  • Environment controller
  • New design control box
  • Chick scale system and silo weighing system
7. Heating System
256 Unit Capacity Automatic Poultry Farming Equipment with Hot-DIP Galvanized Steel and Automatic Feeding System
Special heat preservation design ensures lowest heat loss with 80%-90% heat efficiency. Features fast warming, small volume, easy setting, high reliability and low price.
Optional Heaters:
  • Gas space heater
  • Gas brooder
  • Diesel/Coal heater
  • Electric heater
