Hot-Dip Galvanized Battery Chicken Cage with Automatic Feeding System and Customizable Dimensions
Hot-Dip Galvanized Battery Chicken Cage with Automatic Feeding System and Customizable Dimensions
Hot-Dip Galvanized Battery Chicken Cage with Automatic Feeding System and Customizable Dimensions
Hot-Dip Galvanized Battery Chicken Cage with Automatic Feeding System and Customizable Dimensions
Hot-Dip Galvanized Battery Chicken Cage with Automatic Feeding System and Customizable Dimensions
Hot-Dip Galvanized Battery Chicken Cage with Automatic Feeding System and Customizable Dimensions
Hot-Dip Galvanized Battery Chicken Cage with Automatic Feeding System and Customizable Dimensions
Hot-Dip Galvanized Battery Chicken Cage with Automatic Feeding System and Customizable Dimensions
Hot-Dip Galvanized Battery Chicken Cage with Automatic Feeding System and Customizable Dimensions
Hot-Dip Galvanized Battery Chicken Cage with Automatic Feeding System and Customizable Dimensions
Hot-Dip Galvanized Battery Chicken Cage with Automatic Feeding System and Customizable Dimensions
Hot-Dip Galvanized Battery Chicken Cage with Automatic Feeding System and Customizable Dimensions
Specifications
Delivery Time :
25 days
Model Number :
KXD-SS7
Ventilation :
Adjustable Vents
MOQ :
500 sqm
Packaging Details :
steel pallet
Colors :
Custom as Demands
Supply Ability :
500000 tons/month
Cell Capacity :
8 hens per cell
Price :
USD 20,000.00-100,000.00
Window :
Aluminum
Certification :
ISO/CE/SGS
Dimensions :
Customizable
Brand Name :
KXD
Cage Size :
180×60×45cm (customizable)
Place of Origin :
Qingdao，China
Roof Material :
Steel Cladding Sheet, Sandwich Panel
Description

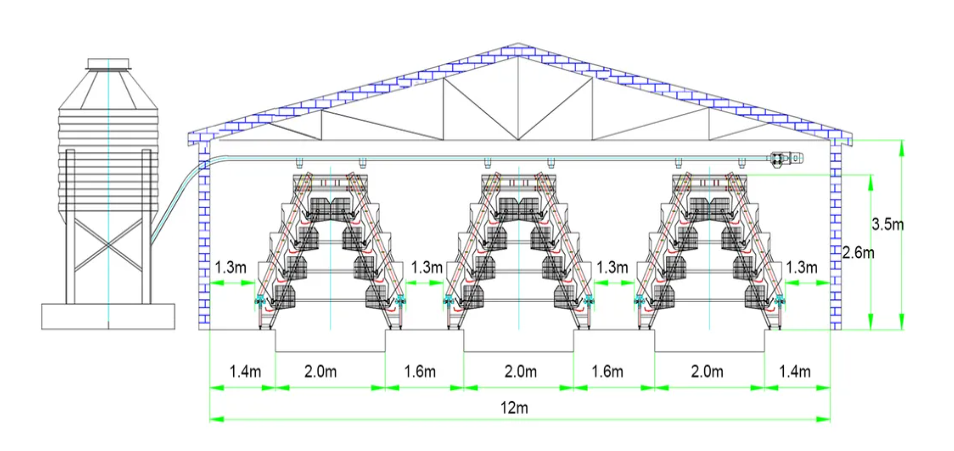

Multi Tiers Battery Cage Automatic H Type Battery Chicken Layer Cage
Advanced automated egg laying chicken cage system designed for efficient poultry farming operations with comprehensive features for manure management, feeding, and drinking water systems.
Cage System Features
  • Main frame constructed with zinc-free hot galvanized sheet with 275g/m² galvanized layer thickness
  • Cage wire features complete hot dip galvanizing process after welding for long service life
  • Innovative chicken side longitudinal connection with turn-over design prevents leakage and facilitates washing
  • Thread clamp design on adjusting plate prevents loss and improves operational efficiency
  • One side sealing injection molding pad net with baffle plate installation ensures chicken comfort and prevents leakage
Hot-Dip Galvanized Battery Chicken Cage with Automatic Feeding System and Customizable Dimensions
Manure Management System
  • Longitudinal manure belt uses 1.0mm thick PP belt with smooth surface and high strength for clean feces removal
  • Horizontal stool cleaning frame features complete hot-dip galvanized treatment
  • PVC conveyor belt with seamless welding design and whole ring installation ensures durability and performance
Feeding System
  • Seeder type feeder with hot-dip galvanized sheet metal frame for corrosion resistance
  • Retractable homogenizer design overcomes uneven blanking caused by ground variations
  • Planter wheel with anti-pressure feet and anti-derailment electrical design for safety
  • Integrated circuit board control box with stop automatic correction function
  • Multiple feeding modes: manual, remote control, and timing automatic feeding with positioning capabilities

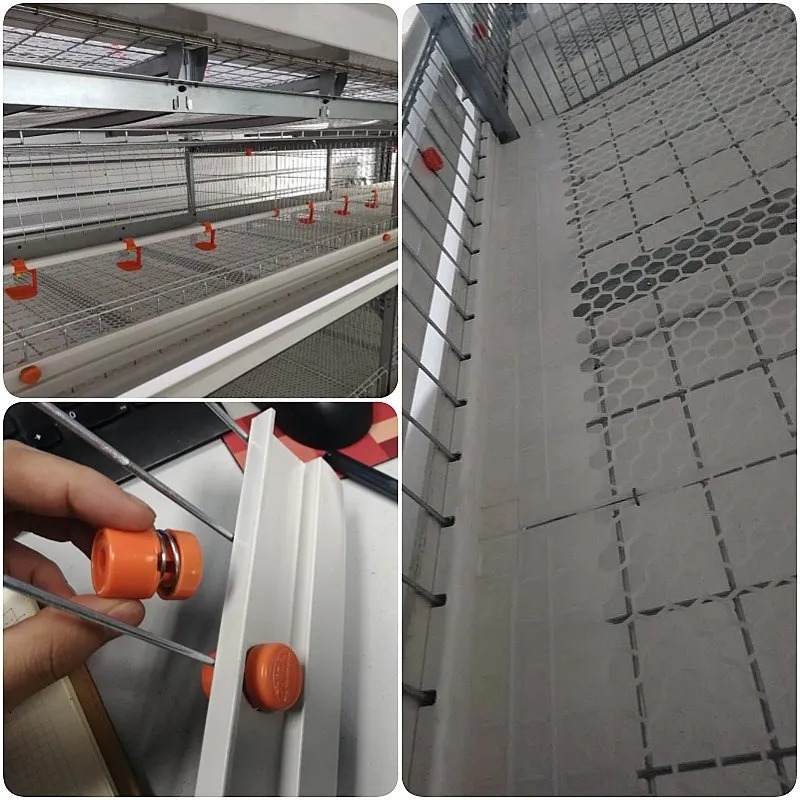

Drinking Water System
  • Fully upgraded automatic control system for reliable operation
  • Prevents leakage and reduces labor requirements
  • 360° side hit drinking nipple design with water drops hanging beads to stimulate drinking

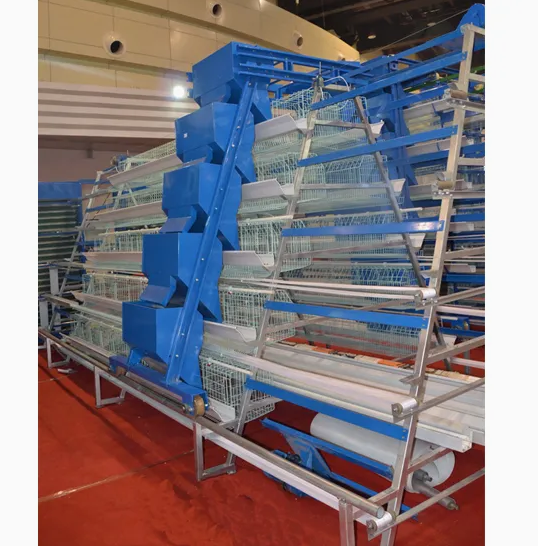

Feed Silo & Delivery System
  • Standard external ladder with protective railings for safe access
  • Closed design with automatic feeding improves management efficiency and reduces cross infections
  • Imported feed auger and white PVC feed pipe with detachable high strength wear-resistant nylon elbow
  • Manual feeding box included for emergency situations to ensure timely chicken feeding
Hot-Dip Galvanized Battery Chicken Cage with Automatic Feeding System and Customizable Dimensions
