Hot-dip galvanized steel poultry chicken cage with automatic feeding system for 8 hens per cell
Hot-dip galvanized steel poultry chicken cage with automatic feeding system for 8 hens per cell
Hot-dip galvanized steel poultry chicken cage with automatic feeding system for 8 hens per cell
Hot-dip galvanized steel poultry chicken cage with automatic feeding system for 8 hens per cell
Hot-dip galvanized steel poultry chicken cage with automatic feeding system for 8 hens per cell
Hot-dip galvanized steel poultry chicken cage with automatic feeding system for 8 hens per cell
Hot-dip galvanized steel poultry chicken cage with automatic feeding system for 8 hens per cell
Hot-dip galvanized steel poultry chicken cage with automatic feeding system for 8 hens per cell
Specifications
MOQ :
200 Square Meters (MOQ)
Delivery Time :
30days
Egg Damage Rate :
Below 0.3%
Roof :
S
Payment Terms :
T/T
Sustainability :
Eco-Friendly
Web Plate Thickness :
6-32mm
Customization :
Available
Wire Mesh :
Aluminum-zinc-coated wire
Model Number :
KXD-SSW1059
Specification :
Prefab steel buildings
Connection Type :
Bolted
Price :
US$50.00-100.00
Trademark :
KXD
Certification :
ISO, SGS, CE, BV
Steel Type :
Q235,Q345
Hs Code :
9406900090
Manure Removal Material :
Durable PP
Supply Ability :
5000ton/Month
Cell Capacity :
8 hens per cell
Ventilation :
Natural and Mechanical Ventilation
Brand Name :
KXD-SSW1059
Walltype :
Steel Panel
Packaging Details :
pallet
Place of Origin :
Place of Origin Qingdao
Design Options :
Versatile
Description
Economic Poultry Chicken Cage Battery Egg Layer Cage Fully Automatic Cage Farm Equipment
Product Overview

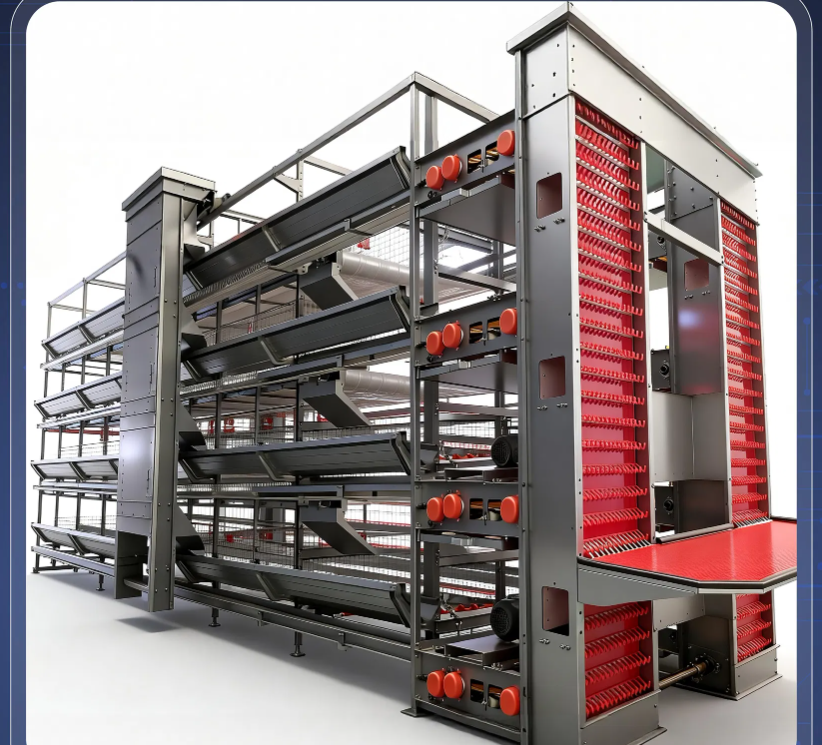

The H-type automatic layer cage adopts a vertical stacked structure with high space utilization. Available in 4 and 5 tiers, it supports high-density large-scale chicken farming. Equipped with full intelligent systems, it realizes automatic feeding, drinking, egg collection, manure cleaning and environmental control. Made of high-quality anti-corrosion steel, it is sturdy, durable and low-maintenance, delivering high yield with lower operating costs.

  • The H-type cage is integrally made of national standard Q235 low-carbon steel, featuring high strength, good pressure resistance and stable load-bearing performance, and is not easy to deform under long-term stacked breeding.
  • The cage frame and mesh are treated with hot-dip galvanization for corrosion resistance. High-end models adopt dual anti-corrosion treatment of heavy galvanizing and galvalume coating. It is acid-proof, alkali-proof and moisture-resistant, fully suitable for the harsh humid and dusty environment of chicken houses.
  • With excellent impact resistance and wear resistance, the cage is rust-free and durable. Its service life reaches 25-30 years, far longer than ordinary cages of 10-15 years. It greatly reduces maintenance and replacement costs and offers superior long-term cost performance.
Hot-dip galvanized steel poultry chicken cage with automatic feeding system for 8 hens per cell
Product Specifications
Product Name H Type Chicken Layer Cages
Material Hot Dip galvanized steel
Tiers 3-12 tiers
Capacity 96-384 birds per set
Type 1200*1200*430
1200*1200*480
1800*1200*430
Support customization
Area of per chicken 450/400 cm²
Color Sliver
Supporting System Automatic Egg Collection System, Automatic Feeding System, Automatic Drinking System, Automatic Manure Cleaning System, Environment Control System
Automatic Systems
Automatic Drinking System
  • Each cage tier has an independent, pressure-adjustable water line, fixing uneven water pressure between tiers.
  • With 1 drinker for every 4 birds (25% more than the industry standard), installed precisely 2cm above the hens' backs.
  • A dedicated V-shaped drip tray is installed under the drinking pipeline to channel leaks directly into the drainage system, preventing wet birds and feed and reducing the incidence of coccidiosis.
  • An automatic backwashing device is included to flush the pipelines weekly, preventing limescale and biofilm buildup and ensuring clean drinking water.
Automatic Feeding System
  • Standard mounting positions for feeding rails are reserved at the top of each tier, with the rails integrally welded to the cage frame for stable, shake-free operation.
  • Dual symmetrical troughs provide a feeding space of ≥10cm per bird, preventing uneven feed intake caused by competition.
  • The feeding trolley speed is infinitely adjustable from 6 to 18m/min. A single trolley can serve up to 150,000 layers, delivering 40% higher efficiency than A-type cages.
  • Compatible with backpack-type and gantry-type feeding equipment. Fully automatic operation with built-in cleaning function greatly cuts labor costs.
Automatic Manure Removal System
  • A gapless manure conveyor belt is installed at the bottom of each cage tier. All manure falls onto the belt completely with no ground contamination.
  • Made of 3mm thick virgin polypropylene blended with UV stabilizers and anti-static agents, the belt has a service life of no less than 8 years.
  • The system supports intelligent seasonal automatic cleaning frequency adjustment. It automatically runs manure cleaning 2 to 3 times per day in hot and humid summer to prevent bacterial growth and odor, and switches to once a day in cold winter. The overall manure residue rate is strictly controlled below 0.5% to ensure thorough cleaning effect.
  • Fitted with automatic deviation correction and tensioning devices, it runs steadily for long periods with minimal manual maintenance.
Environment Control System
  • Special IoT intelligent environmental controller for chicken houses, perfectly compatible with fully automatic H-type chicken cages. It works steadily in high temperature & humidity, thunderstorms and unstable voltage, ideal for large-scale layer farming.
  • 24-hour fully automatic unattended operation. Precisely controls temperature, humidity, ventilation and air quality, eliminating drawbacks of manual management and preventing flock stress and production decline.
  • Complete functions, easy operation and stable performance. Linked with full cage equipment to realize intelligent & energy-saving breeding for higher efficiency and profits.
  • Support mobile remote control and real-time monitoring of temperature, humidity, ammonia and other indicators. Automatic alert will be sent to your phone once abnormalities occur.
Hot-dip galvanized steel poultry chicken cage with automatic feeding system for 8 hens per cell Hot-dip galvanized steel poultry chicken cage with automatic feeding system for 8 hens per cell Hot-dip galvanized steel poultry chicken cage with automatic feeding system for 8 hens per cell Hot-dip galvanized steel poultry chicken cage with automatic feeding system for 8 hens per cell
