Specifications
Brand Name :
Chalong Fly
Model Number :
CLFLE218
Certification :
CE,ROHS,FCC,IEC62133,MSDS,UN38.3, UL, etc
Place of Origin :
Hunan,China
MOQ :
2 unit
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10000 units per month
Delivery Time :
7-15 working days
Packaging Details :
Wooden case and Carton case
Battery Type: :
Lifepo4 Battery
Voltage: :
96V
Capacity: :
300AH
Size: :
Customized
OEM/ODM: :
Yes
Transport Package: :
Foam & Plywood Case
Waterproof Standard: :
IP67
HS Code: :
8507600090
Features: :
Cost Effective, Fast Delivery, Stable Structure
Application: :
Electric Vehicle,electric Boat,electric Yacht,marine
Description
Core Advantages

Tailor-made for yachts, fishing boats, sailboats and various other marine vessels, the 24V80Ah rated specification meets the power supply needs of multiple marine scenarios. Adopting LiFePO4 battery cells and built-in intelligent BMS management system, it balances safety protection and long-lasting battery life. With IP67 waterproof and dustproof, salt spray and vibration resistance, the lightweight design greatly reduces ship load. The maintenance-free feature lowers long-term operation costs, suitable for ship main power supply, auxiliary power supply and emergency power supply scenarios, creating a professional marine power supply solution.

Application Scenarios

Widely used in various civil and commercial marine vessels, including yachts, leisure boats, fishing boats, sailboats, work boats, sightseeing boats, marine law enforcement boats, etc. It can be used as the main power supply to power the ship's power system, as an auxiliary power supply to power fish finders, radars, GPS, marine lighting and communication equipment, and also as an emergency power supply to provide stable power for life-saving equipment and emergency start systems, suitable for polar, tropical and other marine environments.

Specification Category Details
Nominal Voltage 24V DC
Nominal Capacity 80Ah (0.2C, 25℃)
Cell Type LiFePO4 (Lithium Iron Phosphate)
Cell Configuration 8S4P (8 cells in series, 4 cells in parallel)
Continuous Discharge Current 80A (1C)
Peak Discharge Current (3S) 160A
Charging Voltage 29.2V DC
Recommended Charging Current ≤16A (0.2C)
Charging Temperature Range 0℃ ~ 45℃
Discharging Temperature Range -20℃ ~ 60℃
Storage Temperature Range -20℃ ~ 50℃ (Recommended 50% SOC)
Cycle Life ≥4000 cycles (at 25℃, 1C charge/discharge, remaining capacity ≥80%)
Waterproof Grade IP67
Vibration Resistance Meets IEC 60092-350 Marine Vibration Standard
Salt Spray Resistance Meets ASTM B117 Standard (48 hours no corrosion)
Housing Material ABS + Aluminum Alloy (Optional)
Product Size (L×W×H) 380×175×210mm (Customizable for specific marine compartments)
Net Weight Approx. 12kg
BMS Function Overcharge, Overdischarge, Overcurrent, Short Circuit, Overheat, Low Temperature, Cell Balancing Protection
Certifications CE, FCC, RoHS, UN38.3, IEC 60092-350
Warranty 3 Years / 5 Years (Optional)
Terminal Type Waterproof Copper Terminal (M8)
Working Humidity 0% ~ 95% (Non-condensing)

24V80Ah Marine Lithium Battery, Marine-Specific, IP67 Waterproof, Long Cycle Life

24V80Ah Marine Lithium Battery, Marine-Specific, IP67 Waterproof, Long Cycle Life

Contact us now to get exclusive quotes and customized installation solutions, enjoy large discounts for bulk purchases, and get full technical support and perfect after-sales service to help upgrade marine power supply!

FAQ

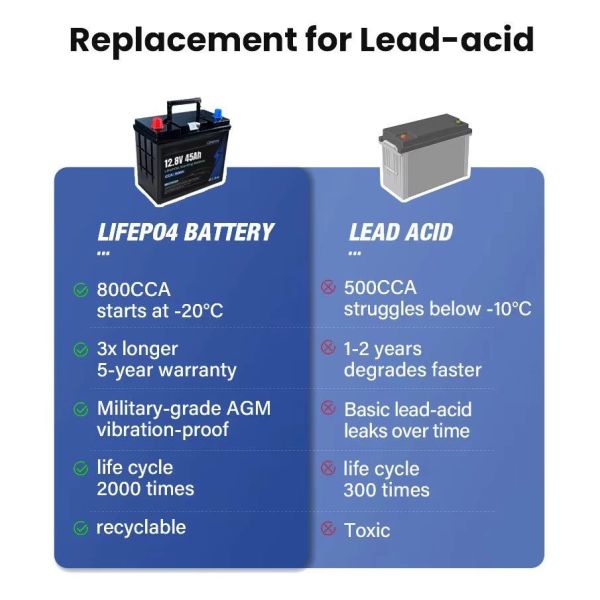

Q1: Can this battery directly replace marine lead-acid starting batteries?

A1: Yes, the 12V voltage is fully compatible with traditional lead-acid starting batteries. It can be directly installed without modifying marine electrical systems, offering lighter weight and superior starting performance.

Q2: Will starting performance be affected in low-temperature environments?

A2: No, the product supports low-temperature discharge at -20℃, and the 1300CCA strong cranking current ensures instant starts in cold environments, making it suitable for use in cold sea areas.

Q3: Is a special charger required?

A3: We recommend using a dedicated LiFePO4 charger (charging voltage 14.4V-14.6V) to prevent battery damage from overcharging. We can provide a dedicated charger as part of a complete set.

Q4: Can IP67 protection resist seawater immersion?

A4: Yes, the IP67 rating allows immersion in 1 meter of water for 30 minutes without water ingress. The casing features salt spray resistant coating to provide long-term protection against seawater corrosion.
