LiFePO4 Lithium Battery Pack Custom Rechargeable 320V 80AH OEM ODM 100AH 200AH Lithium Ion For Marine Boat
LiFePO4 Lithium Battery Pack Custom Rechargeable 320V 80AH OEM ODM 100AH 200AH Lithium Ion For Marine Boat
LiFePO4 Lithium Battery Pack Custom Rechargeable 320V 80AH OEM ODM 100AH 200AH Lithium Ion For Marine Boat
LiFePO4 Lithium Battery Pack Custom Rechargeable 320V 80AH OEM ODM 100AH 200AH Lithium Ion For Marine Boat
Specifications
Brand Name :
CLTF
Model Number :
CLFC-0102
Certification :
CE/ROHS/MSDS/UN38.3
Place of Origin :
Hunan,China
MOQ :
1-1000 units
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10000 units per month
Delivery Time :
7-15 working days
Packaging Details :
Wooden case and Carton case
Features :
Cost Effective, Fast Delivery, Stable Structure
Battery Type :
Lifepo4 Battery，li-ion Battery，lithium Battery，NMC
Voltage :
307.2v
Capacity :
50ah,60ah,100ah,200ah
Application :
Electric Vehicle，electric Boat，electric Yacht,marine
Dimension :
Customized
OEM/ODM :
Yes
Keywords :
Lithium Battery,lifepo4 Battery Pack,nmc Battery,marine Battery
Cycle Life :
3000 Times
Battery Case :
Metal
Transport Package :
Foam & Plywood Case
Waterproof Standard :
IP67
Weight :
300kg
Description

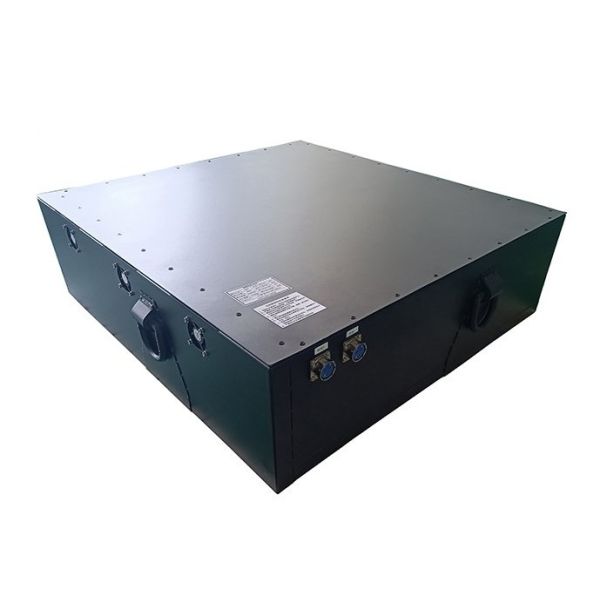

320V 80Ah Energy Storage Lifepo4 Lithium Battery Pack for Marines, Boats, Yachts

Product Paramter

ELECTRICAL SPECIFICATIONS
Cell Type - Chemistry Prismatic- LiFePO4
Rated Capacity 80Ah
Rated Voltage 320V
Energy 25.6kWh
Resistance 30mΩ
Self Discharge <4% per month
Modules in Series 320V 80Ah battery pack
MECHANICAL SPECIFICATIONS
Dimensions (L x W x H) 500*370*160mm
Weight 190Kg
Enclosure Protection IP67
DISCHARGE/CHARGE SPECIFICATIONS
Discharge Cut-off Voltage 280V
Max Continuous Discharging Current 160A
Peak Discharge Current 400A for 30 seconds
Recommended Discharge Current 50A
CHARGE SPECIFICATIONS
Charging Limited Voltage 365V
Max Charging Current 40A
Recommended Charge Current 20A
TEMPERATURE SPECIFICATIONS
Charge Temperature Range 0~45ºC
Discharge Temperature Range -20~60ºC
Recommended Operating Temperature 15~35ºC
Storage Temperature & Humidity Range
(Less than 1 month)		 -20~35ºC, 45~75%RH
Storage Temperature & Humidity Range
(Less than 3 months)		 -10~35ºC, 45~75%RH
Recommended Storage Temperature & Humidity Range 15~35ºC, 45~75%RH
OEM
Available on request yes

LiFePO4 Lithium Battery Pack Custom Rechargeable 320V 80AH OEM ODM 100AH 200AH Lithium Ion For Marine Boat

LiFePO4 Lithium Battery Pack Custom Rechargeable 320V 80AH OEM ODM 100AH 200AH Lithium Ion For Marine Boat

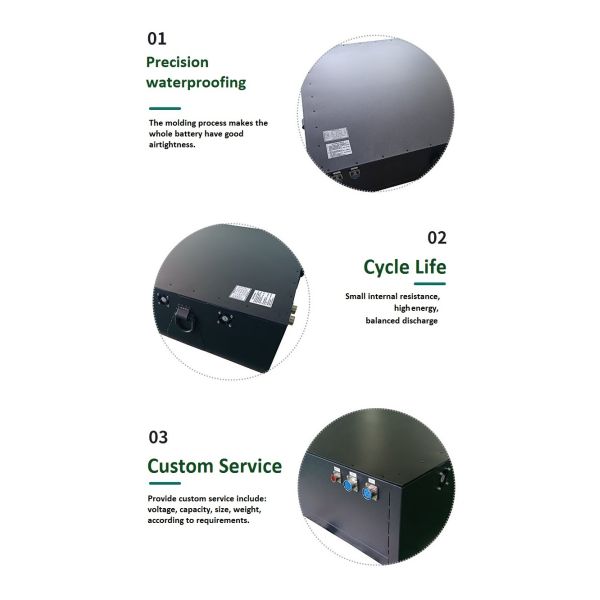

Features of Battery:

Lighter weight, smaller size.

High-temperature performance.

Extremely safe, no explosion, no fire under collision.

Strong over-discharge resistance and charge retention.

Strong charging acceptance and quick-charging capability.

Excellent large current discharge performance especially in startup and climbing.

Large capability and long life for all high-power output applications.

Environmentally friendly non-toxic, non-contaminating, no rare metal.

Low self-discharge and good discharge performance at low temperatures.

LiFePO4 Lithium Battery Pack Custom Rechargeable 320V 80AH OEM ODM 100AH 200AH Lithium Ion For Marine Boat

If you don't see any products that match your requirements please contact us. We may not have it listed on our website yet.

Chalong Fly provides ODM&OEMs with assurances of quality for our products and services. We distribute battery packs and battery cells from many reputable brand names. We manufacture a variety of custom battery packs and power supplies made to customer specifications.
