Li-polymer Battery Cell 502065 3.7V 700mAh 2.59wh Rechargeable Lithium Batteries
Li-polymer Battery Cell 502065 3.7V 700mAh 2.59wh Rechargeable Lithium Batteries
Li-polymer Battery Cell 502065 3.7V 700mAh 2.59wh Rechargeable Lithium Batteries
Li-polymer Battery Cell 502065 3.7V 700mAh 2.59wh Rechargeable Lithium Batteries
Specifications
Brand Name :
RESKY
Model Number :
LP502065
Certification :
CE, RoHS, MSDS, Un38.3,CB, ect
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
Western Union,T/T
Supply Ability :
50000pcs/day
Delivery Time :
7-10days
Packaging Details :
Paper box
Nominal Capacity :
700mAh
Charging Current :
0.2c
Continuous Discharging Current :
0.5c
Max Discharging Current :
1c
Weight :
10g
Cycle Life :
500cycles
Warranty :
12months
Shipping :
UPS, DHL, FedEx, TNT, by Air, by Sea, Special Line
Connector :
Jst, Molex....
Specification :
5*20*65mm
Description
Li-polymer Battery Cell 502065 3.7V 700mAh 2.59wh
High-performance rechargeable lithium polymer battery designed for compact electronic devices requiring reliable power in limited space.
Product Specifications
Nominal Capacity 700mAh
Charging Current 0.2C
Continuous Discharging Current 0.5C
Max Discharging Current 1C
Weight 10g
Cycle Life 500 cycles
Warranty 12 months
Shipping UPS, DHL, FedEx, TNT, by Air, by Sea, Special Line
Connector JST, Molex, and others
Specification 5×20×65mm
Technical Details
Item Specification
Battery Type 3.7V 700mAh LiPo Battery
Charge Voltage 4.2V
Nominal Voltage 3.7V
Nominal Capacity 700mAh (0.2C Discharge)
Charge Current Standard: 0.5C, Rapid: 1.0C
Standard Charging Method 0.5C CC charge to 4.2V, then CV charge till current ≤0.05C
Charging Time Standard: 2.75 hours, Rapid: 2 hours
Max Charge Current 1.0C
Max Discharge Current 1.0C
Discharge Cut-off Voltage 2.75V (0.2C)
Operating Temperature Charging: 0°C to 45°C, Discharging: 0°C to 45°C
Storage Temperature -10°C to +45°C
Dimensions Length: 65±2mm, Width: 20±0.5mm, Thickness: 5±0.2mm
Drop Test 1 meter drop onto concrete twice - no fire, no leakage
Cycle Life ≥500 cycles
Applications
  • Smartphones: High energy density for longer battery life in compact designs
  • Tablets: Meets capacity and portability requirements for extended use
  • Laptops: Higher energy density extends usage time and enables thinner designs
  • Bluetooth Headsets: Compact power solution for wireless devices
  • Smart Watches & Bracelets: Customizable shapes adapt to wearable device designs
Main Advantages
  • High energy density with superior size-to-weight ratio
  • Standard 3.7V nominal voltage compatible with consumer electronics and IoT devices
  • Eliminates need for additional power modules, simplifying circuit design
  • No memory effect with high charge/discharge efficiency
  • Considerable cycle life of 500+ cycles
  • Flexible shape for strong adaptability to various device designs
  • Outstanding low-temperature performance for wider application scenarios
  • Environmentally friendly and safe, compliant with industry standards
502065 battery measurements:

Li-polymer Battery Cell 502065 3.7V 700mAh 2.59wh Rechargeable Lithium Batteries

Li-polymer Battery Cell 502065 3.7V 700mAh 2.59wh Rechargeable Lithium Batteries

Li-polymer Battery Cell 502065 3.7V 700mAh 2.59wh Rechargeable Lithium Batteries

Li-polymer Battery Cell 502065 3.7V 700mAh 2.59wh Rechargeable Lithium Batteries

Li-polymer Battery Cell 502065 3.7V 700mAh 2.59wh Rechargeable Lithium Batteries

Li-polymer Battery Cell 502065 3.7V 700mAh 2.59wh Rechargeable Lithium Batteries

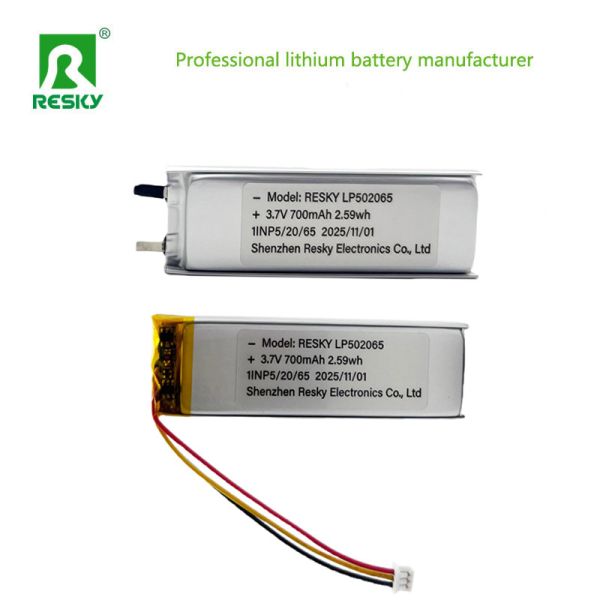

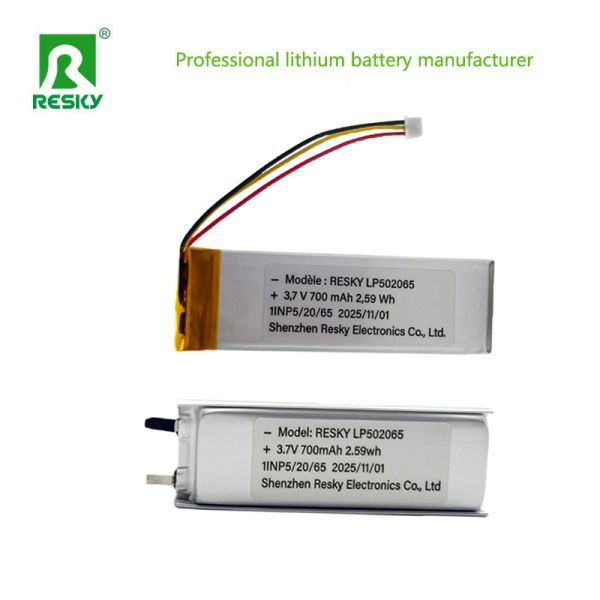

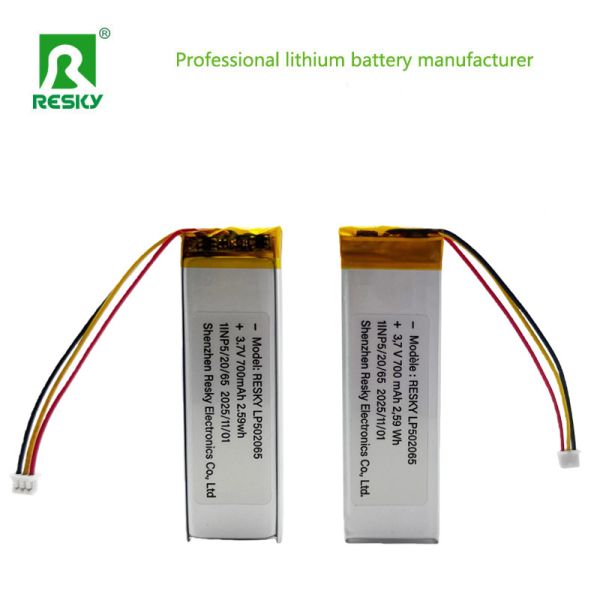

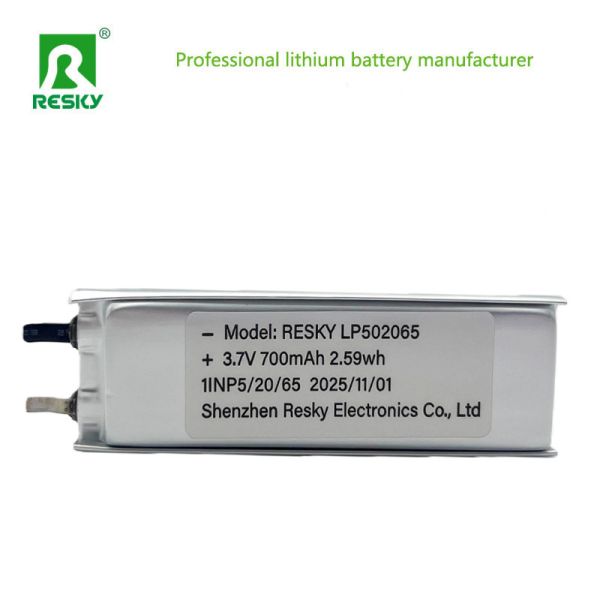

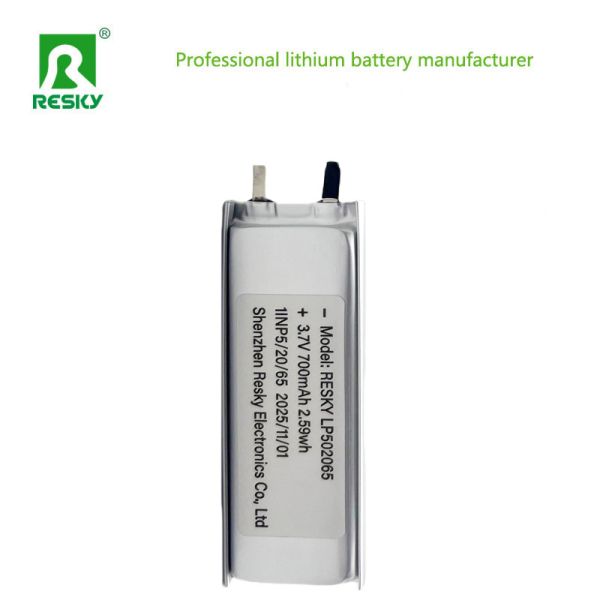

Product Images
Li-polymer Battery Cell 502065 3.7V 700mAh 2.59wh Rechargeable Lithium Batteries Li-polymer Battery Cell 502065 3.7V 700mAh 2.59wh Rechargeable Lithium Batteries Li-polymer Battery Cell 502065 3.7V 700mAh 2.59wh Rechargeable Lithium Batteries Li-polymer Battery Cell 502065 3.7V 700mAh 2.59wh Rechargeable Lithium Batteries Li-polymer Battery Cell 502065 3.7V 700mAh 2.59wh Rechargeable Lithium Batteries
