Power Lithium Polymer Battery Pack 803450 2S 7.4V 1500mAh 11.1wh Rechargeable Lithium Ion Cell
Power Lithium Polymer Battery Pack 803450 2S 7.4V 1500mAh 11.1wh Rechargeable Lithium Ion Cell
Power Lithium Polymer Battery Pack 803450 2S 7.4V 1500mAh 11.1wh Rechargeable Lithium Ion Cell
Power Lithium Polymer Battery Pack 803450 2S 7.4V 1500mAh 11.1wh Rechargeable Lithium Ion Cell
Specifications
Brand Name :
RESKY
Model Number :
LP803450-2S
Certification :
CE, RoHS, MSDS, Un38.3
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
T/T,Western Union
Supply Ability :
100000PCS/Day
Delivery Time :
7-10days
Packaging Details :
Paper box
Nominal Capacity :
1500mAh
Weight :
15g
Cycle Life :
500cycles
Warranty :
12months
Shipping :
DHL, FedEx, TNT, by Air, by Sea
Color :
Silver, Blue PVC
Electrolyte :
Li(Nicomn)O2
Specification :
17*35*54mm
HS Code :
8507600090
Description
Product Description

Power Lithium Polymer Battery Pack 803450 2S 7.4V 1500mAh 11.1wh Rechargeable Lithium Ion Cell

NO. Items Specifications
1 batteries 7.4v 1500mah lipo battery
2 Charge voltage 8.4V
3 Nominal voltage 7.4V
4 Nominal capacity 1500mAh 0.2C Discharge
5 Charge current
 Standard Charging:0.5C
Rapid charge: 1.0C
6 Standard Charging method 0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C
7 Charging time
 Standard Charging:2.75hours(Ref.)
Rapid charge: 2hours(Ref.)
8 Max.charge current 1.0C
9 Max.discharge current 1.0C
10 Discharge cut-off voltage 2.5V0.25V(0.2C)
11 Operating temperature Charging: 0 °C ~45 °C
Discharging:0 °C ~45 °C
12 Storage temperature -10°C~ +45 °C
13 Dimension Length:54±0.5mm (not including tabs)
Width: 35±0.5mm
Thickness:17±0.2mm
14 Drop Test The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage
15 cycle time ≥500times


Advantages:


Stability and Safety
The polymer battery cell design offers low internal resistance and high consistency, effectively reducing overheating and battery drop. It maintained stable temperature after three days of continuous use, even after 20 minutes of use, without experiencing any overheating.


Cycle Life and Durability

The battery maintains a strong charge after up to 500 charge and discharge cycles, demonstrating exceptional durability.


Low-Temperature Performance

Stable discharge in temperatures ranging from -10°C to 60°C, maintaining normal operation even in low-temperature environments.


Application:


Wireless Communication Devices

Suitable for wireless communication devices requiring stable power, such as walkie-talkies, wireless mice, and Bluetooth headsets.


Medical and Smart Device


Suitable for medical devices such as eye massagers and blood pressure monitors, as well as smart home devices such as smart locks and robot vacuums.


Portable Electronic Devices


Suitable for portable devices requiring high-capacity batteries, such as flashlights, power banks, video recorders, and game consoles.


Outdoor and Industrial Equipment

Suitable for outdoor or industrial applications requiring high battery life and stability, such as drones, power tools, and handheld printers. ‌

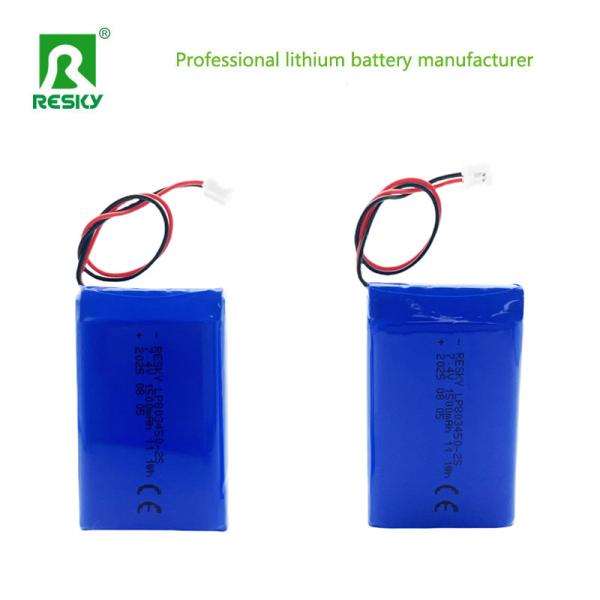

Picures:

Power Lithium Polymer Battery Pack 803450 2S 7.4V 1500mAh 11.1wh Rechargeable Lithium Ion Cell

Power Lithium Polymer Battery Pack 803450 2S 7.4V 1500mAh 11.1wh Rechargeable Lithium Ion Cell

Power Lithium Polymer Battery Pack 803450 2S 7.4V 1500mAh 11.1wh Rechargeable Lithium Ion Cell

Power Lithium Polymer Battery Pack 803450 2S 7.4V 1500mAh 11.1wh Rechargeable Lithium Ion Cell

Power Lithium Polymer Battery Pack 803450 2S 7.4V 1500mAh 11.1wh Rechargeable Lithium Ion Cell
