China Li-ion Battery Cell 3.7V 600mAh 802530 2.22wh Power Lithium Ion Polymer Battery Pack
China Li-ion Battery Cell 3.7V 600mAh 802530 2.22wh Power Lithium Ion Polymer Battery Pack
China Li-ion Battery Cell 3.7V 600mAh 802530 2.22wh Power Lithium Ion Polymer Battery Pack
China Li-ion Battery Cell 3.7V 600mAh 802530 2.22wh Power Lithium Ion Polymer Battery Pack
Specifications
Brand Name :
RESKY
Model Number :
LP602540
Certification :
CE, RoHS, MSDS, Un38.3, IEC62133 available
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
T/T,Western Union
Supply Ability :
50000pcs/day
Delivery Time :
7-10days
Packaging Details :
Standard export package
Nominal Capacity :
600mAh
Charging Current :
0.2c
Continuous Discharging Current :
0.5c
Max Discharging Current :
1c
Weight :
5g
Cycle Life :
500cycles
Warranty :
12months
Shipping :
UPS, DHL, FedEx, TNT, by Air, by Sea, Special Line
Specification :
8*25*30mm
HS Code :
8507600090
Description
China Li-ion Battery Cell 3.7V 600mAh 802530 2.22wh Power Lithium Ion Polymer Battery Pack
Technical Specifications
NO. Items Specifications
1 Batteries 3.7V 600mAh LiPo battery
2 Charge voltage 4.2V
3 Nominal voltage 3.7V
4 Nominal capacity 600mAh (0.2C Discharge)
5 Charge current Standard Charging: 0.5C
Rapid charge: 1.0C
6 Standard Charging method 0.5C CC charge to 4.2V, then CV charge till current ≤0.05C
7 Charging time Standard: 2.75 hours
Rapid: 2 hours
8 Max. charge current 1.0C
9 Max. discharge current 1.0C
10 Discharge cut-off voltage 2.75V (0.2C)
11 Operating temperature Charging: 0°C ~45°C
Discharging: 0°C ~45°C
12 Storage temperature -10°C ~ +45°C
13 Dimension Length: 30±2mm
Width: 25±0.5mm
Thickness: 8±0.2mm
14 Drop Test Dropped from 1m twice onto concrete ground with no fire or leakage
15 Cycle time ≥500 times
Key Advantages
  • Balanced Capacity & Compact Size: 600mAh capacity in 6×25×40mm dimensions, ideal for devices needing extended runtime in thin designs
  • High Energy Density: ~370Wh/L energy density outperforms traditional cylindrical batteries of similar volume
  • Reliable Safety: Soft-package Li-Polymer structure with built-in protection IC against overcharge, over-discharge, and short circuit
  • Long-Term Durability: 300-500 charge cycles while maintaining over 80% capacity after 300 cycles
  • Wide Temperature Range: Operates from -10°C to 60°C (discharge) and 0°C to 45°C (charge)
  • Low Self-Discharge: Only ~5% capacity loss per month at room temperature
Product Features


Physical and Electrical Specifications: Dimensions are 8mm × 25mm × 30mm; rated voltage is 3.7V; nominal capacity is 600mAh; charging cut-off voltage is 4.2V; discharging cut-off voltage is 2.75V; standard charging current is 300mA; internal resistance is less than 40 milliohms.


Performance Characteristics: High energy density and stable voltage output; cycle life exceeds 300 cycles; capacity retention is greater than 80%; high charging efficiency, typically fully charged in 1.5-2.5 hours; supports fast charging, but overcharging and over-discharging should be avoided.


Safety Features: Employs a polymer cell design with built-in protection boards (such as DW01 and 8205 chips), providing overcharge, over-discharge, and short-circuit protection; high safety; less prone to leakage or bulging; operating temperature range is -20℃ to 60℃.


Applications and compatibility: Suitable for portable devices such as Bluetooth headsets, smartwatches, GPS trackers, and small speakers. Due to its small size and light weight, it is easy to integrate into compact electronic products.

Primary Applications

Consumer Electronics: Commonly used in smart wearable devices such as children's smartwatches and GPS trackers, providing all-day battery life; it can also power audio devices such as Bluetooth headsets and small Bluetooth speakers, meeting short-term continuous playback needs.


Home and Personal Care Devices: Can be used as a power source for low-power appliances such as desk lamps, navigators, and nightlights, enabling portable lighting or positioning functions; it is also suitable for personal care tools such as beauty devices and dog trainers, ensuring stable operation.


Toys and Models: Due to its high safety and low leakage rate of polymer cells, it is suitable for electric toys, model airplanes, and other scenarios requiring lightweight batteries.


Medical and Health Devices: Can be used in small medical and beauty instruments such as portable hydration sprayers, providing reliable power; its stability also makes it a potential power source choice for precision devices such as pacemakers.

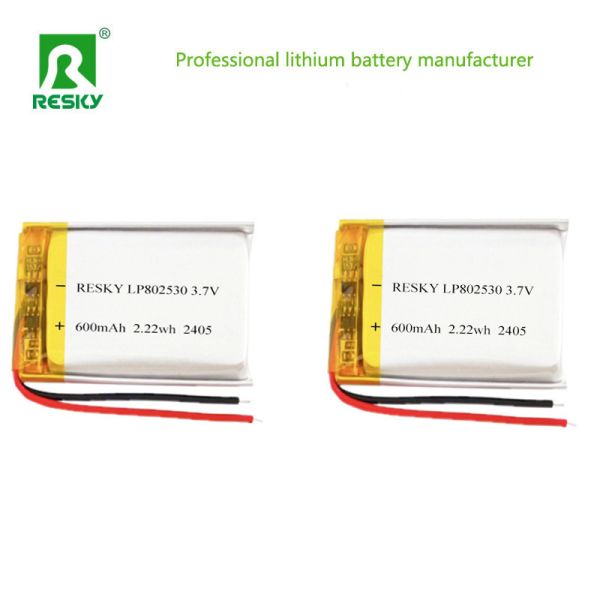

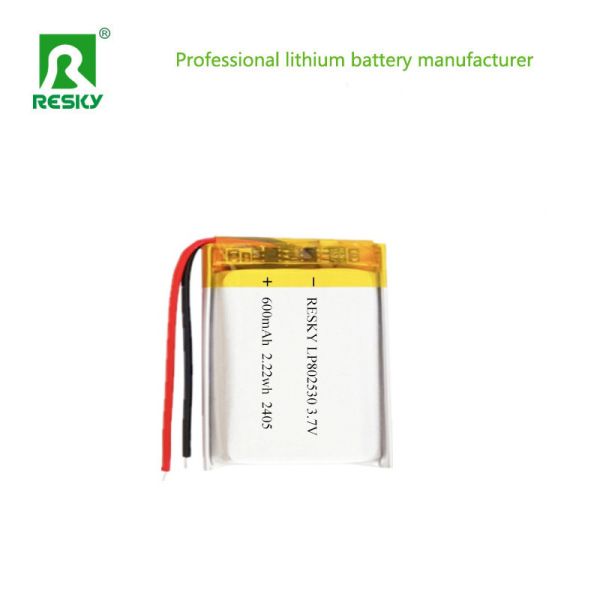

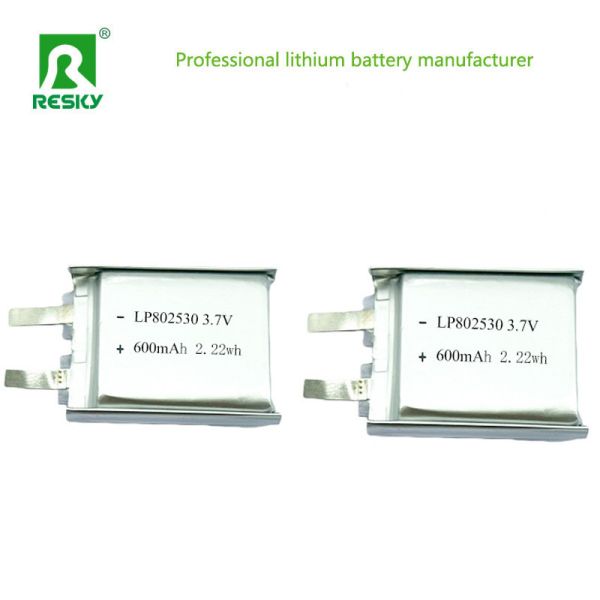

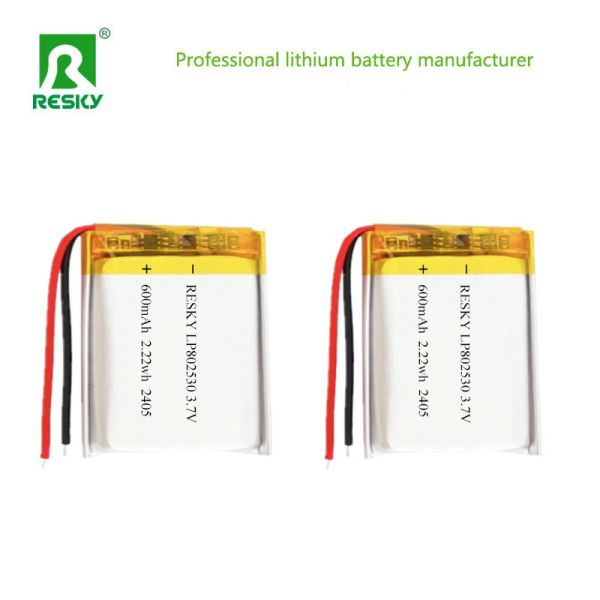

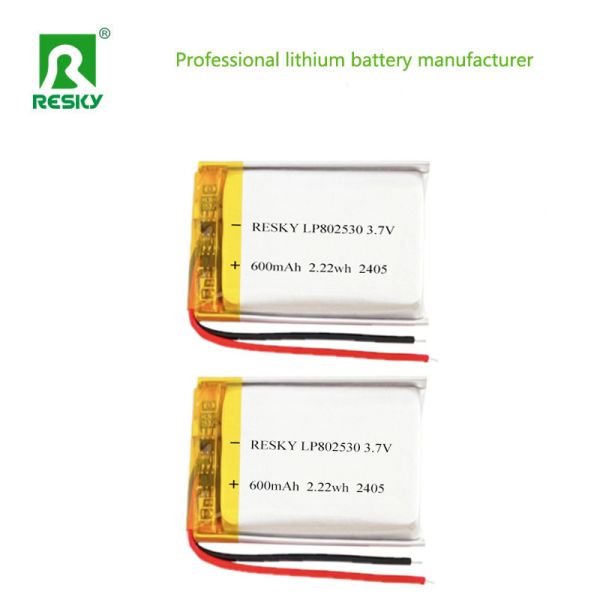

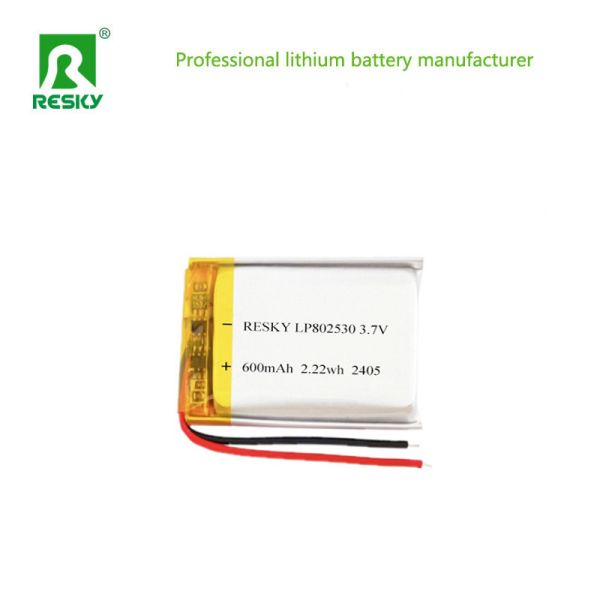

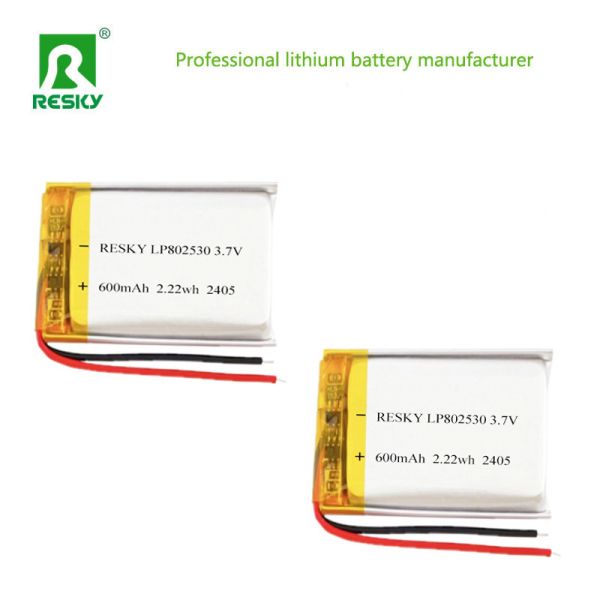

Product Images
