Specifications
Brand Name :
RESKY
Model Number :
LP635060
Certification :
CE, RoHS, MSDS, Un38.3, IEC62133,ECT
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
Western Union,T/T
Supply Ability :
50000pcs/day
Delivery Time :
7-10workdays
Packaging Details :
Standard export
Nominal Capacity :
2500mAh
Charging Current :
0.2c
Continuous Discharging Current :
0.5c
Max Discharging Current :
1c
Weight :
27g
Warranty :
12months
OEM Service :
Yes
Specification :
6.3*50*60mm
HS Code :
8507600090
Working voltage :
4.2V
Description
Power Lifepo4 Battery 635060 3.7v 2500mAh 9.25wh Rechargeable Square Lipo Li-polymer Batteries
Product Specifications
NO. Items Specifications
1 Batteries 3.7v 2500mah lipo battery
2 Charge voltage 4.2V
3 Nominal voltage 3.7V
4 Nominal capacity 2500mAh 0.2C Discharge
5 Charge current Standard Charging:0.5C
Rapid charge: 1.0C
6 Standard Charging method 0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C
7 Charging time Standard Charging:2.75hours(Ref.)
Rapid charge: 2hours(Ref.)
8 Max.charge current 1.0C
9 Max.discharge current 1.0C
10 Discharge cut-off voltage 2.5V0.25V(0.2C)
11 Operating temperature Charging: 0°C ~45°C
Discharging:0°C ~45°C
12 Storage temperature -10°C~ +45°C
13 Dimension Length:60±2mm (not including tabs)
Width:50±0.5mm
Thickness:6.3±0.2mm
14 Drop Test The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage
15 Cycle time ≥500times
Main Features:

High energy density and compact size: The 2500mAh capacity provides long-lasting power in a miniaturized design, making it suitable for space- and weight-sensitive devices such as portable instruments, navigation devices, and children's electronic toys.


Long cycle life and good stability: The battery has a cycle life of 300-500 cycles, with slow capacity decay during actual use. It also features low self-discharge and high capacity retention after long-term storage.


Fast charging and low-temperature resistance: Supports fast charging; some models can be charged to 80% in 30 minutes. It remains stable in low-temperature environments (e.g., -20°C), with reliable start-up and discharge performance at sub-zero temperatures, making it suitable for outdoor or cold-weather use.


High safety and adaptability: Utilizing aluminum-plastic film packaging and a gel electrolyte, internal short circuits or overcharging only result in slight heating or bulging, avoiding the risk of violent explosions. Furthermore, it has no memory effect, high open-circuit voltage, and stable output power, making it suitable for precision instruments requiring continuous power.

Typical Applications
  1. Small Digital and Entertainment Devices
    • Bluetooth Speakers/Headphones: Medium capacity supports 3-8 hours of continuous playback; soft-pack design optimizes internal space layout.
    • Handheld Game Consoles/VR Accessories: High-rate discharge meets instantaneous power consumption during gaming; ultra-thin design enhances wearing comfort.
    • Action Cameras/Drones: Low-temperature performance and high-rate discharge support outdoor shooting and short-distance flights.
  2. Outdoor and Thermal Equipment
    • Heated Gloves/Protective Gear
    • Outdoor Lighting Equipment: Such as headlamps and flashlights; wide operating temperature range and long battery life suitable for camping, exploration, and other scenarios.
  3. Smart Home and IoT Terminals
    • Smart Lock Backup Power: Low self-discharge ensures long standby time; ultra-thin size allows for embedding within the lock body.
    • Wireless Sensors/Surveillance Cameras: Battery power reduces wiring costs; medium capacity meets monitoring needs for weeks or even months.
Product Images

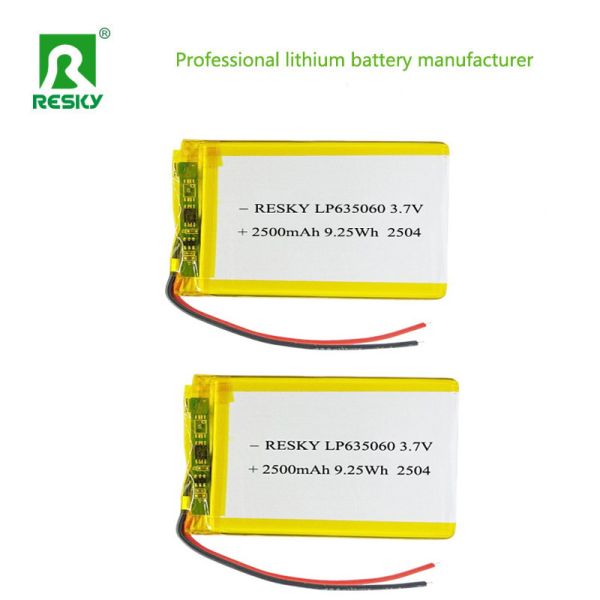

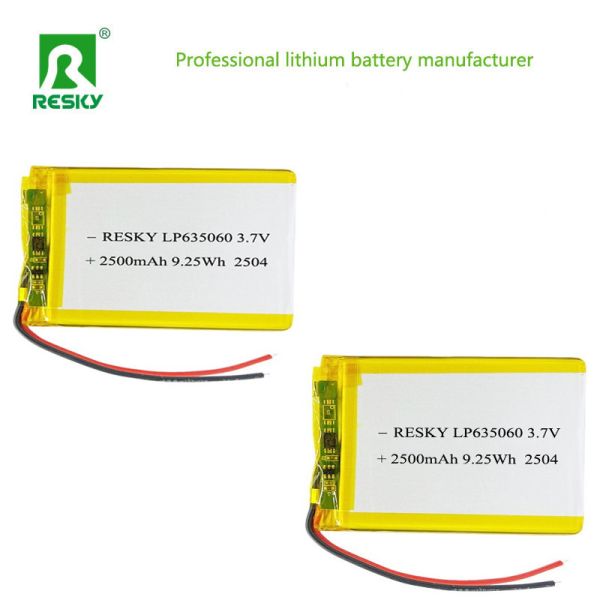

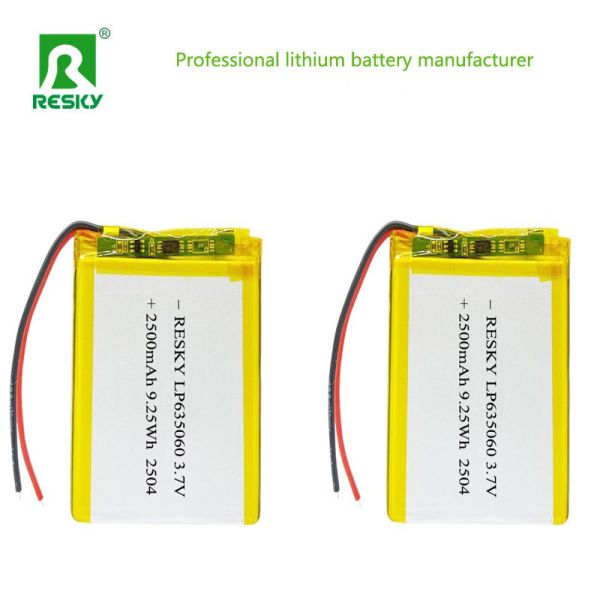

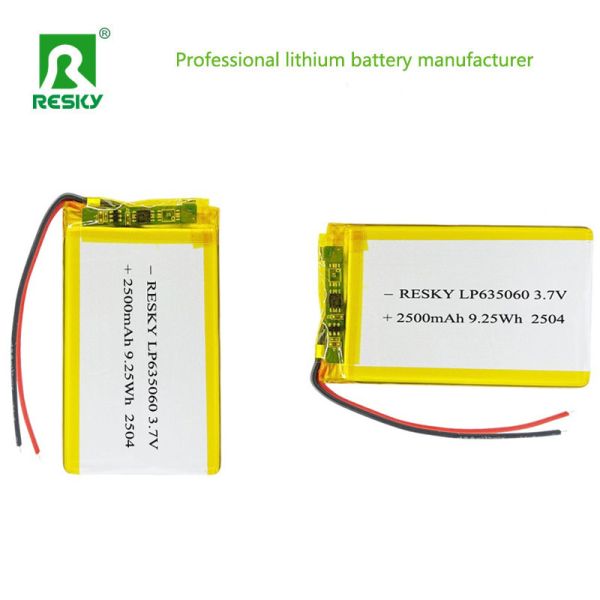

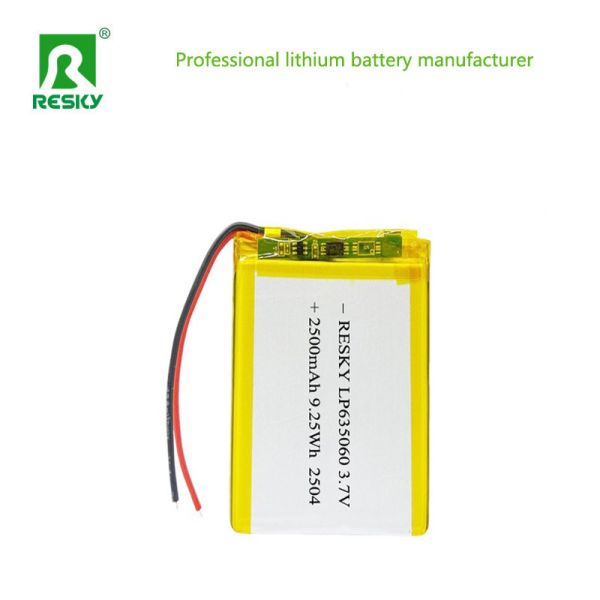

Power Lifepo4 Battery 635060 3.7v 2500mAh 9.25wh Rechargeable Square Lipo Li-polymer Batteries

Power Lifepo4 Battery 635060 3.7v 2500mAh 9.25wh Rechargeable Square Lipo Li-polymer Batteries

Power Lifepo4 Battery 635060 3.7v 2500mAh 9.25wh Rechargeable Square Lipo Li-polymer Batteries

Power Lifepo4 Battery 635060 3.7v 2500mAh 9.25wh Rechargeable Square Lipo Li-polymer Batteries

Power Lifepo4 Battery 635060 3.7v 2500mAh 9.25wh Rechargeable Square Lipo Li-polymer Batteries
