3.7V 2000mAh Square Rechargeable Battery Cell Li-polymer Battery for Portable Scanner
3.7V 2000mAh Square Rechargeable Battery Cell Li-polymer Battery for Portable Scanner
3.7V 2000mAh Square Rechargeable Battery Cell Li-polymer Battery for Portable Scanner
3.7V 2000mAh Square Rechargeable Battery Cell Li-polymer Battery for Portable Scanner
Specifications
Brand Name :
RESKY
Model Number :
LP654065
Certification :
IEC62133, CE, RoHS, MSDS, Un38.3, ect
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
T/T,Western Union
Supply Ability :
100000PCS/Day
Delivery Time :
7-10days
Packaging Details :
Paper box
Discharge Rate :
Low Discharge Rate
Shape :
Square Battery
Nominal Capacity :
2000mAh
Weight :
25g
Cycle Life :
500cycles
Warranty :
12months
Connector :
Jst, Molex....
Specification :
6.5*40*65mm
HS Code :
8507600090
Description
Rechargeable Battery Cell 654065 3.7V 2000mAh 7.4Wh Li-polymer Batteries
High-performance 3.7V 2000mAh lithium polymer battery cell designed specifically for beauty devices and portable electronics.
Technical Specifications
Parameter Specification
Battery Type 3.7V 2000mAh LiPo Battery
Charge Voltage 4.2V
Nominal Voltage 3.7V
Nominal Capacity 2000mAh @ 0.2C Discharge
Charge Current Standard: 0.5C, Rapid: 1.0C
Standard Charging Method 0.5C CC charge to 4.2V, then CV charge till current ≤0.05C
Charging Time Standard: 2.75 hours, Rapid: 2 hours
Max. Charge Current 1.0C
Max. Discharge Current 1.0C
Discharge Cut-off Voltage 2.5V±0.25V (0.2C)
Operating Temperature Charging: 0°C ~45°C, Discharging: 0°C ~45°C
Storage Temperature -10°C ~ +45°C
Dimensions Length: 65±2mm, Width: 40±0.5mm, Thickness: 6.5±0.2mm
Drop Test Dropped from 1m height twice onto concrete - no fire, no leakage
Cycle Life ≥500 cycles
Main Advantages
  • High Energy Density and Lightweight Design: Utilizing soft-pack aluminum-plastic film packaging, lighter than traditional cylindrical batteries with a thickness of only 6.5mm, allowing flexible integration into various flat-designed products.
  • Flexible Form Factor Customization: Lithium polymer technology supports micro-adjustments in size based on product internal space. The 654065 specification offers high supply chain versatility and cost-effectiveness.
  • High Safety Performance: Soft-pack structure typically swells rather than explodes during thermal runaway, and does not leak, resulting in higher safety factor.
  • Excellent Cycle Life: Standard products typically have a deep cycle life of over 500 cycles and low self-discharge rate (less than 5% per month).
Main Applications
  • Smart Wearables and Audio Devices: High-end Bluetooth headphones, smart glasses, VR/AR headsets
  • Portable Consumer Electronics: Power banks (ultra-thin), handheld game consoles and controllers, portable translators, reading pens
  • Smart Home and IoT Terminals: Smart door locks, video intercoms
  • Portable Beauty and Personal Care: Beauty devices, massage devices, and other personal care products
  • Industrial and Medical: Handheld scanners, PDAs (Personal Digital Assistants), portable medical monitors

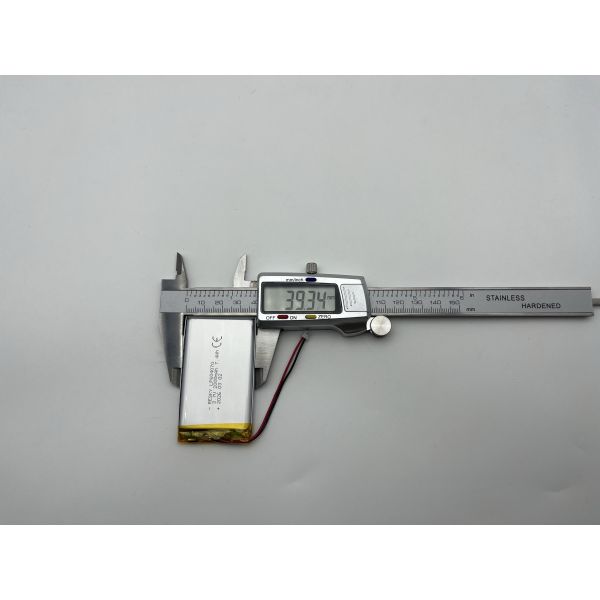

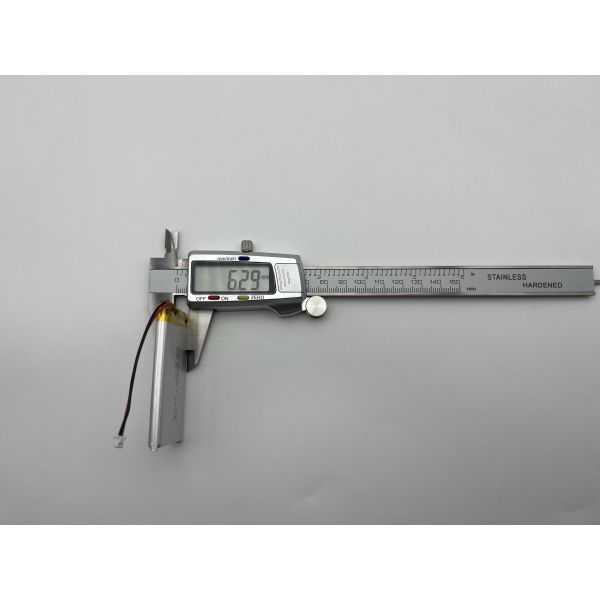

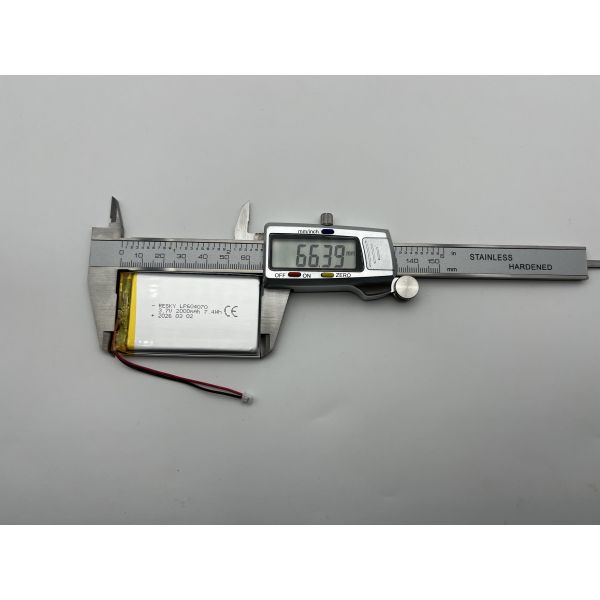

Battery Cell Measurements
3.7V 2000mAh Square Rechargeable Battery Cell Li-polymer Battery for Portable Scanner
3.7V 2000mAh Square Rechargeable Battery Cell Li-polymer Battery for Portable Scanner
3.7V 2000mAh Square Rechargeable Battery Cell Li-polymer Battery for Portable Scanner
3.7V 2000mAh Square Rechargeable Battery Cell Li-polymer Battery for Portable Scanner
3.7V 2000mAh Square Rechargeable Battery Cell Li-polymer Battery for Portable Scanner

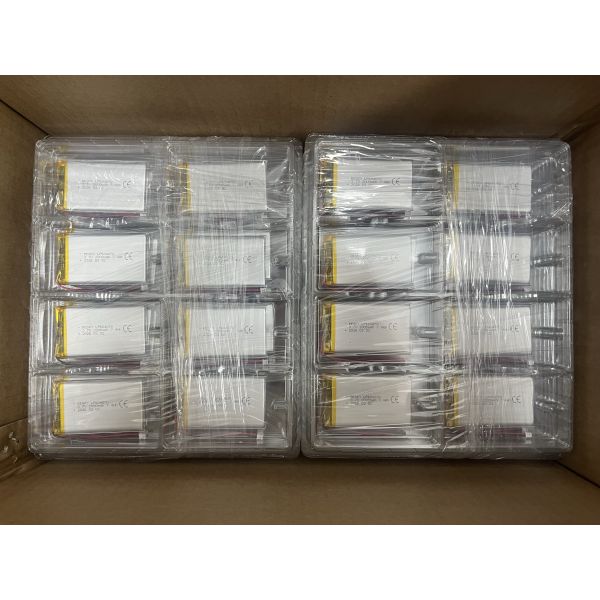

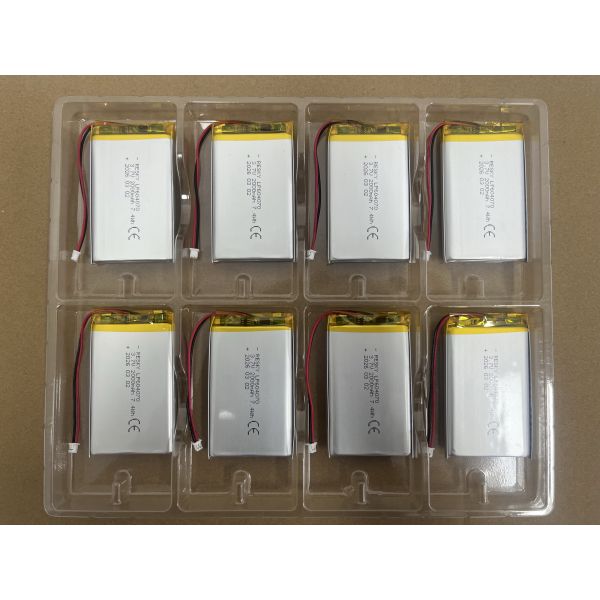

Product Images
3.7V 2000mAh Square Rechargeable Battery Cell Li-polymer Battery for Portable Scanner
3.7V 2000mAh Square Rechargeable Battery Cell Li-polymer Battery for Portable Scanner
3.7V 2000mAh Square Rechargeable Battery Cell Li-polymer Battery for Portable Scanner
3.7V 2000mAh Square Rechargeable Battery Cell Li-polymer Battery for Portable Scanner
3.7V 2000mAh Square Rechargeable Battery Cell Li-polymer Battery for Portable Scanner
