Rechargeable Lifepo4 Battery Cell 502030 3.7v 250mAh 0.925wh Power Lithium Ion Polymer Battery
Rechargeable Lifepo4 Battery Cell 502030 3.7v 250mAh 0.925wh Power Lithium Ion Polymer Battery
Rechargeable Lifepo4 Battery Cell 502030 3.7v 250mAh 0.925wh Power Lithium Ion Polymer Battery
Rechargeable Lifepo4 Battery Cell 502030 3.7v 250mAh 0.925wh Power Lithium Ion Polymer Battery
Specifications
Brand Name :
RESKY
Model Number :
LP502030
Certification :
CE, RoHS, MSDS, Un38.3,IEC62133, ECT
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
T/T,Western Union
Supply Ability :
50000pcs/day
Delivery Time :
7-10days
Packaging Details :
Paper box
Nominal Capacity :
250mAh
Charging Current :
0.2c
Continuous Discharging Current :
0.5c
Max Discharging Current :
1c
Weight :
11g
Cycle Life :
500cycles
Warranty :
12months
Connector :
Jst, Molex....
OEM Service :
Yes
Specification :
9*20*40mm
Description
Rechargeable LiFePO4 Battery Cell 502030 3.7V 250mAh 0.925Wh Power Lithium Ion Polymer Battery
Product Specifications
NO. Items Specifications
1 Batteries 3.7V 250mAh LiPo battery
2 Charge voltage 4.2V
3 Nominal voltage 3.7V
4 Nominal capacity 250mAh @ 0.2C Discharge
5 Charge current Standard Charging: 0.5C
Rapid charge: 1.0C
6 Standard Charging method 0.5C CC charge to 4.2V, then CV charge till current ≤0.05C
7 Charging time Standard: 2.75 hours (Ref.)
Rapid: 2 hours (Ref.)
8 Max. charge current 1.0C
9 Max. discharge current 1.0C
10 Discharge cut-off voltage 2.75V (0.2C)
11 Operating temperature Charging: 0°C ~45°C
Discharging: 0°C ~45°C
12 Storage temperature -10°C ~ +45°C
13 Dimension Length: 50±2mm
Width: 20±0.5mm
Thickness: 5±0.2mm
14 Drop Test 1m drop onto concrete twice. No fire, no leakage
15 Cycle time ≥500 cycles
Key Features
  • Strong voltage compatibility: 3.7V nominal voltage is compatible with most low-power devices without additional power supply circuitry.
  • Safety and durability: Includes protection against overcharge, over-discharge, and short circuits with approximately 500 cycle times and ≤3% monthly self-discharge rate.
  • Flexible installation: Soft-pack packaging allows slight bending to fit irregular spaces in micro devices.
Main Applications
Smart Wearable Devices: Smart bracelets, GPS watches, motion trackers with 1-2 days of low-power use.
Miniature Digital Devices: Bluetooth headsets, voice recorders, MP3 players, cameras with 3-6 hours of use.
IoT Terminals: Wireless sensors, RFID tags, data collectors with long standby times.
Medical Devices: Blood glucose meters, pulse oximeters, massagers with stable discharge.
Toys and Models: Remote control cars, drones, robots with compact size and low-rate discharge.
Backup Power: Auxiliary power for smart door locks, emergency power for small devices.

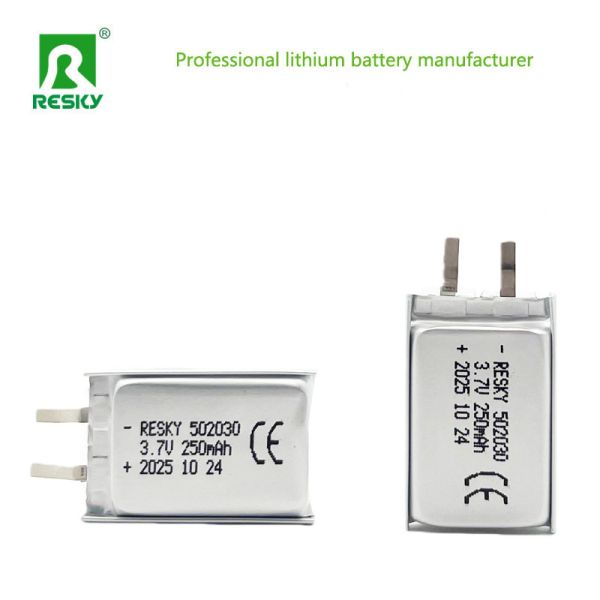

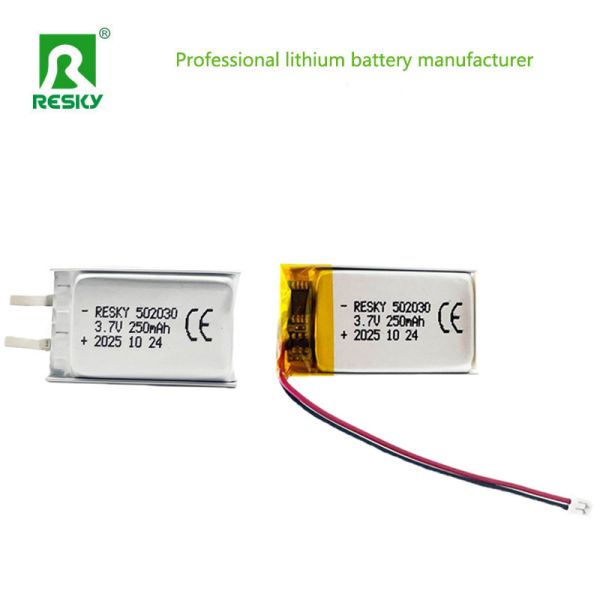

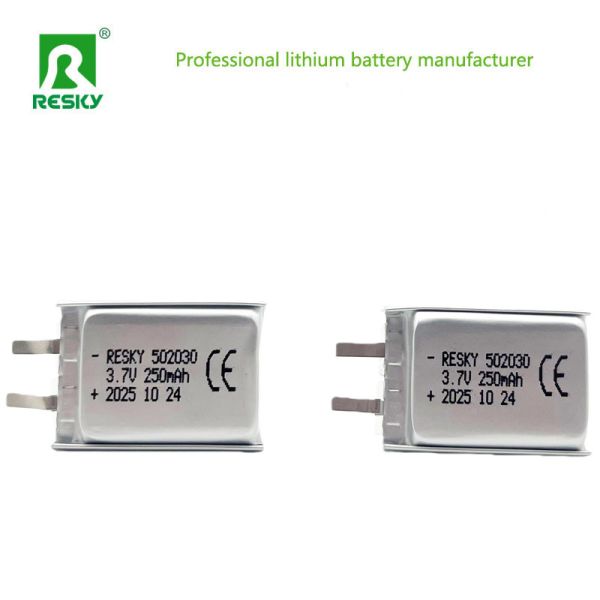

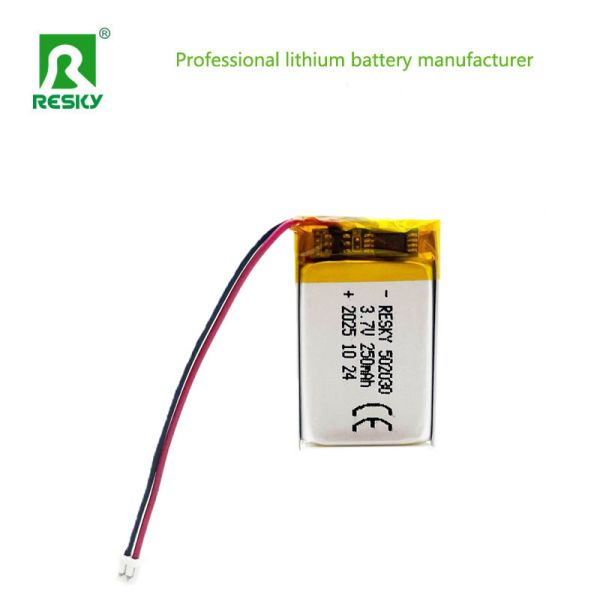

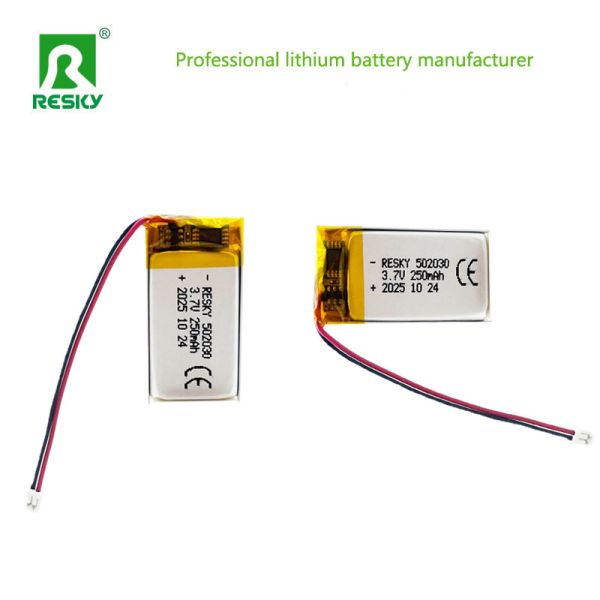

Product Images
Rechargeable Lifepo4 Battery Cell 502030 3.7v 250mAh 0.925wh Power Lithium Ion Polymer Battery Rechargeable Lifepo4 Battery Cell 502030 3.7v 250mAh 0.925wh Power Lithium Ion Polymer Battery Rechargeable Lifepo4 Battery Cell 502030 3.7v 250mAh 0.925wh Power Lithium Ion Polymer Battery Rechargeable Lifepo4 Battery Cell 502030 3.7v 250mAh 0.925wh Power Lithium Ion Polymer Battery Rechargeable Lifepo4 Battery Cell 502030 3.7v 250mAh 0.925wh Power Lithium Ion Polymer Battery
