Specifications
Brand Name :
CATL
Model Number :
302Ah
Certification :
CE/FCC/ROHS
Place of Origin :
china
MOQ :
4
Price :
negotiable
Payment Terms :
D/A,D/P,T/T,paypal
Supply Ability :
1000pcs/day
Delivery Time :
15 days
Packaging Details :
carton box
Nominal voltage :
3.2V
Nominal capacity :
320AH
cycle life :
2000 times
Internal impedence :
≤0.40mΩ
MCC :
302A
MCDC :
302A
Net Weight :
5.5±0.2 Kg
size :
72*174*204mm
Description
Grade A+ LiFePO4 Rechargeable Batteries 302ah 3.2V With Busbars Bolts
Premium CATL 302Ah LiFePO4 Battery for Solar Energy Storage

Contemporary Amperex Technology Co., Limited (CATL) is a global leader in lithium-ion battery development and manufacturing, with comprehensive businesses covering R&D, manufacturing, and sales in battery systems for new energy vehicles and energy storage systems.

CATL Battery Series Specifications
ITEM CATL 60AH CATL 75AH CATL 100AH CATL 240AH CATL 271AH CATL 310AH
Nominal capacity 60AH 75AH 100AH 240AH 271AH 310AH
Nominal voltage 3.2V 3.2V 3.2V 3.2V 3.2V 3.2V
Discharge cut-off voltage 2.5V 2.5V 2.8V 2.5V 2.5V 2.5V
Charge current 12A(0.2CA to 3.65V) 15A(0.2CA to 3.65V) 20A 48A 54.2A 62A 0.2C
Charge voltage 3.65V 3.65V 3.65V 3.65V 3.65V 3.65V
Max charge voltage 3.7V 3.7V 3.7V 3.7V 3.7V 3.7V
Fast charge current 60A 75A 100A 240A 271A 310A
Max continuous charge current 60A 75A 100A 240A 271A 310A
Max continuous discharge current 90A 112.5A 100A 240A 271A 310A
Weight 1.69KG 2.12KG 2.3KG 5.1KG 5.33KG 6KG
Size 150.5*174.5*32.5mm 128*174*48mm 168*200*34.5mm 200*174*75mm 200*174*75mm 72*174*204mm
Internal impedance ≤0.7mΩ ≤0.7mΩ ≤0.7mΩ ≤0.5mΩ ≤0.3mΩ ≤0.5mΩ
CATL 302AH Detailed Specifications
ITEM CATL 302AH
Nominal capacity 302Ah
Nominal voltage 3.2V
Discharge cut-off voltage 2.5V
Charge current 62A 0.2C
Charge voltage 3.65V
Max charge voltage 3.7V
Fast charge current 310A
Max continuous discharge current 2C for 60S,1C for continuous
Max Discharge Current 2C for 60S,1C for continuous
Weight 6KG
Size 72*174*204mm
Cycle life ≥3500 cycle

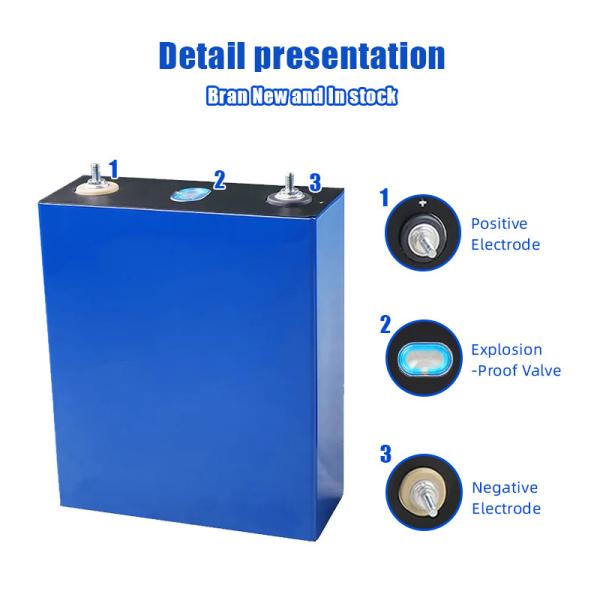

3.2V LiFePO4 302AH large capacity, aluminum housing.

Product Features

Grade A CATL 302Ah LFP cell with intact QR code. Brand New! Tested capacity ranges 305-320ah.

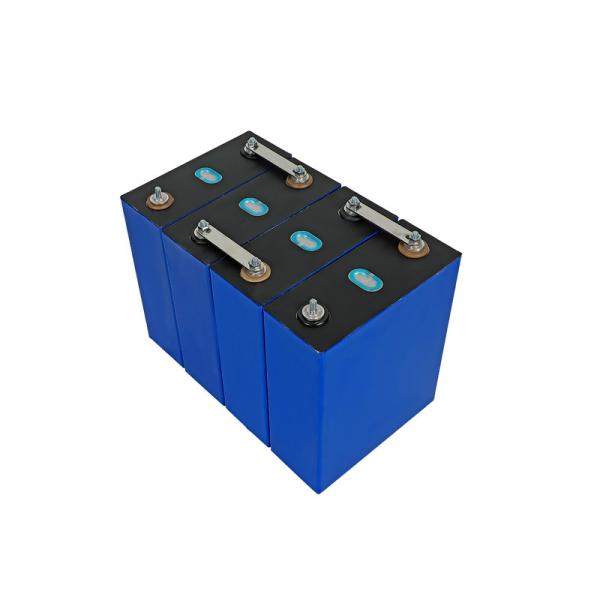

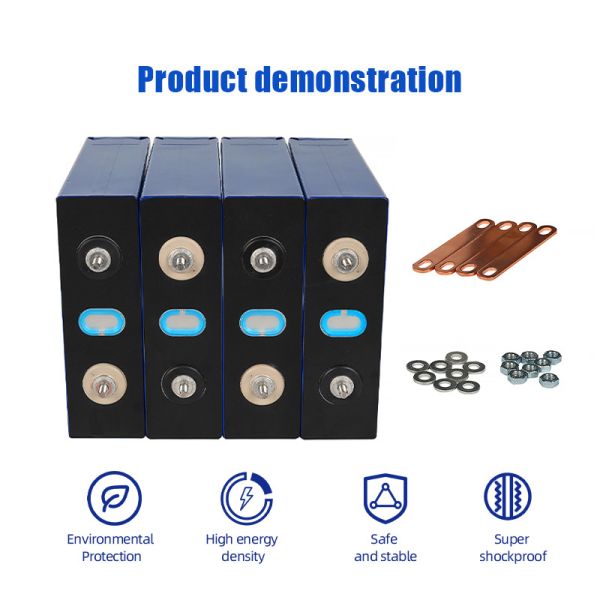

Comes with fixed stud, including busbars and nuts for connection.

  • Busbars size: 90*20*2mm
  • Screw size: M6
  • All batteries tested for Voltage and Internal resistance
Connection Method

Screw connected - the prismatic battery cell can be easily mounted/connected with busbars/screws. You can handle it DIY.

Grade A+ CATL 302Ah 3.2V LiFePO4 Battery with 6000 Cycles and Busbars for Solar Energy Storage Grade A+ CATL 302Ah 3.2V LiFePO4 Battery with 6000 Cycles and Busbars for Solar Energy Storage Grade A+ CATL 302Ah 3.2V LiFePO4 Battery with 6000 Cycles and Busbars for Solar Energy Storage
Technical Advantages
  • Safety: Safest Li-Ion battery, built in PCM/PCB, none fire or explosive
  • Clean Energy: Green energy, no toxic material contained
  • Long Life Cycle: 80% capacity remain after 500 times deep cycle
  • No Memory Effect: Highly efficient charge anytime, no reduction of capacity
  • Operation Temperature: -20~55°C
  • High Temperature Performance: Good performance at high temperature and high temperature resistance
  • Low Self-discharge: < 3% monthly
Grade A+ CATL 302Ah 3.2V LiFePO4 Battery with 6000 Cycles and Busbars for Solar Energy Storage Grade A+ CATL 302Ah 3.2V LiFePO4 Battery with 6000 Cycles and Busbars for Solar Energy Storage
DIY Safety Guidelines
  • Exercise caution when working with all electrical equipment
  • Wear safety glasses, gloves etc when appropriate
  • Sparks & Flashes can damage your eyes
  • Ensure cells are within operating temperature range prior to use
  • Do Not Use if cells are punctured, damaged or leaking
  • Provide adequate protection to cells during assembly & use thereafter
  • Dispose of properly to recycling or similar facility
  • Do Not submerge in water
  • Do Not allow to come in contact with direct heat, extreme temperatures or fire
  • Prevent harsh impacts or extreme vibrations which can cause immediate or cumulative damage
Performance & Applications

Deep cycle, more than 2000 times life span. Longer life than lead acid battery.

Grade A+ CATL 302Ah 3.2V LiFePO4 Battery with 6000 Cycles and Busbars for Solar Energy Storage

This lithium battery is available for many applications: golf cart, RV, solar storage system, E-motorcycle, Home energy storage system, powerwall etc.

Grade A+ CATL 302Ah 3.2V LiFePO4 Battery with 6000 Cycles and Busbars for Solar Energy Storage
Shipping & Delivery

Shipping to USA: By sea + Express (DDP, Tax free)

  • ETD: 5-8 days
  • ETA: 25-35 days after sailing
  • Tracking updated after pick up by local express
  • Usually takes 15-25 days after sailing

Shipping to EU: By railway + Express (DDP, Tax free). Except Switzerland, Romania

  • ETD: 5-8 days
  • ETA: 30-45 working days after shipping
  • Tracking updated after pick up by local express
  • Usually takes 25-40 working days after shipping

Other: Some remote areas not listed. Please provide shipping address and zip code to us to check.

Grade A+ CATL 302Ah 3.2V LiFePO4 Battery with 6000 Cycles and Busbars for Solar Energy Storage
About Our Company

Changsha Deligreen Power Co. LTD, founded in 2010, is a "Green Energy Solution Service Provider".

We focus on newest technology, new ideas, hard-working and honest people. Our expertise covers lithium rechargeable battery, BMS, Balancer, charger and relative products.

Main Applications: electric bicycle, scooter, motorhome, AGV, solar/wind system, Energy storage system, truck and more.

Our Promises:

  • "Real" lithium capacity
  • "100%" refund for any quality problem
  • "100%" replacement for any shipping damage
  • Lifetime fast technical support

Customers' satisfaction is our endless pursuing.

Grade A+ CATL 302Ah 3.2V LiFePO4 Battery with 6000 Cycles and Busbars for Solar Energy Storage Grade A+ CATL 302Ah 3.2V LiFePO4 Battery with 6000 Cycles and Busbars for Solar Energy Storage
Frequently Asked Questions
What is the life expectancy of a Lithium battery?

The typical estimated life of the Lithium Iron Phosphate (LiFePO4) battery is 5-15 years or 2000 to 8000 charge cycles. One charge cycle is a period of use from fully charged, to fully discharged, and fully recharged again.

Where can I get the price?

Please Click Contact Now or Request a Quote. We will offer you the best quote in 24 hours after we get the product specifications such as voltage capacity application etc.

How can you guarantee your quality?

Normally we will send you a sample to confirm everything first. We will make the big order exactly the same as you request. And we offer 1 year warranty for small battery packs, 2-3 years for battery.

What is your term for payment?

We accept T/T, L/C, Paypal, Western Union, Money Gram, Ali Express, Cash, etc.

What kind of certificates do you have?

We can provided CE, ROHS, MSD, SHIPPING CERTIFICATIONS.

Grade A+ CATL 302Ah 3.2V LiFePO4 Battery with 6000 Cycles and Busbars for Solar Energy Storage Grade A+ CATL 302Ah 3.2V LiFePO4 Battery with 6000 Cycles and Busbars for Solar Energy Storage Grade A+ CATL 302Ah 3.2V LiFePO4 Battery with 6000 Cycles and Busbars for Solar Energy Storage Grade A+ CATL 302Ah 3.2V LiFePO4 Battery with 6000 Cycles and Busbars for Solar Energy Storage
