Specifications
Brand Name :
ETC
Model Number :
277Ah
Certification :
CE/FCC/ROHS
Place of Origin :
china
MOQ :
4
Price :
negotiable
Payment Terms :
D/A,D/P,T/T,paypal
Supply Ability :
1000pcs/day
Delivery Time :
15 days
Packaging Details :
carton box
Nominal voltage :
3.2V
Nominal capacity :
277AH
cycle life :
3000 times
Internal impedence :
≤0.40mΩ
MCC :
277A
MCDC :
277A
Net Weight :
5.35±0.27KG
size :
174.6*71.6*207.1mm±0.5mm
Description

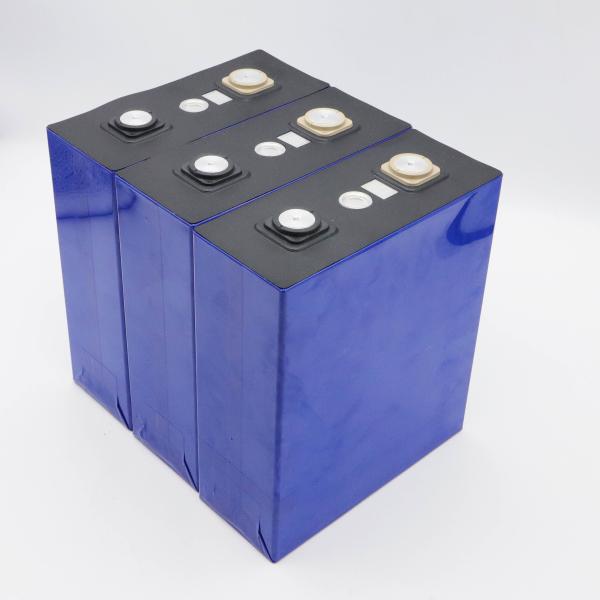

ETC 3.2V 277ah Lithium Lifepo4 Rechargeable Battery Cell for 48V 24V System
Product Overview

Rechargeable ETC 3.2V 277ah Lithium Cell Lifepo4 Battery for 48V 24V systems. This is a Grade A, brand new battery cell with QR code identification.

Technical Specifications
Normal Capacity 277ah
Normal Voltage 3.2V
Charging Voltage 3.65 ±0.05 V
Internal Resistance ≤0.4mΩ
Discharge Ending Voltage 2.5V
Standard Charging Current 0.5C
Standard Discharge Current 1.0C
Max Charge Current 1.0C
Max Discharge Current 3C
Cycle Life 3000 times
Weight 5.35±0.27kg
Size 174.6*71.6*207.1mm±0.5mm
ETC 3.2V 277AH Lithium Lifepo4 Rechargeable Battery Cell with 3000 Cycle Life and Screw Connected for 48V 24V Systems
Connection Method

Screw-connected prismatic battery cell that can be easily mounted and connected with busbars and screws. Suitable for DIY projects.

ETC 3.2V 277AH Lithium Lifepo4 Rechargeable Battery Cell with 3000 Cycle Life and Screw Connected for 48V 24V Systems ETC 3.2V 277AH Lithium Lifepo4 Rechargeable Battery Cell with 3000 Cycle Life and Screw Connected for 48V 24V Systems
Key Features
  • Safest Lithium battery with built-in PCM/PCB protection
  • None fire or explosive risk
  • Clean and Green energy with no toxic materials
  • Long life cycle with 80% capacity remaining after 500 deep cycles
  • No memory effect - highly efficient charging anytime
  • Operation temperature: -20~55°C
  • Good performance at high temperature with high temperature resistance
  • Low self-discharge rate: < 3% monthly
DIY Assembly Guidelines
  • Exercise caution when working with electrical equipment
  • Wear safety glasses and gloves when appropriate
  • Ensure cells are within operating temperature range prior to use
  • Do not use if cells are punctured, damaged or leaking
  • Provide adequate protection to cells during assembly and use
  • Dispose of properly at recycling facilities
  • Do not submerge in water
  • Do not expose to direct heat, extreme temperatures or fire
  • Prevent harsh impacts or extreme vibrations
Performance & Lifespan

Deep cycle capability with more than 2000 times life span. Longer life than traditional lead acid batteries.

Packaging

Protected with foams and UN-certified cartons for safe transportation.

ETC 3.2V 277AH Lithium Lifepo4 Rechargeable Battery Cell with 3000 Cycle Life and Screw Connected for 48V 24V Systems ETC 3.2V 277AH Lithium Lifepo4 Rechargeable Battery Cell with 3000 Cycle Life and Screw Connected for 48V 24V Systems
Applications

Suitable for golf carts, RVs, solar storage systems, E-motorcycles, home energy storage systems, powerwalls, and various other applications.

Safety Instructions
  • Do not submerge the battery in water
  • Do not insert batteries with (+) and (-) reversed
  • Do not disassemble, dispose in fire, heat or short circuit
  • Do not expose batteries to sunlight for long periods
  • Do not keep batteries close to children
  • Do not short circuit the battery in any situation
  • Do not discharge new batteries - fully charge them first
  • Do not open the battery safety valve
  • Do not violently wrest the screw on the terminal
  • Do not mix different brands of batteries in one pack
  • Do not mix different capacity or condition batteries together
ETC 3.2V 277AH Lithium Lifepo4 Rechargeable Battery Cell with 3000 Cycle Life and Screw Connected for 48V 24V Systems
Shipping & Delivery

USA Delivery:

By sea + Express (DDP, Tax free)
ETD: 5-8 days
ETA: 25-35 days after sailing
Tracking updates after local express pickup (15-25 days after sailing)

EU Delivery:

By railway + Express (DDP, Tax free) - Except Switzerland, Romania
ETD: 5-8 days
ETA: 30-45 working days after shipping
Tracking updates after local express pickup (25-40 working days after shipping)

For remote areas not listed, please provide shipping address and zip code for verification.

About Changsha Deligreen Power Co., LTD

Founded in 2010, we are a "Green Energy Solution Service Provider" specializing in lithium rechargeable batteries, BMS, balancers, chargers and related products.

Main applications include electric bicycles, scooters, motorhomes, AGVs, solar/wind systems, energy storage systems, trucks and more.

Our Promises:

  • Real lithium capacity
  • 100% refund for any quality problem
  • 100% replacement for any shipping damage
  • Lifetime fast technical support
ETC 3.2V 277AH Lithium Lifepo4 Rechargeable Battery Cell with 3000 Cycle Life and Screw Connected for 48V 24V Systems
Frequently Asked Questions

Q1: Are busbars and screws included and free?

Yes, we ship the battery with busbar connectors and screws for free.

Q2: What is the lifecycle of the battery?

The typical estimated life of Lithium Iron Phosphate (LiFePO4) batteries is 5-8 years, or 2000 to 5000 charge cycles, depending on specific usage conditions such as depth of discharge, working current rate, working temperature, and whether a balancer is used.

Q3: Can I use a normal solar controller with LiFePO4 batteries?

We always recommend using LiFePO4/Lithium Ion solar controllers. Lead Acid solar controllers provide constant pulse current that might damage the PCB over time, compromising battery protection.

Q4: Can resellers get special pricing?

Yes, we support partners who share our values for creating a clean and green world with comprehensive service and pricing support.

Q5: Why can't I buy batteries directly from your store?

This typically occurs when we cannot provide accurate logistics pricing for your country. Please contact us directly for any requirements.

Q6: Why is there no tracking update after weeks of waiting?

This is normal - tracking numbers are not updated until packages arrive in your country. No tracking is available while packages are in transit by train.

Q7: Are the cells balanced before delivery?

Yes, we match and balance all cells to ensure internal resistance, voltage and capacity are completely matched and balanced before delivery.
