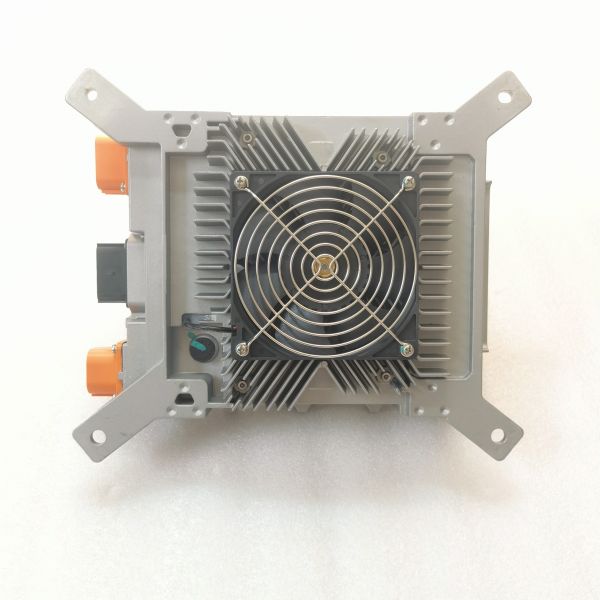

6.6KW IP66 Air Cooling EV OBC Charger for Electric Vehicles with High Efficiency
6.6KW IP66 Air Cooling EV OBC Charger for Electric Vehicles with High Efficiency
Specifications
Brand Name :
Deligreen
Model Number :
6.6KW
Certification :
CE/FCC/ROHS
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T,Western Union
Supply Ability :
1000pcs/day
Delivery Time :
10 days
Packaging Details :
35X24X20 cm/box
Input voltage range :
AC 85V~265VAC
Input current :
32A
Output Rated voltage :
48V/72v/84V/96V/144V/312V
Max charging voltage :
177V
Max output current :
60A
Power factor :
≥0.99 Half load
Efficiency :
≥93% Full load
IP :
IP66
Application :
motorcycles/boats/surfboards
Net Weight :
8.5kg
Description
TC Charger 450V Enforce Air Cooling 6.6KW EV OBC Charger
Product Overview

TC Charger NEW VERSION — HK-L series 6.6KW charger is a product specially designed for electric vehicle power battery supplementary electric energy according to the national standard of charger. This product features high efficiency, small size, high stability, long life, high protection level, high reliability, and complete protection functions. It is an ideal power source for electric vehicle charging.

6.6KW IP66 Air Cooling EV OBC Charger for Electric Vehicles with High Efficiency
Available Models
Model Cooling Method Voltage Platform Hardware Power Weight
HK-LF-108-60 Air cooling 108V 177V/60A 6.6KW 8.5kg
HK-LF-144-46 Air cooling 144V 202V/46A 6.6KW 8.5kg
HK-LF-312-20 Air cooling 312V 450V/20A 6.6KW 8.5kg
HK-LF-540-14 Air cooling 540V 680V/14A 6.6KW 8.5kg
Main Features
  • Support UDS diagnosis CAN wake-up function
  • Fully sealed process can work reliably under conditions of -40℃ to +85℃
  • Built-in temperature sensor to shut down output under hazardous operating conditions (internal 90°C)
  • Protection class IP67 - Can work safely under short-term water immersion conditions
Technical Specifications
Output Specifications
Parameter 96V/108V 144V 312V 540V
Output Voltage Range 65-140V 90-195V 250-450V 350-680V
Output Current 60A 46A 20A 14A
Output Power 6600W@220VAC 3300W@110VAC
Output Mode CV / CC
CV Accuracy ±1%
CC Accuracy ±2%
Ripple Voltage Coefficient 5%
Input Specifications
Input Voltage Range AC 90-264V
Frequency 45-65Hz
Input Current 32A
Power Factor ≥0.98 (more than half load)
Efficiency ≥93% (full load)
Stand-by Consumption ≤5W
Low Voltage Output
Output Mode Constant Voltage
Output Voltage 13.8V
Rated Current 5A
CV Accuracy ±2%
Output Power ≥62.5W
Ripple Voltage Coefficient 1%
Product Images
6.6KW IP66 Air Cooling EV OBC Charger for Electric Vehicles with High Efficiency
6.6KW IP66 Air Cooling EV OBC Charger for Electric Vehicles with High Efficiency
6.6KW IP66 Air Cooling EV OBC Charger for Electric Vehicles with High Efficiency
6.6KW IP66 Air Cooling EV OBC Charger for Electric Vehicles with High Efficiency
6.6KW IP66 Air Cooling EV OBC Charger for Electric Vehicles with High Efficiency
Product Appearance
  • Outer surface is flat, without obvious defects such as scratches and deformation
  • Surface coating is uniform and consistent
  • Nameplates and signs are firmly installed with clear handwriting
  • Parts and components are fastened and reliable, free from defects and damages
  • Each product marked with product logo including part number, trademark, model, production number, company name, and warning instructions
Packaging, Transportation & Storage
Packaging

Product name, model, specification, and manufacturer name are printed on the label. The box contains the product manual.

Transportation

Suitable for transportation by car, boat and airplane. Protected from sun, moisture with civilized transportation during transit.

Storage

When not in use, store in packing box in clean, dry, well-ventilated environment at 5℃ to 40℃. Avoid exposure to sunlight, fire and water. Shelf life of 2 years from manufacturer date. If storage exceeds 2 years, professional testing required before use.

Frequently Asked Questions
  • Is CAN protocol available?
    Yes, we can supply CAN for your battery communication.
  • Is there LED light?
    Yes, there are RED/YELLOW/GREEN LED lights for charging status indication.
  • Can Li-ion battery high-power chargers be charged in constant voltage mode?
    Lithium battery uses constant current charging method.
  • What is Single-phase electricity?
    Single-phase electricity refers to the form of electric energy transmission consisting of a phase wire (live wire) and a neutral wire.
Where is the best car battery charger to buy?
Deligreen supplies high quality car battery chargers that are highly accepted by customers. Please send your inquiry for prompt contact.
