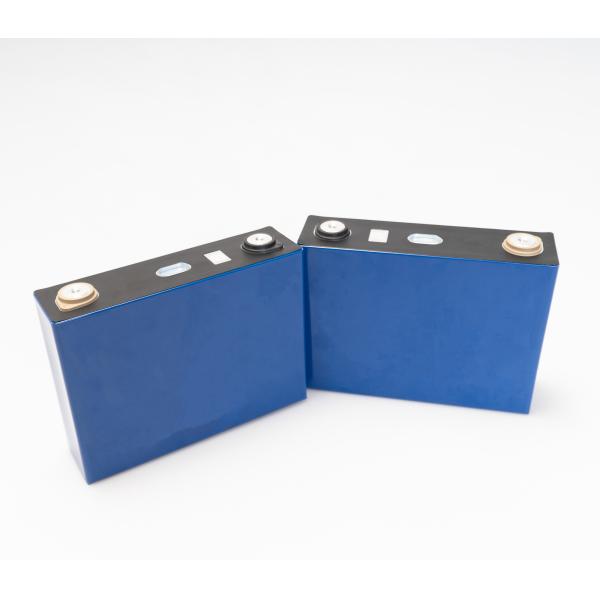

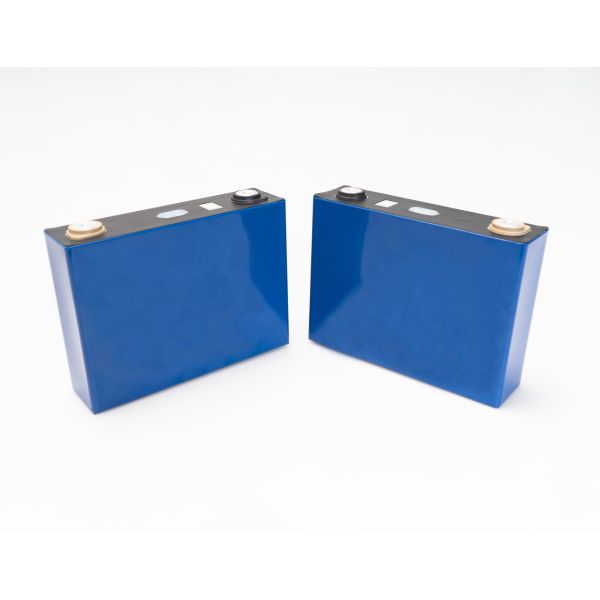

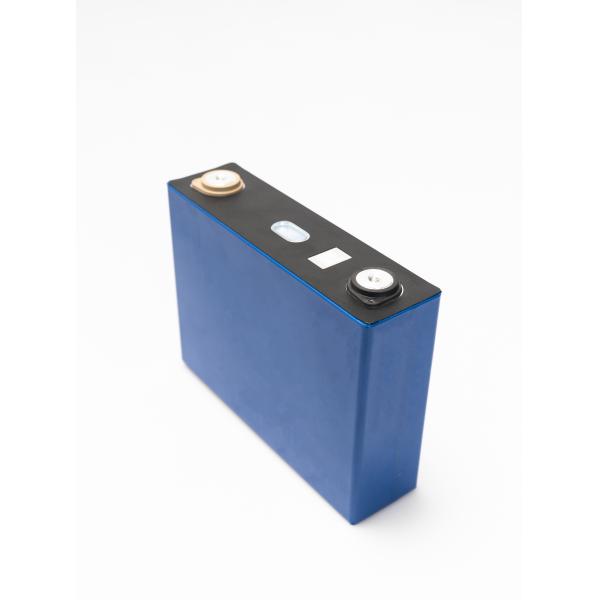

3.2V 86AH LFP Prismatic Lithium Ion Battery Cell with 6000 Cycles for Energy Storage
3.2V 86AH LFP Prismatic Lithium Ion Battery Cell with 6000 Cycles for Energy Storage
3.2V 86AH LFP Prismatic Lithium Ion Battery Cell with 6000 Cycles for Energy Storage
3.2V 86AH LFP Prismatic Lithium Ion Battery Cell with 6000 Cycles for Energy Storage
3.2V 86AH LFP Prismatic Lithium Ion Battery Cell with 6000 Cycles for Energy Storage
3.2V 86AH LFP Prismatic Lithium Ion Battery Cell with 6000 Cycles for Energy Storage
3.2V 86AH LFP Prismatic Lithium Ion Battery Cell with 6000 Cycles for Energy Storage
3.2V 86AH LFP Prismatic Lithium Ion Battery Cell with 6000 Cycles for Energy Storage
3.2V 86AH LFP Prismatic Lithium Ion Battery Cell with 6000 Cycles for Energy Storage
3.2V 86AH LFP Prismatic Lithium Ion Battery Cell with 6000 Cycles for Energy Storage
Specifications
Brand Name :
Deligreen
Model Number :
LFP 3.2V 86AH
Certification :
CE,ROHS,MSDS,etc
Place of Origin :
China
MOQ :
10PCS
Price :
USD59.99/PC
Payment Terms :
L/C,D/A,T/T,Western Union,MoneyGram
Supply Ability :
10000PCS/DAY
Delivery Time :
7-15 business days
Packaging Details :
cartons + pallet
Modle number :
LFP 3.2V 86AH
Voltage :
3.2V
Capacity :
86AH
Cycle life :
6000Cycles
Shipping capacity :
<30%SOC
Operating temperature (charging) :
-15-55°C
Operating temperature (discharge) :
-30 - 55°C
Weight :
2.20±0.2 Kg
Self-discharge :
<3.5%/Month
Description
LFP 3.2V 86Ah Prismatic Lithium Ion Battery Cell
Rechargeable battery cell 3.2V 86Ah Prismatic 3.2V Lithium Battery Cell
Applications
Electric Boat
Solar Street Light
Electric Golf Car
Telecom Backup System
Electric Vehicle
UPS Backup Power
Energy Storage System
Forklift
On/Off Grid Solar System
RV, Caravan, Camping Car
Battery Specifications
No. Parameter Specification Condition / Note
2.1.1 Typical capacity 86Ah At a 1C discharge current (25±2°C CC+CV)
2.1.2 Minimum capacity 86Ah At a 1C discharge current (25±2°C CC+CV)
2.1.3 Operating voltage 2.5 ~ 3.65V
2.5 ~ 3.65V
2.0 ~ 3.65V		 -5°C<T<55°C
-20°C≤T<-5°C
-30°C≤T<-20°C
2.1.4 Impedance (1kHz) <0.40mΩ at a fresh state
2.1.5 Shipping capacity <30%SOC SOC conformity at the same batch
2.1.6 Operating temperature (charging) -15-55°C See paragraph 2.2
2.1.7 Operating temperature (discharge) -30 - 55°C See paragraph 2.3
2.1.8 Weight 2.20±0.2 Kg including hard case and cap
2.1.9 Self-discharge <3.5%/Month Count after fresh cell need Standard Charge to 50%SOC and storage at 25±2°C for 3 month
2.1.10 Cell dimension Reference specification 9 -
Charging Parameters
No. Parameter Specification Condition / Note
2.2.1 Standard charge current 1/2C 25±2°C
2.2.2 Standard charge voltage 3.65V -15-55°C
2.2.3 Standard charge method 1/2C constant current charge to 3.65V for cell, then switch to constant voltage charge until charge current declines to <5.0±0.3A -
2.2.4 Standard charge temperature 25±2°C 1/2C
2.2.5 Absolute charge temperature (Cell temperature) -15-55°C Stop charging once cell Temperature is outside this range regardless of the charging mode adopted
2.2.6 Absolute charge voltage 3.65V max. Stop charging once voltage exceeds this voltage regardless of the charging mode (including regeneration) adopted
Discharging Parameters
No. Parameter Specification Condition / Note
2.3.1 Standard discharge current 1/2C 25±2°C
2.3.2 Maximum discharge current (continuous) 1C N.A.
2.3.3 Maximum discharge current (long pulse) 2C 120 seconds duration maximum followed by a "zero current rest period" of same duration
2.3.4 Maximum discharge current (short pulse) 3C 60 seconds duration maximum while cell Temperature < 50°C and SOC>40%SOC; 10 seconds duration maximum while cell Temperature < 50°C and SOC<40%SOC;
2.3.5 Discharge cut-off voltage 2.50V -5 -55°C
Safety and Reliability
This product is tested and in full compliance with requirements under the Chinese Coercive Certification and UN38.3 transportation certification.
Temperature Rise
No. Parameter Specification Condition / Note
3.1 Temperature Rise (continuous) < 10°C When a cell is discharged at a 43.0A current for a period of 120min
3.2 Temperature Rise (pulse) <5°C When a cell is discharged at a 258.0A current for a period of 10s when SOC≥20%
The cells shall be allowed to cool down by unrestricted natural convection in a reasonably large room with stable data logging with respect to time. The temperature should be measured at the center of cell surface. Temperature rise is defined as temperature after discharge minus temperature just before discharge.
Delivery Time
Shipping Method Courier Shipping Time
Express Shipping DHL About 4-9 days
Fedex / TNT / Aramax About 5-10 days
By Air About 4-7 days
By Train About 45-60 days
UPS About 15-22 days
Standard Shipping Standard Shipping About 20-45 days
China post / ePacket About 20-45 days
There are many factors (holiday, extreme weather, airline adjustment, etc) that may affect the delivery time. Please take above information for reference only.
Company Profile
Company name: Changsha Deligreen Power Co., Ltd
Business Type: Manufacturer, Exporter, Distributor
Location: China
Product Category: Deligreen battery
Main Item / Product: Lithium battery, lithium battery pack, BMS
Main Target Region: World Wide
Year Established: 2010
Contact: Mandy Chou
Wechat/Whatsapp: +8615074995718
Email: mandy@deligreenpower.com
Frequently Asked Questions
Q: Does your company provide ODM or OEM services?
A: Yes, we can make it for you.
Q: How can I pay for the battery?
A: You can order directly from our online store or payment via Paypal or T/T.
Q: How about your production time?
A: For battery cells about 7 days. For battery pack about 15 days.
