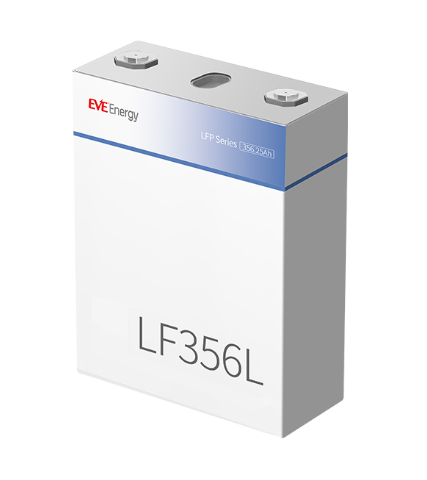

8000 Cycles EVE 356Ah Lithium LiFePO4 battery LF356L Cell
8000 Cycles EVE 356Ah Lithium LiFePO4 battery LF356L Cell
Specifications
Model Number :
356Ah
Nominal capacity :
356AH
Payment Terms :
D/A,D/P,T/T,paypal
Net Weight :
6220 g ±150 g
Price :
negotiable
MCDC :
0.5C
Certification :
CE/FCC/ROHS
cycle life :
8000 times 70% SOH
MOQ :
4
Delivery Time :
15 days
MCC :
0.5C
standard charging current :
0.5C
Supply Ability :
1000pcs/day
size :
186.6*72*211.6mm L*W*H
Brand Name :
EVE
Nominal voltage :
3.2V
Place of Origin :
china
Internal impedence :
0.15 mΩ 0.05 mΩ
Packaging Details :
carton box
standard discharging current :
0.5C
Description
Brand Name
EVE
Voltage
3.2V
Capacity
356.25Ah
Energy
1140Wh
Cycle life
8000 cycles, 70% SOH(25ºC)
Initial IR
0.15mΩ ± 0.05 mΩ
Weight
6220 g ± 150 g
Dimension
186.6*72*211.6mm L*W*H
Storage Type
-20ºC ~ 45ºC(1months)
Charging Temperature
0ºC ~ 60ºC
Discharging Temperature
-30ºC ~ 60ºC
Product name
EVE 356ah 3.2V lifepo4 battery
Application
Electric energy storage, Industrial and commercial energy storage, Household energy storage, Boat energy storage.

The new EVE 356Ah cell represents a clear upgrade over the 314Ah MB31 model, primarily focused on delivering higher energy density and greater efficiency for large-scale energy storage systems. The table below outlines the core differences.

Feature New EVE 356Ah Cell EVE MB31 314Ah Cell Advantage of 356Ah Cell
Nominal Capacity 356.25Ah 314Ah- Higher capacity per cell, reducing the total number of cells needed for a system.
Nominal Energy 1140Wh (1.14kWh) ~1004.8Wh 13.5% more energy per cell, leading to a more compact battery pack for the same total energy.
Initial Internal Resistance 0.15mΩ ± 0.05mΩ 0.18mΩ ± 0.05mΩ- Lower internal resistance translates to higher efficiency, less heat generation, and improved overall performance.
Weight 6620g ± 150g ~5420g - 5600g Heavier due to higher capacity, but the energy-to-weight ratio is superior as it stores more energy.
Dimension (LWH) 2090*186.6*123mm ~207.2*173.7*71.7mm Significantly larger to accommodate the higher capacity cells.

Superior Electrical Performance

  • With a lower internal resistance of 0.15mΩ, the new cell is more efficient. It experiences less voltage drop and generates less heat during high-current charge and discharge cycles. This is a critical improvement for applications requiring high power output and contributes to the overall longevity of the battery pack.

  • Robust and Versatile Thermal Management

    • The new cell shares the same wide operating temperature ranges as the MB31: charging from 0°C to 60°C and discharging from -30°C to 60°C. This rugged thermal performance ensures reliable operation in a variety of climates without needing intensive thermal management systems.

    • It can discharge at 0.5C at minus 30 degrees Celsius, while 314ah can no longer discharge at minus 30 degrees Celsius.
