Specifications
Brand Name :
Deligreen
Model Number :
CALB-72AH
Certification :
CE/FCC/ROHS
Place of Origin :
china
MOQ :
4
Price :
59
Supply Ability :
1000pcs/day
Delivery Time :
15 days
Packaging Details :
carton box
Nominal voltage :
3.2V
Nominal capacity :
72AH
cycle life :
3500 times
Internal impedence :
≤0.3MΩ
MCC :
72A
MCDC :
144A
Net Weight :
1.9±0.1kg
size :
135*29*222±2mm
Description

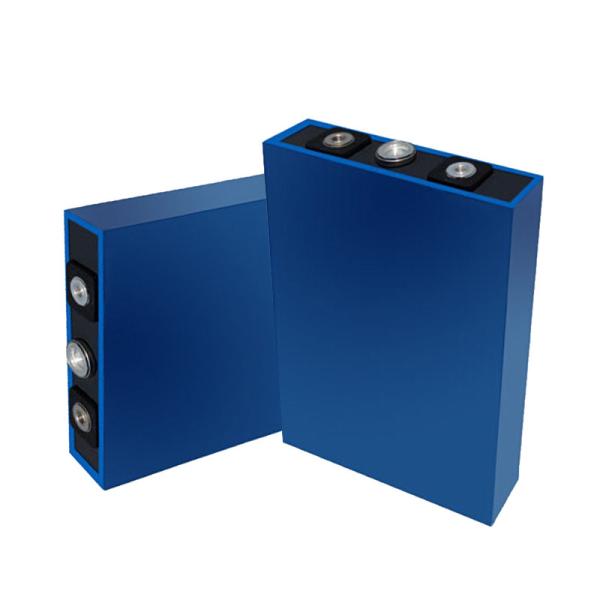

Deep Cycle 180Wh/Kg 72Ah Lithium Ion Solar Battery
Product Overview

Deep cycle CALB power battery 72Ah lithium battery for energy storage system/RV

About CALB

CALB is known as a research and manufacturer of batteries. This group owns many intellectual properties, making their products popular in the market. Through these years, CALB batteries have been shipped worldwide, contributing to green power usage and reducing CO2 emissions.

  • Scientific Research Innovation Platform: Ten major scientific research innovation platforms including "National Enterprise Technology Center", "Postdoctoral Research Workstation", and "Henan Engineering Technology Research Center"
  • Intellectual Property: 100% coverage of core technology intellectual property rights; patents covering China, United States, Europe and other regions; China Excellent Patent Award winner
  • Scientific Achievements: 22 research projects passed scientific achievements appraisal, with 10 identified as international advanced level and 1 as international leading level

Deligreen has been working with CALB for years and is authorized to distribute CALB Grade A brand new batteries.

Technical Specifications
Specification Details
Rechargeable YES
Max Charge Current 1C (72A)
Max Discharge Current 1C continuous, 2C for 3min, 3C for 10S
Nominal Capacity 72Ah
Max Charge Voltage 3.65V
End Voltage (Cut off) 2.5V
Nominal Voltage 3.2V
Cycle Life ≥2000 cycles
Dimension 135×29×222±2mm
Net Weight 1.9±0.1 kg
Suitable Applications Engine starting battery, electric bicycle/motorcycle/scooter, golf trolley/carts, power tools, solar and wind power systems, RV, caravan
Quality Assurance

CALB High Quality: 100% pre-tested before shipment

Excellent customer service and technical support

Lithium vs Lead Acid Battery Comparison
Battery Type LiFePO4 Battery Lead Acid Battery
Nominal Voltage 3.2V 2V
Energy Density 180Wh/kg 30Wh/kg
Weight Light Heavy
CBM Small Big
Safety Rate High Low
Cycles 3500 500
Memory Effect NO YES
Environmental Protection Environmental protection and pollution-free Pollution

Cost Savings: LiFePO4 batteries save more money due to deeper cycle life, eliminating frequent replacements required with lead acid batteries. Lithium batteries are lighter and suitable for applications requiring smaller space.

LiFePO4 vs NCM Comparison
Item LiNixCoyMnzO2 (NCM) LiFePO4
Nominal Voltage 3.7V 3.2V
Energy Density 180Wh/kg 120Wh/kg
Working Temperature -30-50°C -20-60°C
Out of Control Temperature Below 300°C Above 500°C
Safety Performance 4 stars 5 stars
Cycle Life 2000 3500
Attenuation Fast Slow
Environmental Protection Nickel and cobalt Environmental protection and pollution-free
Cost High Low
Product Details

1. This item is 72Ah CALB item, A Grade and Brand New CALB LiFePO4 battery

2. Includes bus bars and bolts: One battery comes with one set of bus bars and bolts (e.g., 4 batteries include 4 bus bars and 8 bolts). Contact us for additional accessories.

Performance Curves
Deep Cycle 72Ah 3500 Cycles 180Wh/Kg Lithium Ion Solar Battery for Energy Storage

A typical curve of single cell discharged at room temperature

Deep Cycle 72Ah 3500 Cycles 180Wh/Kg Lithium Ion Solar Battery for Energy Storage

A typical curve of single cell discharged with 0.3C at different temperatures

Deep Cycle 72Ah 3500 Cycles 180Wh/Kg Lithium Ion Solar Battery for Energy Storage

A typical curve of single cell discharged with 1C at room temperature

Design Features

New Version: Aluminum Shell/Housing

Deep Cycle 72Ah 3500 Cycles 180Wh/Kg Lithium Ion Solar Battery for Energy Storage

Applications: Golf cart, RV, solar storage system, E-motorcycle, Home energy storage system, powerwall, camping, yacht, etc.

Deep Cycle 72Ah 3500 Cycles 180Wh/Kg Lithium Ion Solar Battery for Energy Storage
CALB offers 3 years warranty
Shipping & Delivery

Shipping to USA: By sea + Express (DDP, Tax free)
ETD: 5-8 days
ETA: 25-35 days after sailing
Tracking updated after local express pickup (15-25 days after sailing)

Shipping to EU: By railway + Express (DDP, Tax free) - Except Switzerland, Romania
ETD: 5-8 days
ETA: 30-45 working days after shipping
Tracking updated after local express pickup (25-40 working days after shipping)

Other Regions: For remote areas not listed, please provide shipping address and zip code for verification.

About Deligreen Power

Changsha Deligreen Power Co., LTD, founded in 2010, is a "Green Energy Solution Service Provider" specializing in lithium rechargeable batteries, BMS, balancers, chargers and related products.

Main Applications: Electric bicycle, scooter, motorhome, AGV, solar/wind systems, energy storage systems, trucks and more.

Our Promises:

  • "Real" lithium capacity
  • "100%" refund for any quality problem
  • "100%" replacement for any shipping damage
  • Lifetime fast technical support

Customers' satisfaction is our endless pursuit. For any concerns, email: info@deligreenpower.com

Frequently Asked Questions

1. Are the batteries GRADE-A, Brand NEW?
This item is 72Ah CALB item with consecutive barcodes, Grade A quality.

2. Do batteries come with busbars and bolts?
Price includes original bus bars, bolts and washers. Each battery includes one set (e.g., 4 batteries include 4 bus bars and 8 bolts). Contact for additional accessories.

3. What is the best lithium battery to buy?
There is no "best" battery, but the most suitable for your application. CALB prismatic lithium batteries offer high quality, good price, and well-known popularity.

4. What kind of packaging do the cells come in?
Each cell is packaged in thick PE foam or bag, then placed in 5-layer strong carton for protection.

5. How can I place an order?
We accept trade assurance orders online. For ready-to-ship products with clear shipping costs, you can place orders directly. Otherwise, provide shipping information to our sales team.

6. How can I get more help with my order?
Chat with our sales online or send inquiry email - we will respond as soon as possible.
