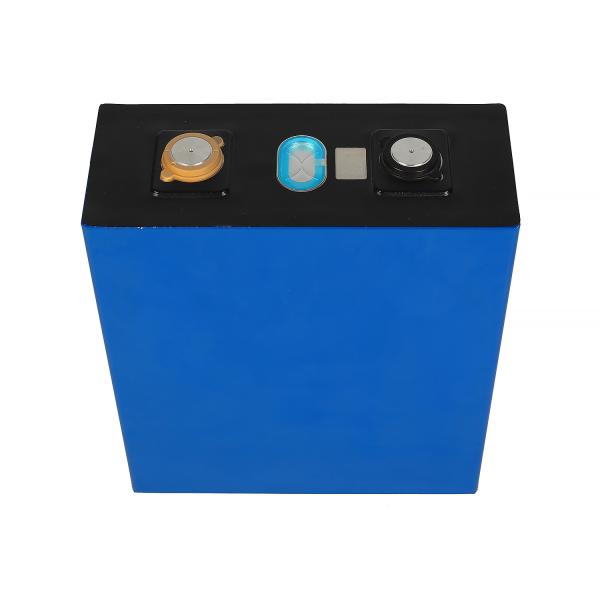

CATL 3.2V 271Ah LiFePO4 Battery with 3500 Cycles Low Self-Discharge and High Energy Density
CATL 3.2V 271Ah LiFePO4 Battery with 3500 Cycles Low Self-Discharge and High Energy Density
CATL 3.2V 271Ah LiFePO4 Battery with 3500 Cycles Low Self-Discharge and High Energy Density
CATL 3.2V 271Ah LiFePO4 Battery with 3500 Cycles Low Self-Discharge and High Energy Density
Specifications
Brand Name :
CATL
Model Number :
271ah
Certification :
CE/FCC/ROHS
Place of Origin :
China
MOQ :
4
Price :
negotiable
Payment Terms :
T/T,Western Union,D/P,D/A
Supply Ability :
1000pcs/day
Delivery Time :
10 days
Packaging Details :
carton box
Nominal capacity :
271AH
Nominal voltage :
3.2V
Internal impedence :
≤0.3MΩ
cycle life :
3500 times
MCC :
271A
MCDC :
271A
Net Weight :
5.3Kg
Single package size :
174*73*207mm
Description
Low Self Discharge 3.2V 271Ah LiFePO4 CATL Car Battery
Product Overview
4Pcs Pack CATL 3.2V 271Ah Car Lithium Ion LiFePO4 Battery
CATL 3.2V 271Ah LiFePO4 Battery with 3500 Cycles Low Self-Discharge and High Energy Density
Technical Specifications
Parameter Value
Normal capacity 271Ah
Normal voltage 3.2V
Standard Charging voltage 3.65V
Internal resistance ≤0.3Ω
Standard charge method 0.5C constant current charge to 3.65V for cell
Standard discharge current 0.5C
Max discharge current (continuous) 1.0C
Weight 5.3kg
Cell dimensions Thickness: 73mm Length: 174mm Height: 207mm
Cycle life 3000 times
Important Notes
  • The battery is CATL 3.2V 271Ah, with QR code, Brand new
  • The busbars size: 90*20*2mm (copper plated with nickel) Screw size: M6
  • We will test all battery Voltage, Internal resistance and capacity before delivery
  • All batteries will be well packed using thicker carton box and foam for safety
CATL Battery Series Comparison
ITEM CATL 60AH CATL 75AH CATL 100AH CATL 240AH CATL 271AH
Nominal capacity 60AH 75AH 100AH 240AH 271AH
Nominal voltage 3.2V 3.2V 3.2V 3.2V 3.2V
Discharge cut-off voltage 2.5V 2.5V 2.8V 2.5V 2.5V
Charge current 12A(0.2CA to 3.65V) 15A(0.2CA to 3.65V) 20A 48A 54.2A
Charge voltage 3.65V 3.65V 3.65V 3.65V 3.65V
Max charge voltage 3.7V 3.7V 3.7V 3.7V 3.7V
Fast charge current 60A 75A 100A 240A 271A
Max continuous charge current 60A 75A 100A 240A 271A
Max continuous discharge current 90A 112.5A 100A 240A 271A
Weight 1.69KG 2.12KG 2.3KG 5.1KG 5.33KG
Size 150.5*174.5*32.5mm 128*174*48mm 168*200*34.5mm 200*174*75mm 200*174*75mm
Internal impedance ≤0.7mΩ ≤0.7mΩ ≤0.7mΩ ≤0.5mΩ ≤0.3mΩ
CATL 3.2V 271Ah LiFePO4 Battery with 3500 Cycles Low Self-Discharge and High Energy Density CATL 3.2V 271Ah LiFePO4 Battery with 3500 Cycles Low Self-Discharge and High Energy Density CATL 3.2V 271Ah LiFePO4 Battery with 3500 Cycles Low Self-Discharge and High Energy Density
Key Features
  • Safest Li-Ion battery, built in PCM/PCB, none fire or explosive
  • Clean and Green energy, no toxic material contained
  • Long life cycle, 80% capacity remain after 500 times deep cycle
  • No memory effect, highly efficient charge anytime, no reduction of capacity
  • Operation temperature: -20~55°C
  • Good performance at high temperature and high temperature resistance
  • Low self-discharge rate: < 3% monthly
Applications
CATL 271AH Batteries can be widely used for ESS, RV, Marine, Yacht, Home solar Energy, UPS, Motor home, Low Speed Electric Vehicles, Rickshaw. Ideal option as SLA Lead acid battery replacement.
CATL 3.2V 271Ah LiFePO4 Battery with 3500 Cycles Low Self-Discharge and High Energy Density CATL 3.2V 271Ah LiFePO4 Battery with 3500 Cycles Low Self-Discharge and High Energy Density
Transportation & Delivery
Shipping to USA: By sea + Express (DDP, Tax free)
ETD: 5-8 days
ETA: 25-35 days after sailing
The tracking will be updated after pick up by local express. Usually it will take around 15-25 days after sailing.
Shipping to EU: By railway + Express (DDP, Tax free). Except Switzerland, Romania
ETD: 5-8 days
ETA: 30-45 working days after shipping
The tracking will be updated after pick up by local express. Usually it will take around 25-40 working days after shipping.
Other: Some remote areas not listed. Please provide shipping address and zip code to us to check.
About Us
Changsha Deligreen Power Co. LTD, founded in 2010, is a "Green Energy Solution Service Provider".

Newest technology, new idea, hard-working and honest people.

Focus on lithium rechargeable battery, BMS, Balancer, charger and relative products.

Main application: electric bicycle, scooter, motorhome, AGV, solar/wind system, Energy storage system, truck and so on.

We promise:
• "real" lithium capacity
• "100%" refund for any quality problem
• "100%" replacement for any shipping damage
• lifetime fast technical support

Customers' satisfaction is our endless pursuing.
Frequently Asked Questions
What is the life expectancy of a Lithium battery?
The typical estimated life of the Lithium Iron Phosphate (LiFePO4) battery is 5-15 years or 2000 to 8000 charge cycles. One charge cycle is a period of use from fully charged, to fully discharged, and fully recharged again.
Where can I get the price?
Please Click Contact Now or Request a Quote. We will offer you the best quote in 24 hours after we get the product specifications such as voltage capacity application etc.
How can you guarantee your quality?
Normally we will send you a sample to confirm everything first. We will make the big order exactly the same as you request. And we offer 1 year warranty for small battery packs, 2-3 years for battery.
What is your term for payment?
We accept T/T, L/C, Paypal, Western Union, Money Gram, Ali Express, Cash, etc.
What kind of certificates do you have?
We can provided CE, ROHS, MSD, SHIPPING CERTIFICATIONS.
