Grade A Lishen 3.2V 272Ah Lifepo4 Lithium Iron Phosphate Battery with 3500 Cycle Life and Low Internal Resistance
Grade A Lishen 3.2V 272Ah Lifepo4 Lithium Iron Phosphate Battery with 3500 Cycle Life and Low Internal Resistance
Specifications
Brand Name :
Lishen
Model Number :
LS-272Ah
Certification :
CE/FCC/ROHS
Place of Origin :
China
MOQ :
4
Price :
negotiable
Payment Terms :
T/T,Western Union,D/P,D/A
Supply Ability :
1000pcs/day
Delivery Time :
10 days
Packaging Details :
carton box
Nominal capacity :
272AH
Nominal voltage :
3.2V
Internal impedence :
≤0.3MΩ
cycle life :
3500 times
MCC :
272A
MCDC :
272A
Net Weight :
5.235±0.1KG
Single package size :
175*73*205mm
Description
Rechargeable 3.2V 272Ah Lifepo4 Lithium Battery
Product Overview

Grade A Brand new Lishen Rechargeable 3.2V 272Ah Lifepo4 Lithium Battery

Technical Specifications
Model Name LISHEN 3.2v 272ah
Rechargeable YES
Max Charge Current 2C for 60S, 1C for continuous
Max Discharge Current 2C for 60S, 1C for continuous
Nominal Capacity 272Ah (true capacity is above 280Ah)
Max Charge Voltage 3.65V
End Voltage (Cut off) 2.5V
Nominal Voltage 3.2V
Cycle Life ≥3500 cycles
Dimension 173.8*71.5*207.45±0.5mm
Net Weight of cell 5.3±0.1kg
Key Features
  • High capacity and stable discharge voltage
  • Longer working time with high performance
  • Light weight with small size
  • Outstanding discharge properties and small internal resistance
  • No memory effect, good discharge ability and high load and resist high temperature
  • Pollution free for environmental protection
  • 100% Authentic original li-ion rechargeable battery
  • Built in anti-explosion protection and circuit protection
Grade A Lishen 3.2V 272Ah Lifepo4 Lithium Iron Phosphate Battery with 3500 Cycle Life and Low Internal Resistance Grade A Lishen 3.2V 272Ah Lifepo4 Lithium Iron Phosphate Battery with 3500 Cycle Life and Low Internal Resistance
Charging Specifications
SOC Temperature Ranges
-20℃~0℃ 0℃~5℃ 5℃~15℃ 15℃~35℃ 35℃~45℃ 45℃~55℃
0%~80% Unable to charge 0.3 I₁ 1 I₁ 1 I₁ 1 I₁ 0.5 I₁
80%~100% Unable to charge 0.2 I₁ 0.8 I₁ 0.8 I₁ 0.6 I₁ 0.3 I₁
Maximum pulse recharging current 50%(30s) Unable to charge 1 I₁ 2 I₁ 2 I₁ 2 I₁ 1 I₁
Discharging Specifications
SOC Temperature Ranges
-25℃~-10℃ -10℃~5℃ 5℃~15℃ 15℃~35℃ 35℃~45℃ 45℃~55℃
20%~100% 1 I₁ 1 I₁ 1 I₁ 1 I₁ 1 I₁ 0.5 I₁
0%~20% 0.5 I₁ 0.8 I₁ 0.8 I₁ 0.8 I₁ 0.8 I₁ 0.3 I₁
Maximum pulse Discharge current 50%(30s) 2 I₁ 2 I₁ 2 I₁ 2 I₁ 2 I₁ 1 I₁
Discharge Capacity by Temperature
Temp -20℃ -10℃ 0℃ 25℃ 60℃
Charging current 1 I₁ 1 I₁ 1 I₁ 1 I₁ 1 I₁
Discharging capacity ≥204Ah ≥217.6Ah ≥244.8Ah ≥272Ah ≥258.4Ah
Storage Performance
Storage condition Charge retention rate Capacity recovery rate
55℃, 100% SOC, 7 days ≥92% ≥95%
25℃, 100% SOC, 28 days ≥92% ≥95%
45℃, 50% SOC, 28 days - ≥90%
Cycle Life
Item Cycle life Condition
Nominal cycle life ≥3000 times 25℃, standard charge and discharge, discharge capacity attenuates to 217.6Ah
Cycle life in high temp ≥2000 times 45℃, standard charge and discharge, discharge capacity attenuates to 217.6Ah
Grade A Lishen 3.2V 272Ah Lifepo4 Lithium Iron Phosphate Battery with 3500 Cycle Life and Low Internal Resistance

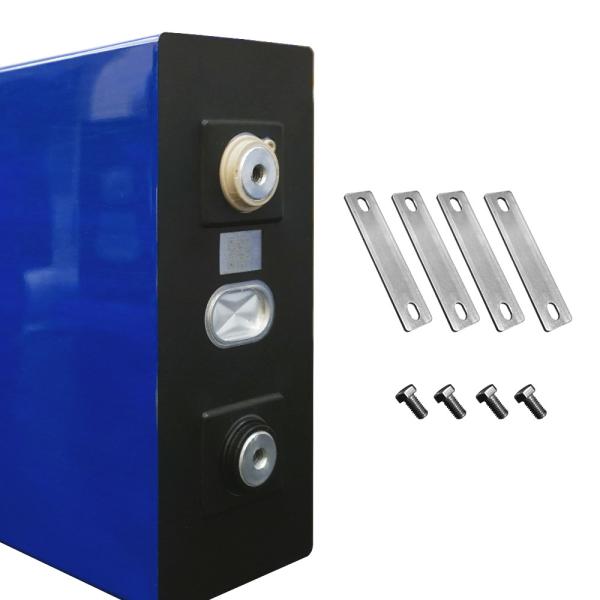

Including busbars, bolts

Grade A Lishen 3.2V 272Ah Lifepo4 Lithium Iron Phosphate Battery with 3500 Cycle Life and Low Internal Resistance
Applications
Grade A Lishen 3.2V 272Ah Lifepo4 Lithium Iron Phosphate Battery with 3500 Cycle Life and Low Internal Resistance Grade A Lishen 3.2V 272Ah Lifepo4 Lithium Iron Phosphate Battery with 3500 Cycle Life and Low Internal Resistance
Transportation & Delivery

Shipment to USA: By sea + Express (DDP, Tax free)
ETD: 5-8 days
ETA: 25-35 days after sailing (This is the delivery time for most orders. Please wait patiently or contact us online)
The tracking will be updated after pick up by local express. Usually it will take around 15-25 days after sailing.

Shipment to EU: By railway + Express (DDP, Tax free). Except Switzerland, Romania
ETD: 5-8 days
ETA: 30-45 working days after shipping (This is the delivery time for most orders. Please wait patiently or contact us online)
The tracking will be updated after pick up by local express. Usually it will take around 25-40 working days after shipping.

Other: Some remote areas not listed. Please provide shipping address and zip code to us to check.

About Us

Changsha Deligreen Power Co. LTD, founded in 2010, is a "Green Energy Solution Service Provider".

Newest technology, new idea, hard-working and honest people.
Focus on lithium rechargeable battery, BMS, Balancer, charger and relative products.
Main application: electric bicycle, scooter, motorhome, AGV, solar/wind system, Energy storage system, truck and so on.

We promise:

  • "real" lithium capacity
  • "100%" refund for any quality problem
  • "100%" replacement for any shipping damage
  • lifetime fast technical support

Customers' satisfaction is our endless pursuing.

Frequently Asked Questions
What is the life expectancy of a Lithium battery?
The typical estimated life of the Lithium Iron Phosphate (LiFePO4) battery is 5-15 years or 2000 to 8000 charge cycles. One charge cycle is a period of use from fully charged, to fully discharged, and fully recharged again.
Where can I get the price?
Please Click Contact Now or Request a Quote. We will offer you the best quote in 24 hours after we get the product specifications such as voltage capacity application etc.
How can you guarantee your quality?
Normally we will send you a sample to confirm everything first. We will make the big order exactly the same as you request. And we offer 1 year warranty for small battery packs, 2-3 years for battery.
What is your term for payment?
We accept T/T, L/C, Paypal, Western Union, Money Gram, Ali Express, Cash, etc.
What kind of certificates do you have?
We can provided CE, ROHS, MSD, SHIPPING CERTIFICATIONS.
