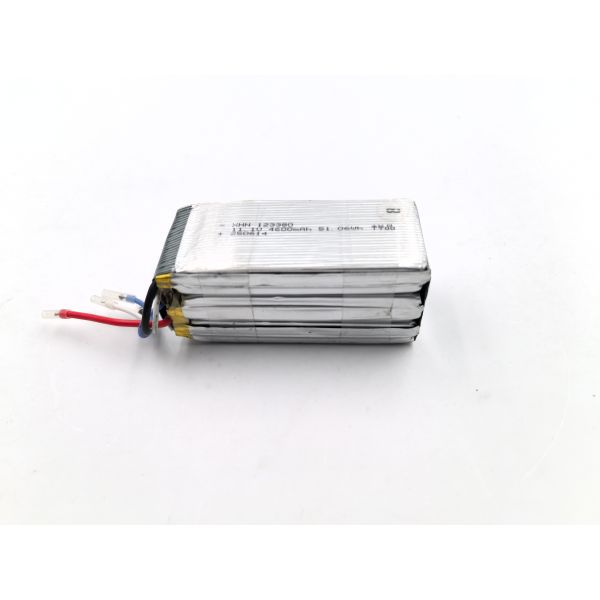

3S 11.1V 4600mAh LiPo Battery (123380) - Slim Profile 12x3.3x8cm for Narrow Mounting, 51Wh Long Range FPV Drone & Wing UAV Battery, XT60

Features

• Unique Slim Profile: The distinctive 120x33x80mm (12x3.3x8cm) form factor is engineered for installation in narrow compartments where standard brick-style batteries cannot fit, offering unparalleled mounting flexibility.
• High Capacity in Compact Size: Delivers substantial 4600mAh capacity and 51Wh energy in a streamlined package, balancing extended runtime with space-saving design.
• Airline Travel Compliant: At 51.06Wh, this battery is well under the common 100Wh limit for carry-on luggage on most airlines (always verify specific carrier policies).
• Robust Power Delivery: 30C continuous discharge rate provides ample current for demanding applications, ensuring stable performance for motors and electronics.
• Versatile Application Design: The elongated shape is ideal for custom integration into drones, vehicles, and equipment with long, thin battery bays.

Specifications

Applications

• Custom & DIY FPV Drones: Specifically designed for frames with long, narrow battery decks or top-mounted battery straps. Ideal for many 5"-7" long-range or freestyle quadcopter builds.
• Wing-Type Drones & Fixed-Wing UAVs: Fits perfectly into the slender fuselage compartments of flying wing platforms and RC airplanes.
• Ground Robotics & Vehicles: Suitable for slim chassis in tracked robots, certain RC cars, or custom rover projects.
• Handheld Gimbal & Stabilizers: Can power larger camera gimbals requiring a compact, high-capacity 3S power source.
• Portable Equipment & Prototypes: Useful for any device requiring a high-energy, slim-profile 11.1V battery pack.

Warnings & Precautions

Charging

• Charger: Use ONLY a smart LiPo balance charger. Set to: Chemistry: LiPo, Cells: 3S (11.1V).
• Charge Rate: Do not exceed 1C (4.6A) for standard charging. 2C (9.2A) is maximum if supported.
• Supervision: NEVER CHARGE UNATTENDED. Charge inside a LiPo safety bag or fireproof container placed on a non-flammable surface.
• Balance Charge: ALWAYS connect the main XT60 plug AND the 3S JST-XH balance plug to the charger.
• Inspection: Before charging, inspect for damage (swelling, puncture, leaks). STOP and do not use if any damage is found.

Discharging

• Voltage Limits: DO NOT discharge below 9.0V (3.0V per cell). DO NOT charge above 12.6V (4.2V per cell).
• Temperature: Operate between -10°C and 60°C. Ideal range is 20°C-45°C. Allow to cool to ambient temperature before charging.
• Physical Care: Protect from impacts, puncture, and crushing. Do not modify the pack or its wiring.
• Short Circuit Prevention: Always use insulating caps on the XT60 connector when not in use. Avoid contact between terminals with metal objects.
• Environment: Keep away from water, moisture, and direct heat sources.

Storage

• Storage Voltage: For storage >1 week, set to Storage Mode (3.80V-3.85V per cell / 11.4V-11.55V total) using your charger.
• Storage Location: Store in a cool, dry place (10°C-25°C ideal) inside a fireproof LiPo bag.
• Transport: Protect terminals from shorting. As a <100Wh battery, it is generally approved for carry-on air travel in limited quantities (check airline rules).
