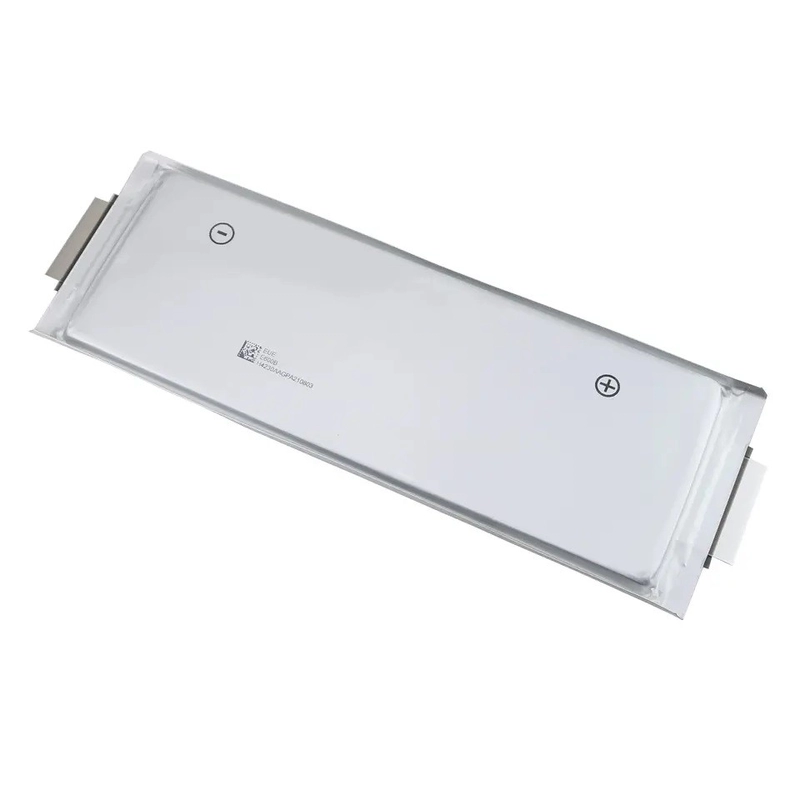

3.7V 60Ah Lithium Pouch Battery Rechargeable NMC Pouch Cell
3.7V 60Ah Lithium Pouch Battery Rechargeable NMC Pouch Cell
3.7V 60Ah Lithium Pouch Battery Rechargeable NMC Pouch Cell
3.7V 60Ah Lithium Pouch Battery Rechargeable NMC Pouch Cell
Specifications
Model Number :
SK60
Certification :
CB, CE, KC, ROHS,UN38.3
Place of Origin :
Made in Korea
MOQ :
1000PCS
Payment Terms :
L/C,T/T,Western Union
Delivery Time :
35 working days
Packaging Details :
Industrial Pakcage
Name :
Lithium Battery Pouch Cell
Material :
Pounch Lithium Battery
Voltage :
3.7V
Ah :
60Ah
SIZE :
14.5*100*300(309)mm
Weight :
≤850g
Storage Teerature :
-20~ 45℃
Cycle life :
Over 2000 times
Warranty :
1 Year
Description

3.7V 60Ah Lithium Pouch Battery Rechargeable NMC Pouch Cell

Features

1. High Energy Density: NMC chemistry offers a high energy density, providing substantial capacity (60Ah) in a relatively compact and lightweight pouch format (850g).

2. High Discharge Capability: Capable of supporting high continuous (up to 3C/180A) and peak pulse (6C/360A for 10s) discharge currents, suitable for power-intensive applications.

3. Long Cycle Life: Designed for a long service life, typically supporting over 2000 charge-discharge cycles while maintaining 80% of initial capacity.

4. Pouch Cell Advantages: Compared to metallic casing cells, pouch cells offer: Safer Failure Mode, Lighter Weight, Flexible Form Factor.

5. Wide Operating Temperature Range: Can operate effectively across a broad temperature range, particularly useful for applications in varying environments.

6.Low Self-Discharge: Retains charge for extended periods when not in use.

Specification

Normal Capacity 60Ah@0.5C 2(30A)
Normal Voltage 3.7V
Cell Weight ≤850g
Cell Dimension Thickness :14mm Width :100 mm Length :300 mm
Charging Cut-off Voltage 4.20 ±0.05 V
Discharging Cut-off Voltage

2.75±0.05V (>0°C);

2.50±0.05V ( -20°C~0°C)
Standard Charging Current 0.5C 2(30A)
Standard Discharging Current 0.5C 2(30A)
Max. Continuous Charging Current 1.0C 2A (60A)
Max. Continuous Discharging Current 3.0C 2 A (180A)
Max. Plus Discharging Current 6C2 A (360A)/10s
Transport Voltage 3.70±0.05V
Storage Teerature -20~ 45℃
Cycle life Over 2000 times

3.7V 60Ah Lithium Pouch Battery Rechargeable NMC Pouch Cell

application

  • Light Electric Vehicles (LEVs): Electric scooters, electric bikes, electric motorcycles, and golf carts.
  • Uninterruptible Power Supplies (UPS): Backup power for critical systems.
  • Solar Energy Storage Systems: Storing solar energy for residential or portable use.
  • Power Tools: High-demand cordless tools requiring high current output.
  • Electric Power Systems: Various applications in power grids and distribution.
  • Portable Power Stations: DIY or commercial portable energy storage solutions.
  • Marine and RV Applications: Powering systems on boats and recreational vehicles.

Warnings & Precautions

Charging
  • Use a Compatible Charger: Always use a charger specifically designed for NMC/Li-ion chemistry and configured for this battery's voltage (4.2V) and current limits.
  • Charge Within Specifications: Do not charge above the maximum voltage of 4.2V or exceed the maximum continuous charge current specified by the manufacturer.
  • Temperature Monitoring: Charge only within the specified temperature range (0°C to 55°C). Never charge a battery that is below freezing or feels hot to the touch.
Discharging
  • Avoid Over-Discharge: Stop using the battery before reaching the cut-off voltage (2.75V at >0°C; 2.50V at -20°C to 0°C).
  • Respect Current Limits: Do not exceed the maximum continuous discharge current (3C/180A) for prolonged periods, as this can cause excessive heat generation and potential damage.
  • Temperature Management: Avoid discharging outside the recommended temperature range (-20°C to 55°C).

Storage
  • Partial Charge Storage: For long-term storage (longer than one month), store the battery at a 30%-50% State of Charge (SOC).
  • Cool and Dry Environment: Store in a cool, dry place away from direct sunlight, moisture, and heat sources. Ideal storage temperature is between -20°C to 25°C.
