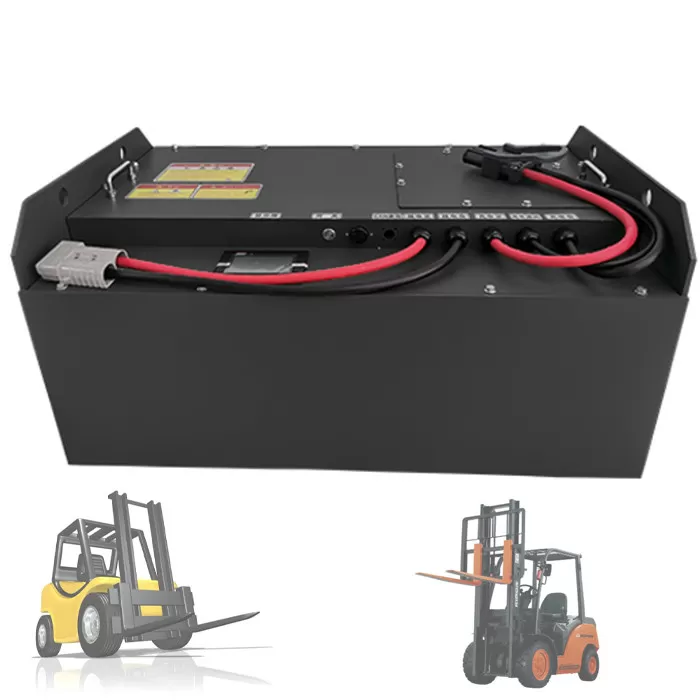

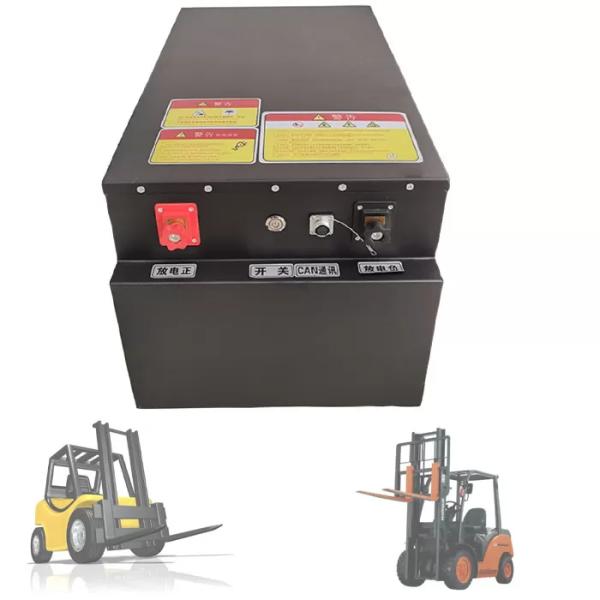

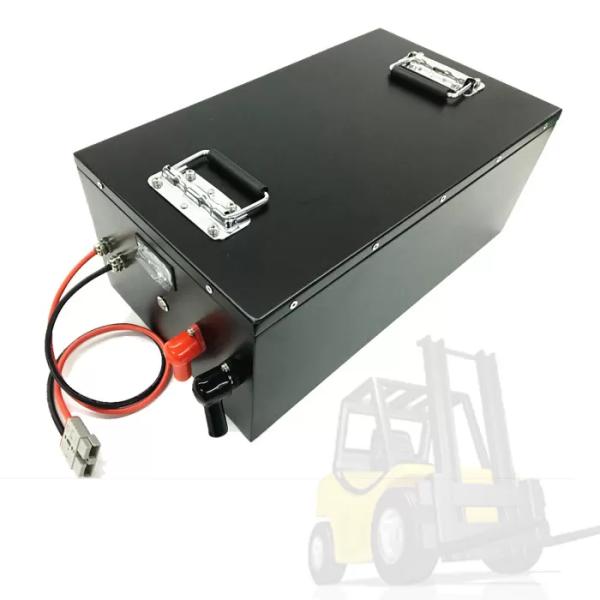

7168Wh 24V 280Ah Forklift Lithium Battery , AGV Lifepo4 Battery Pack
7168Wh 24V 280Ah Forklift Lithium Battery , AGV Lifepo4 Battery Pack
7168Wh 24V 280Ah Forklift Lithium Battery , AGV Lifepo4 Battery Pack
7168Wh 24V 280Ah Forklift Lithium Battery , AGV Lifepo4 Battery Pack
7168Wh 24V 280Ah Forklift Lithium Battery , AGV Lifepo4 Battery Pack
7168Wh 24V 280Ah Forklift Lithium Battery , AGV Lifepo4 Battery Pack
7168Wh 24V 280Ah Forklift Lithium Battery , AGV Lifepo4 Battery Pack
7168Wh 24V 280Ah Forklift Lithium Battery , AGV Lifepo4 Battery Pack
Specifications
Model Number :
24V 280Ah lifepo4 Battery
Certification :
CE MSDS UN38.3
Place of Origin :
China
MOQ :
1000PCS
Payment Terms :
L/C,T/T,Western Union
Delivery Time :
35 working days
Packaging Details :
Industrial Pakcage
Name :
Lithium LiFePO4 Battery
Battery Type :
AGV Lifepo4 Battery
Voltage :
25.6V
Capacity :
280Ah
Size :
633*183*226mm
Weight :
49kg
Operation Teerature :
-20-60 degree
cycle life :
more than 3500 cycles
Guarantee :
one Years
Description

AGV forklift Lithium LiFePo4 Battery 24V 280Ah forklift battery pack

Features:

  1. Remote teerature Monitor
  2. Cycle life monitor GPS location tracking
  3. Usage state management
  4. charge /Discharge data management
  5. Long cycle life more than 3500 cycles

Specification :

AGV forklift

battery Specification

 24V 280Ah LiFePo4 battery Pack
Normal Capacity 280Ah
Normal Voltage 25.6V
Energy 7168Wh
Dimension 633mm *183mm *226mm
Max. charge voltage 29.2V
Min. discharging Voltage (v) 20V
Charging Method

CC-CV(Constant voltage with limited current )
Weight 49kg

Allowed max

Charge current

 280A

Allowed max

discharge Current

 280A
Peak discharge current 500A 60S
shipment power 20%-50%SOC

Battery with smart

BMS function

GPS ,RS485 ,Balance Function,

battery heating function
Operation Teerature -20-60 degree
Quality Guarantee one years
Application

AGV Fork lift ,Low speed Car,Scooter ,

vehicle ,Golf Trolley ,golf car ,

EV ,EBIKE UPS,RV Caer ,marine ,

overland/Van,golf cart ,lighting

7168Wh 24V 280Ah Forklift Lithium Battery , AGV Lifepo4 Battery Pack

Long Lifespan & Durability:

Cycle Life: 3,000+ cycles at 80% depth of discharge (DOD), significantly outperforming lead-acid batteries.

Low Self-Discharge: Loses less than 3% charge per month, ensuring readiness for extended shifts.

Fast Charging & Efficiency:

Charging Current: Supports up to 30A fast charging, achieving full charge in under 2 hours

Opportunity Charging: Enables partial charging during breaks without damaging the battery, maximizing operational uptime.

Advanced Safety & Management:

Battery Management System (BMS): Integrated BMS protects against overcharge, over-discharge,

short circuits, and temperature extremes. It ensures cell balancing and maintains voltage stability within ±0.05V.

Temperature Resilience: Operates reliably in -20°C to 60°C environments, making it suitable

for cold storage and high-heat settings.

IP65 Rating: Dust-tight and water-resistant, ensuring durability in harsh industrial conditions.

Environmental Benefits:

Lead-free, non-toxic, and recyclable, aligning with green initiatives.

Certifications: Complies with UL, CE, UN38.3, and ROHS standards.
