Specifications
Model Number :
14500 3.2V 600mah
Certification :
UN38.3 MSDS CB CE
Place of Origin :
China
MOQ :
1000PCS
Delivery Time :
35 working days
Payment Terms :
,L/C,T/T,Western Union
Packaging Details :
Industrial Pakcage
Name :
Lithium LiFePO4 Battery
Battery Type :
Li Iron Phosphate Battery
Voltage :
3.2V
Capacity :
600mAh
Dimension :
Diamter 14mm Height 50mm
Charging Teerature :
0~45℃
Discharging Teerature :
-20 ~ 60℃
Weight :
22g
Cycle Life :
More Than 2000 Cycles
Description

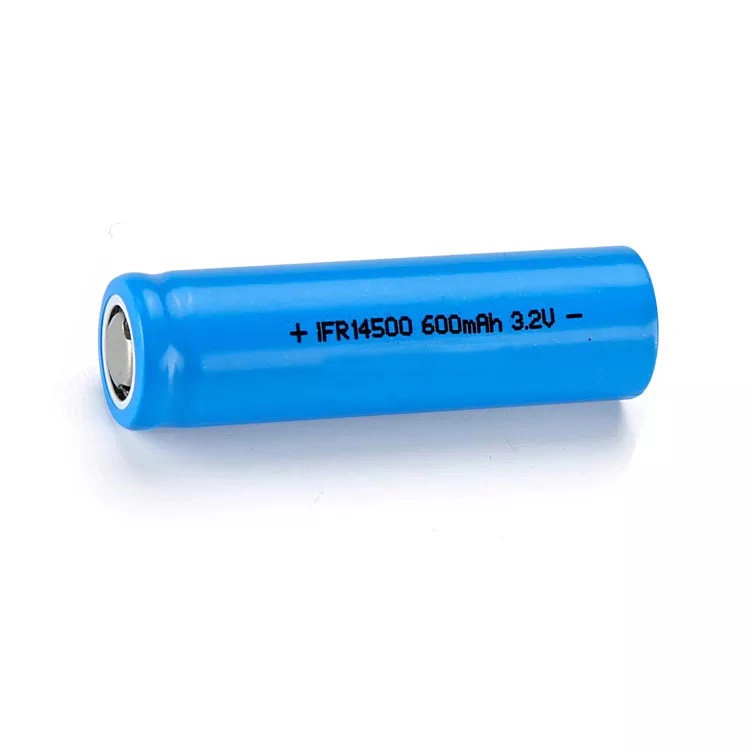

14500 3.2V 600mAh cell Rechargeable Lithium Lifepo4 Battery for High-Powered Flashlights

Features:

1. Light weight, small size and high performance.

2. Stable voltage with higher capacity support fast charge and high rate discharge.

3. Outstanding Discharge properties and Storage Capacity.

4. No memory effect.

5. Small internal resistance.

6. 100% in house quality testing with OQC report.

7. Extra long life design with deep cycle function.

8. MSDS UN38.3 IEC62133 CB support over seas delivery via sea air or door to door courier service.

Specification :

Product features

production by automatic

production line with high

quality materials

Charging Teerature 0~45℃
Nominal capacity 600mAh (0.2C) Discharging Teerature -20 ~ 60℃
Nominal voltage 3.2V Storage teerature ≤12 months: -20~25℃
≤60%RH
Recharge every 6 months
Max charge voltage 3.65V Humidity Range 0~60% (non-condensing)
Discharge cut off voltage 2.0V Dimension 14.5*50.5 (mm)Max
Standard charge current 0.2C Weight about 22g
Max charge current 600mAh Warranty 12 Months
Standard dischrge current 0.2C Internal resistance ≤60
Max dischrge current 3C Cycle life 2000 cycles

14500 3.2V 600mAh Cell Rechargeable Lithium Lifepo4 Battery For High Powered Flashlights

Applications:

  • High-Powered Flashlights and Tactical Lights: Excellent performance and safety under high-drain conditions.

  • Solar Garden Lights and Outdoor Lighting: Long cycle life is ideal for daily charge/discharge cycles.

  • Portable Electronic Devices: Such as digital cameras, toys, GPS devices, and audio equipment designed for similar voltage.

  • Emergency Backup Power: For small devices like sensors or emergency radios.

Safety precaution and prohibitions:

Charging

  • The recommended charging method is Constant Current (CC) / Constant Voltage (CV).

  • Do not charge the battery above the maximum charging voltage of 3.65V.

  • Never charge a battery that is physically damaged, swollen, or leaking.

Discharging

  • Do not over-discharge. Never discharge the battery below the cut-off voltage of 2.5V. Over-discharging can cause irreversible internal damage.

  • Avoid short-circuiting the battery. A short circuit can cause extremely high currents, leading to overheating, leakage, or explosion.

Handling & Storage

  • Do not disassemble, crush, puncture, or incinerate the battery.

  • Avoid exposing the battery to extreme heat or fire.

  • Keep the battery away from water and moisture.

  • Store the battery in a cool, dry place. For long-term storage (longer than one month), it is ideal to store it with a 40-60% charge level.
