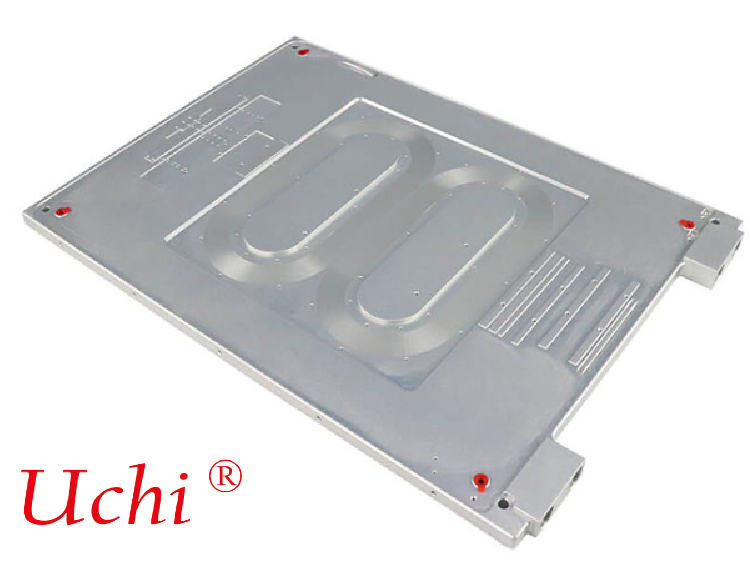

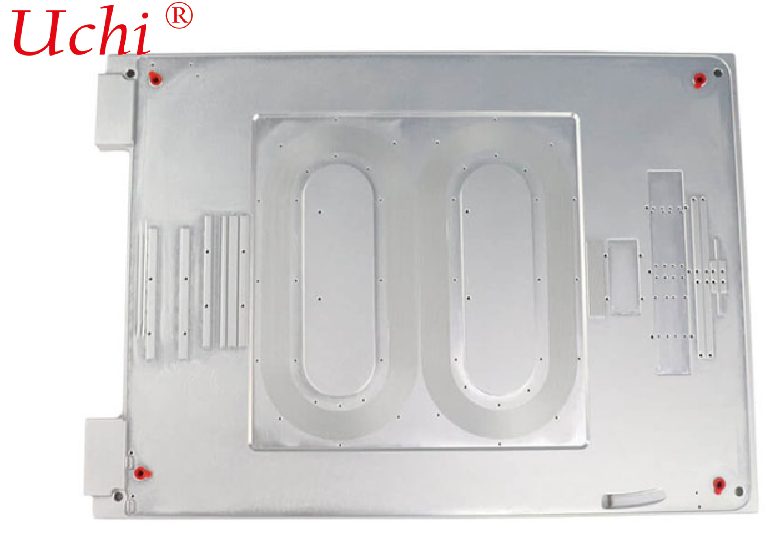

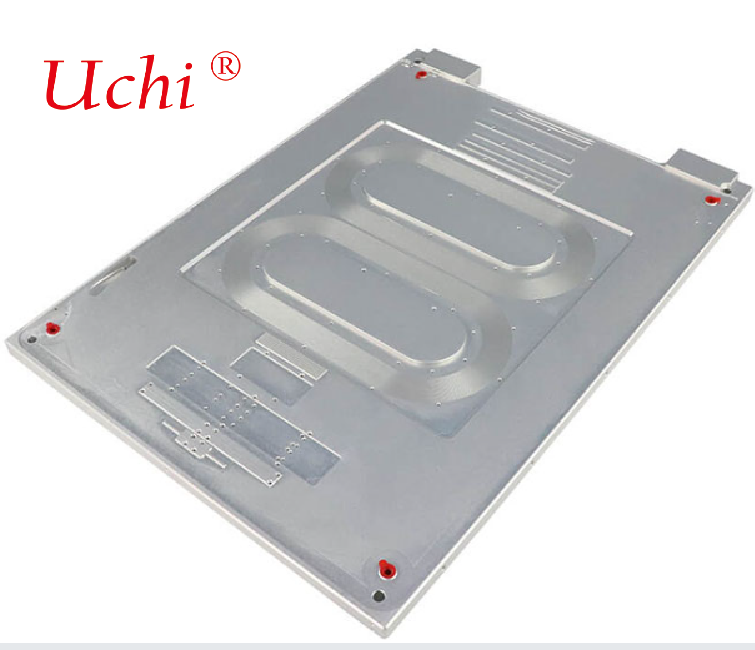

Deep Buried Copper Pipe Double Loop Fiber Laser Water Cooling Plate for Cold Plate
Deep Buried Copper Pipe Double Loop Fiber Laser Water Cooling Plate for Cold Plate
Specifications
Delivery Time :
not limited
Product dimension :
Can be customized
Power Interface :
3Pin
Body Material :
Aluminum
Model Number :
Heat Sink
Corrosionresistance :
Yes, with proper coating
Treatment :
passivationHeat conducting
Payment Terms :
T/T，paypal， Western Union,MoneyGram
Thermal Conductivity :
≥ 180 W/m·K
Mountingoptions :
Screw holes or adhesive pads
Humidity :
5%～90%
Certification :
SMC
Heat conducting power :
450 W
Product weight :
3.4kg
Feature :
New technology and high power cooling
Texture Of Material :
6061
Supply Ability :
50000000pcs per Month
Place of Origin :
Dongguan，Guangdong,China
MOQ :
100pcs
Surface treatment :
Oil cleaning and anti-oxidation
Product Technology :
Welding and pipes bending
Tube Dimensions :
K-1/4”, K-3/8”, K-1/2”
Application :
RGB laser light source
Brand Name :
Uchi
Price :
1300-1500 dollars
Material :
Copper and aluminum
Thickness :
0.30mm--Customized
Weight :
Varies depending on size and material
Type :
Aluminum profile
Product Weight :
1.198kg
Description
Deep Buried Copper Pipe Double Loop Fiber Laser Water Cooling Plate for Cold Plate
Deep Buried Copper Pipe Double Loop Fiber Laser Water Cooling Plate for Cold Plate Deep Buried Copper Pipe Double Loop Fiber Laser Water Cooling Plate for Cold Plate Deep Buried Copper Pipe Double Loop Fiber Laser Water Cooling Plate for Cold Plate
Aluminum Skiving Heatsink (with fins)

A high-performance air cooling heatsink manufactured by cutting thin fins directly from a single aluminum block.

Product Overview
  • Manufactured from one solid aluminum block (typically AL1060, AL6063)
  • Fins are precision-cut and bent upward using specialized skiving machinery
  • Base and fins are integral components - no welding, soldering, or adhesive bonding required
Key Advantages
  • Exceptionally low thermal resistance with no contact resistance between base and fins
  • Capable of thin, dense fin configurations (0.2-1.0 mm thickness) with higher density than extrusion heatsinks
  • Ideal for high-power cooling applications including high-power LEDs, inverters, power supplies, EV components, and server systems
  • Fully customizable shapes and sizes without expensive extrusion molds
Cooling Mechanism
  1. Heat transfers from device to heatsink base
  2. Heat spreads uniformly through aluminum material
  3. Heat transfers to multiple thin fins
  4. Fins dissipate heat to air through convection (natural or fan-assisted cooling)
Typical Structure
  • Base: Flat surface optimized for mounting to heat source
  • Fins: Vertical orientation, thin profile, high density, straight configuration
  • Surface Treatment: Black anodized finish for enhanced cooling performance and corrosion resistance
Common Applications
  • High-power LED lighting systems
  • Server, CPU, and GPU cooling solutions
  • Electric vehicle power modules and inverters
  • Industrial power supply units
  • 5G communication equipment
