IGBT Module Custom Liquid Cold Plate Aluminum Water Cooling Thermal Solution
IGBT Module Custom Liquid Cold Plate Aluminum Water Cooling Thermal Solution
IGBT Module Custom Liquid Cold Plate Aluminum Water Cooling Thermal Solution
IGBT Module Custom Liquid Cold Plate Aluminum Water Cooling Thermal Solution
IGBT Module Custom Liquid Cold Plate Aluminum Water Cooling Thermal Solution
IGBT Module Custom Liquid Cold Plate Aluminum Water Cooling Thermal Solution
IGBT Module Custom Liquid Cold Plate Aluminum Water Cooling Thermal Solution
IGBT Module Custom Liquid Cold Plate Aluminum Water Cooling Thermal Solution
Specifications
Place of Origin :
Dongguan，Guangdong,China
Material :
Aluminum alloy
Working pressure :
1.2 to 5 bars
Surface flatness :
Below 0.005 cm/cm
MOQ :
100pcs
Supply Ability :
50000000pcs per Month
Single package size :
23X15X4 cm
warranty :
1 Year
Model Number :
Liquid cooling plate 12
Price :
Negotiable
Single gross weight :
2.400 kg
Size :

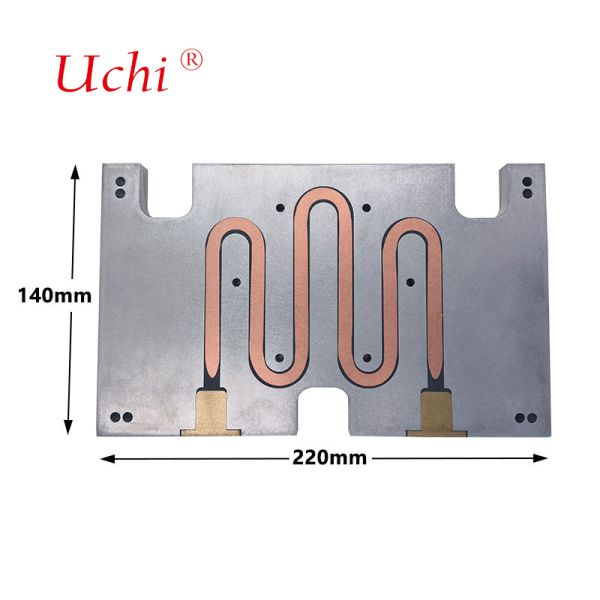

220*140*35mm or Customized Size
Brand Name :
Uchi
Payment Terms :
T/T，paypal， Western Union,MoneyGram
Surface finish :
Mill finish or anodization
Surface roughness :
1.2 um
Certification :
SMC
Description
IGBT Module Custom Liquid Cold Plate Aluminum Water Cooling Thermal Solution
Custom IGBT Liquid Cooling Plate Aluminum Cooling Plate. Our aluminum cold plate is processed from high-quality aluminum alloy, offering optimal heat dissipation for IGBT modules. With a thermal conductivity of approximately 202W/(m*K), these plates provide excellent performance while reducing system weight and cost compared to copper alternatives.
Material Advantages
Aluminum alloy offers significant advantages for liquid cooling applications:
  • Cost-effective at 1/3 to 1/4 the price of copper
  • Lightweight with density of 2.7g/cm³ (vs. 8.9g/cm³ for copper)
  • Can be fabricated into complex flow channel structures
  • Resists coolant corrosion while maintaining stable thermal conductivity
Product Specifications
Materials Copper (1020/1100), Aluminum (1060/1070/6063/6061)
Surface Treatment Plating, Coating, Painting, Anodizing, Sandblasting, Tapping, Deburring, Chromating, Laser Marking, Degreasing, Passivation, Clearing
Processing CNC Machining, Extrusion, Cutting, Cold forging, Die casting, Stamping, Skiving, Folding, Inserting, FSW (Friction Stir Welding), Welding, Epoxy, Nickel Plating, Bending, Soldering, Cross Cutting, Milling, Drilling
Dimension Customized size or Customer's Drawing Required
Application LED Lighting, Solar Inverter, Power Supply Equipment, Medical Ventilator, IGBT, Electric Automotive, Desktop Liquid Cooling, Communication Device, CPU Cooler, Industrial Equipment
Drawing Accepted AutoCAD (dxf,dwg), PDF, 3D (STEP/IGS)
Advanced Brazing Technology
Our vacuum brazing process joins aluminum plates using a filler metal with a lower melting point than the base material, creating extremely strong joints without residual corrosive flux. This high-end technology offers uniform heating, precise temperature control, and eliminates post-cleaning requirements while minimizing part distortion.
IGBT Module Custom Liquid Cold Plate Aluminum Water Cooling Thermal Solution IGBT Module Custom Liquid Cold Plate Aluminum Water Cooling Thermal Solution IGBT Module Custom Liquid Cold Plate Aluminum Water Cooling Thermal Solution IGBT Module Custom Liquid Cold Plate Aluminum Water Cooling Thermal Solution IGBT Module Custom Liquid Cold Plate Aluminum Water Cooling Thermal Solution IGBT Module Custom Liquid Cold Plate Aluminum Water Cooling Thermal Solution
Key Applications
  • Lasers and medical equipment
  • EV power battery pack cooling
  • Power electronics and motor drive devices
  • Microwave 5G transmission systems
  • Renewable energy systems
  • IGBT and Power Semi-Conductor Systems
  • Data centers and industrial power applications
  • Defense systems and avionics
  • Fuel cells and traction systems
IGBT Module Custom Liquid Cold Plate Aluminum Water Cooling Thermal Solution
Production Capabilities
Our manufacturing facility includes 25 CNC machines, 10 stamping machines, 2 friction welding machines, 2 large thermal blowers, 4 wire cutting machines, 2 spark machines, 4 milling machines and 3 grinding machines.
IGBT Module Custom Liquid Cold Plate Aluminum Water Cooling Thermal Solution
Quality Assurance
We maintain rigorous quality standards with 1 Coordinate Measuring Machine, 1 projector instrument, 2 water high pressure testing machines, 4 thermal resistance testing machines, and 2 liquid leakage testing machines.
IGBT Module Custom Liquid Cold Plate Aluminum Water Cooling Thermal Solution
Customer Service
  • Prompt response to all inquiries
  • Competitive pricing with guaranteed quality
  • Efficient production scheduling
  • Optimal transportation solutions
  • Comprehensive technical support
Frequently Asked Questions
Are you a trading company or manufacturer?
We are a professional manufacturer of heat sinks and water cooling plates with extensive experience and a strong technical team, featuring automated and mechanized production.
Have you exported goods before and to which regions?
60% of our total production is exported to Japan, India, UK, Canada, USA, and Brazil.
How many employees do you have?
Approximately 100 employees across sales, purchasing, engineering, QA, warehouse, and production departments.
Can you provide samples if we agree with the design?
Yes, we provide samples for confirmation before mass production, along with technical drawings if required.
What packing methods do you use?
Customized packing with normal cartons and tight-proof fabric or wooden cartons for optimal protection during transportation.
Do you provide technical support for product issues?
All products are fully inspected before shipping. For any issues, we provide immediate technical solutions.
