PC CPU Copper Liquid Cooling Plate Water Cooler Radiator Thermal Solution
PC CPU Copper Liquid Cooling Plate Water Cooler Radiator Thermal Solution
Specifications
MOQ :
1000PCS
Finish :
Clean + Anodized
Ip Rating :
IP65
Surface Finish :
Mill finish or anodization
Diameter :
Φ 6mm
Dimensions :
Customizable (e.g., 100mm x 100mm x 10mm)
Certification :
UL.VDE,SGS,REACH,CQC,CSA.ISO.ROHS,CUL
Delivery Time :
5-7 days
Weight :
Varies by size, typically 200-500 grams
Price :
Negotiable
Shape :
Square
Technology :
Skiving + passivation
Place of Origin :
Dongguan，Guangdong,China
Materials :
copper + aluminum alloy
Brand Name :
UCHI
Payment Terms :
T/T,Paypal,Western Union,Money gram
Tolerance :
0.05 mm
Supply Ability :
5000,000,000PCS Per Month
Packaging Details :
Bulk
Feature :
High efficiency and energy-saving
Corrosionresistance :
High, with anti-corrosion coating
Description

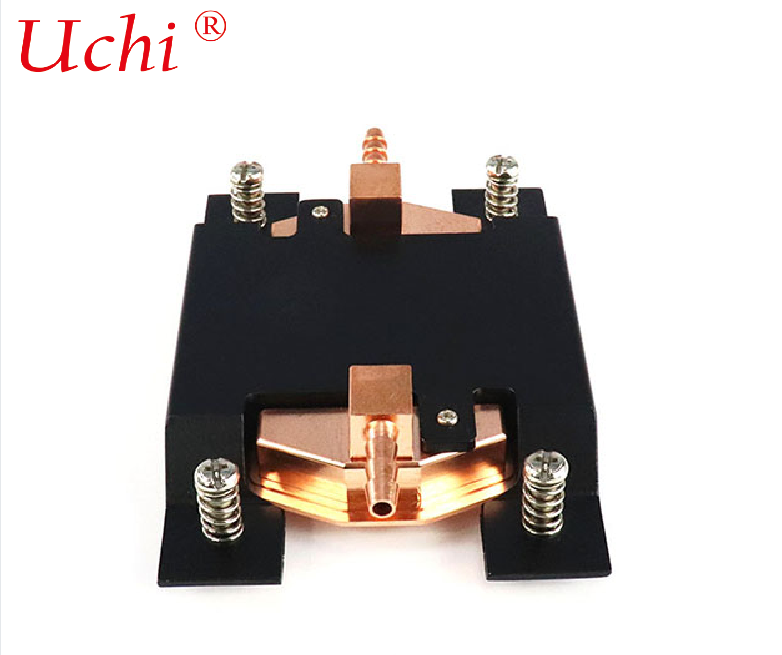

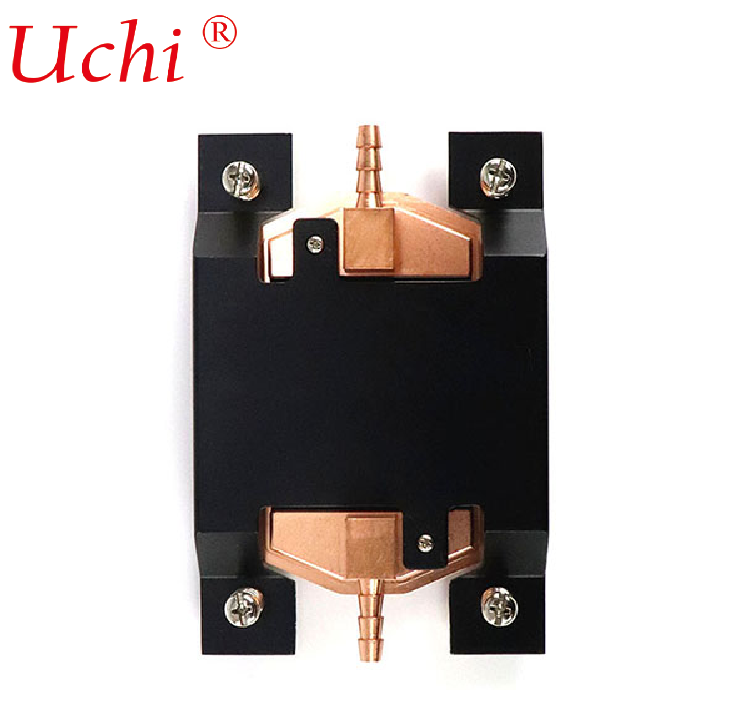

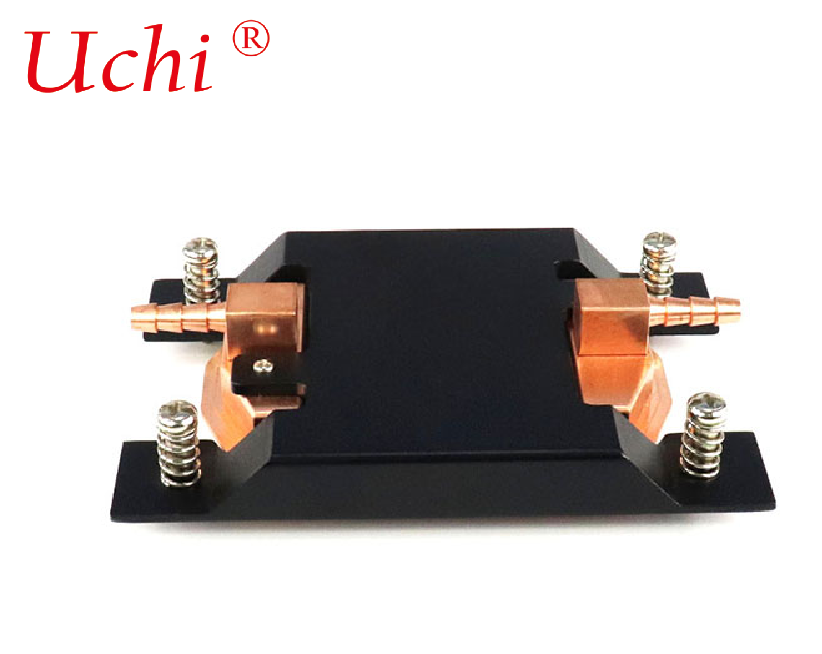

PC CPU Copper Liquid Cooling Plate Water Cooler Radiator Thermal Solution
Copper Liquid Cooling Radiator for PC CPU Water Cooler
As a professional manufacturer, we provide high-quality Copper Liquid Cooling Radiators for PC CPU Water Coolers, offering excellent after-sale service and timely delivery.
Material AL 1100
Size 9.06 × 5.35 × 1.25 cm
Weight 1.35 KG
Technology Zipper fin
Features High cooling capability and good conductivity
Surface Treatment Oil cleared, cleaned and passivation
Heat Conducting Power 238W
Product Advantages
  • Friction Stir Welded Liquid Cold Plates
Core Structure (All-in-One CPU Liquid Cooler)
  • Cold Plate (Water Block): Micro-channel copper base, closely attached to the CPU for fast heat conduction
  • Radiator (Heat Exchanger): Copper-made with pure copper/brass construction, far superior to aluminum in thermal conductivity, corrosion-resistant and limescale-resistant
  • Structure: Flat tubes + dense copper fins. Water flows through copper tubes; fins and fans provide forced air cooling
  • Water Tubes: EPDM rubber tubes, high & low temperature resistant and leak-proof
  • Fans: PWM speed-adjustable fans, available with black anodized aluminum frames; silent or high-air-volume options
  • Water Pump: Built-in circulating pump to drive coolant circulation
Key Advantages of Copper Radiator vs Aluminum Radiator
  • Higher thermal conductivity: Copper thermal conductivity ≈401 W/(m*K), aluminum ≈237 W/(m*K); 20%-35% higher heat dissipation capacity with the same size
  • Long service life with corrosion resistance: Copper resists oxidation and limescale, avoiding perforation and liquid leakage after long-term use; aluminum radiators are prone to oxidation and leakage
  • High temperature resistance for high power consumption: Suitable for i9, Ryzen 9, overclocked CPUs and industrial IPC CPUs
  • Blackened/anodizable: Copper radiator fins can be treated with black electrophoretic coating or blackening, matching the appearance of black anodized aluminum heat sinks
  • Drawbacks: Heavier weight and higher cost
Common Radiator Sizes
  • 120 mm: Entry-level, for low-power CPUs
  • 240 mm: Mainstream, for gaming CPUs
  • 360 mm: High-end for overclocking, multi-core and industrial control hosts
  • 480 mm: Ultra-high power consumption, for server / industrial equipment
  • Thickness: 27 mm / 30 mm / 45 mm. Thicker radiators offer better heat dissipation; 45 mm thickness delivers the strongest cooling performance
Application Scenarios
  • Desktop gaming PCs and overclocked hosts
  • Industrial control computers and edge computing hosts
  • CPU cooling for deep learning workstations and small servers
  • Enclosed chassis and non-ventilated environments (liquid cooling outperforms air cooling)
Selection Guidelines
  • Adopt all-copper radiator + copper water block to prevent galvanic corrosion caused by aluminum-copper mixing
  • Apply blackening / anodizing treatment to fins to enhance radiative heat dissipation and appearance
  • Match with high-static-pressure fans to form composite cooling of active liquid cooling + air cooling
  • Industrial-grade radiators with vacuum brazing process are optional for pressure resistance, vibration resistance and leak prevention
PC CPU Copper Liquid Cooling Plate Water Cooler Radiator Thermal Solution PC CPU Copper Liquid Cooling Plate Water Cooler Radiator Thermal Solution PC CPU Copper Liquid Cooling Plate Water Cooler Radiator Thermal Solution
