Compact Optical Module Cold Plates For Electronics Air Cooled Heat Sink Solution
Compact Optical Module Cold Plates For Electronics Air Cooled Heat Sink Solution
Specifications
Mounting method :
Snap-fit / screw fixation, closely attached to the optical module housing
Price :
Negotiable
Certification :
SMC
Supply Ability :
50000000pcs per Month
Place of Origin :
Dongguan，Guangdong,China
Payment Terms :
T/T，paypal， Western Union,MoneyGram
Thermal conductivity :
≥ 180 W/m·K
Model Number :
Air-cooled radiator 1
MOQ :
100pcs
Brand Name :
Uchi
Heat dissipation power :
Supports single-module heat dissipation power ≤ 15W
Material :
Aluminum alloy / Copper alloy
warranty :
1 Year
Description
Compact Optical Module Cold Plates For Electronics Air Cooled Heat Sink Solution
Product Overview

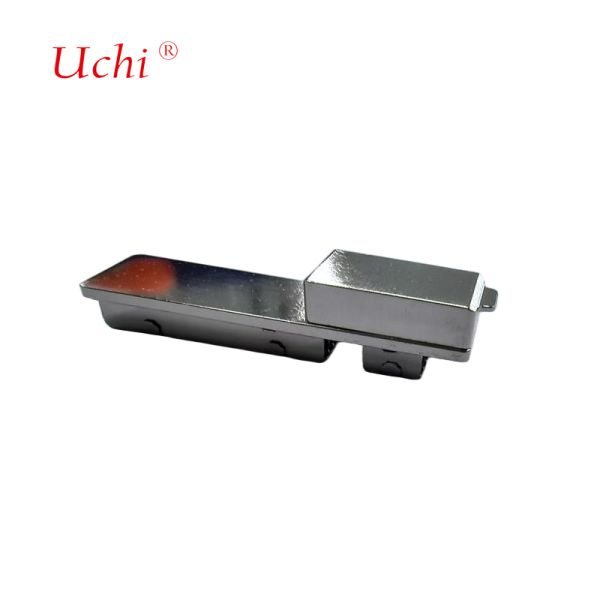

Compact Optical Module Air-cooled Heat Sink designed for Small Form-factor Pluggable (SFP) optical modules. This compact air-cooled heat sink provides efficient thermal management for high-performance optical communication systems.

Technical Specifications
Material Aluminum alloy / Copper alloy (thermal conductivity ≥ 180W/m·K)
Compatible Optical Module Types QSFP/QSFP28 (for 100G/200G optical modules)
Heat Dissipation Power Supports single-module power consumption ≤ 15W
Dimensions Length approx. 50-60mm, thickness ≤ 8mm (compatible with standard Cage housing)
Mounting Method Snap-fit / screw fixation, closely attached to the optical module housing
Application Fields
  • 100G/200G pluggable optical modules for data center switches
  • Small optical modules for fronthaul/mid-haul equipment of 5G base stations
  • Low-power optical communication components for edge computing nodes
Manufacturing Capabilities
Compact Optical Module Cold Plates For Electronics Air Cooled Heat Sink Solution
Advanced Brazing Technology
Compact Optical Module Cold Plates For Electronics Air Cooled Heat Sink Solution
Brass / Copper CNC
Compact Optical Module Cold Plates For Electronics Air Cooled Heat Sink Solution
Aluminium / Zinc CNC
Compact Optical Module Cold Plates For Electronics Air Cooled Heat Sink Solution
Stainless Steel / Steel CNC
Compact Optical Module Cold Plates For Electronics Air Cooled Heat Sink Solution
Plastic CNC
Key Applications
Compact Optical Module Cold Plates For Electronics Air Cooled Heat Sink Solution
Production Equipment
Our air-cooled equipment includes: 10 units of low-temperature solder reflow ovens, 5 units of baking ovens, 20 units of automatic solder dispensing equipment, 3 units of automatic solder brushing equipment, 50 units of torque-controlled electric screwdrivers, 1 unit of CCD inspection equipment, 2 units of fully automatic optical module testing equipment, 11 units of multi-station thermal performance testing equipment, 4 units of flatness optical testing equipment, and other related equipment.
Compact Optical Module Cold Plates For Electronics Air Cooled Heat Sink Solution
Quality Assurance
We maintain rigorous quality standards with 1 Coordinate Measuring Machine, 1 projector instrument, 2 water high pressure testing machines, 4 thermal resistance testing machines, and 2 liquid leakage testing machines.
Compact Optical Module Cold Plates For Electronics Air Cooled Heat Sink Solution
Customer Service
  • Prompt response to all inquiries
  • Competitive pricing with guaranteed quality
  • Efficient production scheduling
  • Optimal transportation solutions
  • Comprehensive technical support
Frequently Asked Questions
Are you a trading company or manufacturer?
We are a professional manufacturer of heat sinks and water cooling plates with extensive experience and a strong technical team, featuring automated and mechanized production.
Have you exported goods before and to which regions?
60% of our total production is exported to Japan, India, UK, Canada, USA, and Brazil.
How many employees do you have?
Approximately 100 employees across sales, purchasing, engineering, QA, warehouse, and production departments.
Can you provide samples if we agree with the design?
Yes, we provide samples for confirmation before mass production, along with technical drawings if required.
What packing methods do you use?
Customized packing with normal cartons and tight-proof fabric or wooden cartons for optimal protection during transportation.
Do you provide technical support for product issues?
All products are fully inspected before shipping. For any issues, we provide immediate technical solutions.
