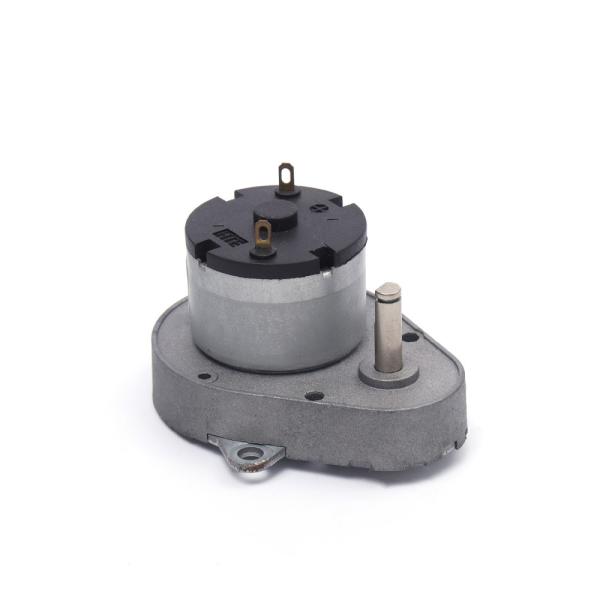

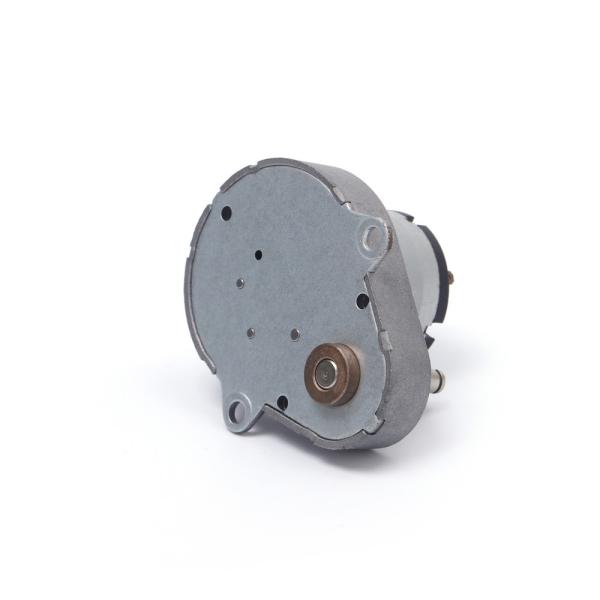

Round Shape Coffee Machine Motor GM48 Lino Motors RF500 RF520
Round Shape Coffee Machine Motor GM48 Lino Motors RF500 RF520
Round Shape Coffee Machine Motor GM48 Lino Motors RF500 RF520
Round Shape Coffee Machine Motor GM48 Lino Motors RF500 RF520
Round Shape Coffee Machine Motor GM48 Lino Motors RF500 RF520
Round Shape Coffee Machine Motor GM48 Lino Motors RF500 RF520
Specifications
Brand Name :
LINO
Model Number :
GM48
Certification :
ROHS
Place of Origin :
ZHEJIANGNINGBO
MOQ :
1K
Price :
The price ranges from 30 to 50 rmb per unit. The specific model requirements vary
Payment Terms :
T/T
Supply Ability :
100,000 units per month
Delivery Time :
30work days
Packaging Details :
Carton with pallet
Voltage range :
6VDC,12VDC,24VDC
Direction of rotation :
CW, CCW
Motor :
RF500,RF520
Shaft :
Customizable
Description

DC GEAR MOTOR GM48

Products' type: DC geared motor

Round Shape Coffee Machine Motor GM48 Lino Motors RF500 RF520
Model: GM48
Sort: Round shape DC geared motor
Typical applications: Coffee machine, communications-equipment, ACU-RITE,induced garbage can, electronic lock, optical equipment, medical instrumentation, office equipment, household appliances,etc…
Weight 160g (approx)

MODEL VOLTAGE AT NO LOAD AT MAXIMUM EFFICIENCY AT STALL
SPEED CURRENT SPEED CURRENT TORQUE TORQUE CURRENT
VDC RPM A RPM A mN.m kg.cm mN.m kg.cm A
GM48453-520 24 11 0.03 8.7 0.12 1264.2 12.900 6232.8 63.600 0.47
Base motor option RF500,RS520,RS528
Gear ratio option 11, 19.5, 47.3, 189,232, 290, 453.6, 529, 567, 661.5, 1221, 1526.5
Note output shaft can be changed as customer's request.
Packing detail Carton, Size: 38X35.5X34CM;100pcs/carton; G.W:18Kg.

Round Shape Coffee Machine Motor GM48 Lino Motors RF500 RF520

Round Shape Coffee Machine Motor GM48 Lino Motors RF500 RF520
