CW CCW Dc Gear Motor GMF4632 Square Shape For Valve Coffee Machine
CW CCW Dc Gear Motor GMF4632 Square Shape For Valve Coffee Machine
CW CCW Dc Gear Motor GMF4632 Square Shape For Valve Coffee Machine
CW CCW Dc Gear Motor GMF4632 Square Shape For Valve Coffee Machine
CW CCW Dc Gear Motor GMF4632 Square Shape For Valve Coffee Machine
CW CCW Dc Gear Motor GMF4632 Square Shape For Valve Coffee Machine
Specifications
Brand Name :
LINO
Model Number :
GMF4632
Certification :
ROHS
Place of Origin :
ZHEJIANGNINGBO
MOQ :
1K
Price :
The price ranges from 20 to 30 RMB per unit. The specific model requirements vary
Payment Terms :
T/T
Supply Ability :
100,000 units per month
Delivery Time :
30work days
Packaging Details :
Carton with pallet
Voltage range :
6VDC,12VDC,24VDC
Direction of rotation :
CW, CCW
Shaft :
Customizable
Description

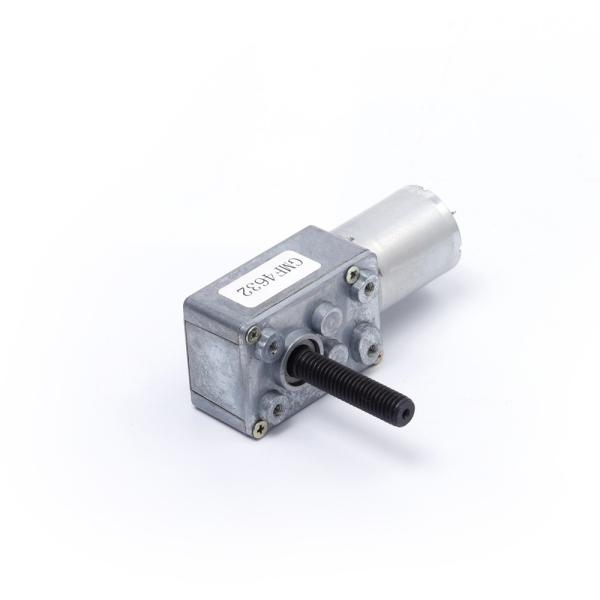

DC GEAR MOTOR GMF4632

Products' type: DC geared motor

CW CCW Dc Gear Motor GMF4632 Square Shape For Valve Coffee Machine
Model: GMF4632
Sort: Square shape DC geared motor
Typical applications: Valve,coffee machine, coin machine,communications-equipment, ACU-RITE,induced garbage can, electronic lock, optical equipment, medical instrumentation, office equipment, household appliances,etc…
Weight 240g (approx)

MODEL VOLTAGE AT NO LOAD AT MAXIMUM EFFICIENCY AT STALL
SPEED CURRENT SPEED CURRENT TORQUE TORQUE CURRENT
VDC RPM A RPM A mN.m kg.cm mN.m kg.cm A
GMF4632-385 24 51 0.065 40.5 0.26 568.4 5.800 2842 29.000 1.06
Base motor option 365,385,395
Gear ratio option 103.5
Note The specifications and output shaft can be changed as customer's request.
Packing detail Carton, Size: 52X36X36CM;100pcs/carton; G.W:26.6Kg.

CW CCW Dc Gear Motor GMF4632 Square Shape For Valve Coffee Machine

CW CCW Dc Gear Motor GMF4632 Square Shape For Valve Coffee Machine
