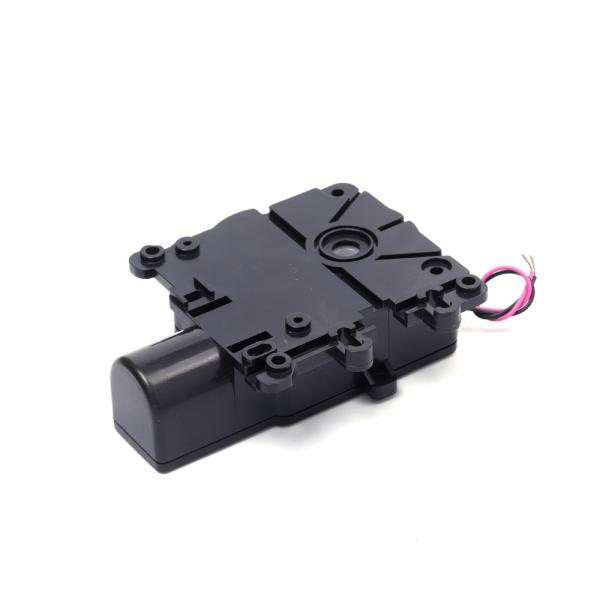

Square Shape Dc Gear Motor / Lino Motor RS365 For Valve GMF9191
Square Shape Dc Gear Motor / Lino Motor RS365 For Valve GMF9191
Square Shape Dc Gear Motor / Lino Motor RS365 For Valve GMF9191
Square Shape Dc Gear Motor / Lino Motor RS365 For Valve GMF9191
Square Shape Dc Gear Motor / Lino Motor RS365 For Valve GMF9191
Square Shape Dc Gear Motor / Lino Motor RS365 For Valve GMF9191
Specifications
Brand Name :
LINO
Model Number :
GMF9191
Certification :
ROHS
Place of Origin :
ZHEJIANGNINGBO
MOQ :
1K
Price :
The price ranges from 20 to 50 rmb per unit. The specific model requirements vary
Payment Terms :
T/T
Supply Ability :
100,000 units per month
Delivery Time :
30work days
Packaging Details :
Carton with pallet
Voltage :
6VDC,12VDC,24VDC
Direction of rotation :
CW, CCW
Motor :
RS365
Typical application :
Valve
Description

DC GEAR MOTOR GMF9191

Products' type: DC geared motor

Square Shape Dc Gear Motor / Lino Motor RS365 For Valve GMF9191
Model: GMF9191
Sort: Square shape DC geared motor
Typical applications: valve,vending machine,coffee machine,communications-equipment, ACU-RITE,induced garbage can, electronic lock, optical equipment, medical instrumentation, office equipment, household appliances,etc…
Weight 202g (approx)

MODEL VOLTAGE AT NO LOAD AT MAXIMUM EFFICIENCY AT STALL
SPEED CURRENT SPEED CURRENT TORQUE TORQUE CURRENT
VDC RPM A RPM A mN.m kg.cm mN.m kg.cm A
GMF9191-360 12 20.5 0.1 15.4 270 392 4.000 1519 15.500 0.81
Base motor option RS360,RS365
Gear ratio option 252
Note output shaft can be changed as customer's request.
Packing detail Carton, Size: 52X36X36CM;50pcs/carton; G.W:12Kg.

Square Shape Dc Gear Motor / Lino Motor RS365 For Valve GMF9191

Square Shape Dc Gear Motor / Lino Motor RS365 For Valve GMF9191
