Medical Biocompatible Flat Ribbon Cable with Shielded Tinned Copper and PVC Jacket for Custom Applications
Medical Biocompatible Flat Ribbon Cable with Shielded Tinned Copper and PVC Jacket for Custom Applications
Medical Biocompatible Flat Ribbon Cable with Shielded Tinned Copper and PVC Jacket for Custom Applications
Medical Biocompatible Flat Ribbon Cable with Shielded Tinned Copper and PVC Jacket for Custom Applications
Medical Biocompatible Flat Ribbon Cable with Shielded Tinned Copper and PVC Jacket for Custom Applications
Medical Biocompatible Flat Ribbon Cable with Shielded Tinned Copper and PVC Jacket for Custom Applications
Medical Biocompatible Flat Ribbon Cable with Shielded Tinned Copper and PVC Jacket for Custom Applications
Medical Biocompatible Flat Ribbon Cable with Shielded Tinned Copper and PVC Jacket for Custom Applications
Medical Biocompatible Flat Ribbon Cable with Shielded Tinned Copper and PVC Jacket for Custom Applications
Medical Biocompatible Flat Ribbon Cable with Shielded Tinned Copper and PVC Jacket for Custom Applications
Medical Biocompatible Flat Ribbon Cable with Shielded Tinned Copper and PVC Jacket for Custom Applications
Medical Biocompatible Flat Ribbon Cable with Shielded Tinned Copper and PVC Jacket for Custom Applications
Specifications
rated voltage :
300-600V
Lead Time :
7-15days
Exterior material :
customize：PVC、PE、LSFOH、silicone rubber
package :
By roll
colour :
customize
rated temperature :
-60± 200℃
Certification :
3C，UL，TPU，UL758，ROHS，REACH，CE，ISO9001-2015，ISO13485，IATF16949
conductor material :
copper/Tinned Copper
Place of Origin :
China
Brand Name :
Linke
MOQ :
1000m
Price :
Negotiable
Packaging Details :
According to requirement
Delivery Time :
7-15day
Payment Terms :
Advance 30% deposit and ship after receiving 70% final payment
Supply Ability :
50000m/day
insulating materials :
customize:PVC、PE 、XLPE、EPR、SIR
specifications :
0.1-450mm²
Description
Medical Biocompatible Flat Ribbon Cable with Shielded Tinned Copper PVC Jacket

High-performance flat ribbon cable designed for medical applications requiring biocompatibility and reliable electrical performance in demanding environments.

Product Specifications
Model Type PH, XH, VH, IDC compatible
Application Scope Various electronic and electrical products
Terminal Type Crimping
Interface Type AC/DC
Shape Bar shaped
Production Process Crimping
Characteristics Moisture proof
Contact Material Environmentally friendly oxygen free tin plated copper
Insulator Material Environmentally friendly oxygen free tin plated copper
Number of Cores Customized by customer
Customized Needle Count Customized by customer
Line Length Customized by customer (mm)
Technical Parameters
Rated Current 1.0A~7.0A
Voltage Resistance Value 500~1000
Insulation Resistance 1000MΩ
Contact Resistance 30MΩ Max
Working Temperature -40℃~+200℃
Material Composition
Contact Material Environmentally friendly silicone rubber
Parallel Wiring PVC
High Temperature Cable Specifications
Product Categories High temperature cable series
Temperature Rating 200℃
Rated Voltage 300V
Test Voltage 2000V
Insulation Material Silicone Rubber
Conductor Material Tinned copper/Silver-plated copper/Enameled copper
Application Internal connections of electronic and electrical equipment
Detailed Cable Specifications
Conductor Insulation Electric Package
Cross-sectional area Structure Diameter Thickness Diameter Conductor resistance Allowable current Meter/roll
0.15*2C 7*0.15 0.46 0.60 1.70*3.40 127.10 1.88 305
0.20*2C 7*0.20 0.61 0.60 1.80*3.60 95.58 2.51 305
0.30*2C 7*0.25 0.76 0.60 2.00*4.00 59.40 4.04 305
0.50*2C 16*0.20 0.92 0.60 2.15*4.30 35.91 6.68 305
0.75*2C 24*0.20 1.13 0.60 2.35*4.70 23.93 10.03 305
1.00*2C 32*0.20 1.30 0.60 2.50*5.00 17.89 13.42 305
0.50*3C 16*0.20 0.92 0.60 2.15*6.50 35.91 6.68 305
0.75*3C 24*0.20 1.13 0.60 2.35*7.00 23.93 10.03 305
1.00*3C 32*0.20 1.30 0.60 2.50*7.50 17.89 13.42 305
Medical Biocompatible Flat Ribbon Cable with Shielded Tinned Copper and PVC Jacket for Custom Applications Medical Biocompatible Flat Ribbon Cable with Shielded Tinned Copper and PVC Jacket for Custom Applications

Medical Biocompatible Flat Ribbon Cable with Shielded Tinned Copper and PVC Jacket for Custom Applications

Brand LINKE Cross Section (mm²) 0.01-500mm²
Wire Gauge (AWG) [e.g., 24AWG, 28AWG] Conductor Tinned Copper /bare copper, based on client's requirements
Insulation material PVC/TPU/Silicone rubber/PE/PP/XLPE/Nylon/other Jacket Material [PVC/PU/Rubber/Braid/etc.]
Certifications RoHS/REACH/UL/CE/IP68/etc Custom Length [e.g., 1m, 3ft, 5m ±5% tolerance]
Cable Type [Medical/Power/Audio/Coaxial/Electrical/Automotive/Energy storage//etc.] Shielding [Shielded/Unshielded/Braid Shield]
Impedance [e.g., 75Ω (for coaxial cables)] Printing/Logo [Text/Label/Logo, max. 20 characters]
Bend Radius [e.g., ≥5* cable diameter] Current Rating [e.g., 5A]
Voltage Rating [e.g., 30V AC/DC] Connector Material [Gold-plated/Nickel-plated/Brass/etc.]
Connectors [e.g., USB Type-C, 3.5mm Jack, RJ45] Jacket XLPE or PE or PVC RUBBER
Delivery Time 7-14 days after confirming the order Colors [Black/White/Red/Custom Pantone/etc.]
temperature Minus-70℃to 350℃(-70℃ ~ 350℃) Package Roll/box/plate/Custom
Supporting Services custom cable, end to end solutions, including precise cutting, crimping and installation of lugs (specify material,e.g.,copper/nickel plated)

Medical Biocompatible Flat Ribbon Cable with Shielded Tinned Copper and PVC Jacket for Custom Applications Medical Biocompatible Flat Ribbon Cable with Shielded Tinned Copper and PVC Jacket for Custom Applications Medical Biocompatible Flat Ribbon Cable with Shielded Tinned Copper and PVC Jacket for Custom Applications

Flat cable is a type of electrical wire or cable that has a flat and wide shape, as opposed to traditional round wires or cables. It consists of multiple conductors arranged side by side, with a thin sheet-like insulating material maintaining the relative position and spacing between the conductors. Common insulating materials used for flat cables include polyimide and PVC. Flat cables typically have a higher density and greater flexibility, making them widely used in electronic devices, computers, communication equipment, and automation systems. Their flat design allows for neater wiring, easy installation, and maintenance.

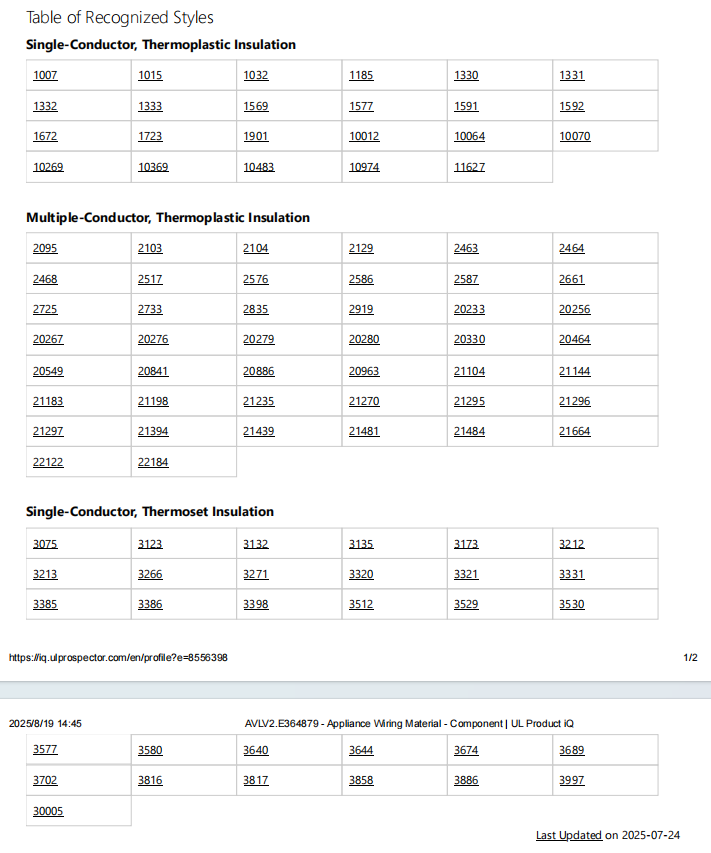

Quality Certifications

Our products meet the following international standards:

UL1007, UL1185, UL1672, UL10070, UL10483, UL1015, UL1569, UL10012, UL10269 (Single conductor, thermoplastic insulation)

UL2095, UL2129, UL2468, UL2586, UL2725, UL20233, UL20280, UL20963, UL2103, UL2463, UL2517, UL2587

UL2835, UL20276, UL20549, UL21198, 2104, UL2464, UL2576, UL2661, UL2919, UL20279, UL20886, UL21664

ISO9001 and ISO13485, TS16949

CNR - Appliance Wiring Material

Extruded PVC Insulated Single, rated 105ºC, 1000V, Class I, Group A, B, or AB, FT1 and/or FT2

Extruded PVC Non-integral Jacketed Cable, rated 105°C, 1000V, Class I, Class or Class I/II, Group A, B, or AB, FT1 and/or FT2

Extruded TPU Non-integral Jacketed Cable, rated 80°C, 300V, Class I, Class or Class I/II, Group A, B, or AB, FT1 and/or FT2

Frequently Asked Questions
Are you a manufacturer or trading company?

We are a professional manufacturer. We can control your order from the first beginning to the last. Welcome to visit us. We'll pick you up in Shenzhen.

How can I get a sample to test your quality?

The samples are free for you. New clients are expected to pay for the courier cost.

What's your Minimum Order Quantity?

Normally 100m. However, the cable is very heavy. You'd better order a suitable quantity to avoid the high freight. Sea transportation is the best option.

Can I get a discount?

It depends on your quantity. We can make a discount and afford the freight. Please kindly contact us.

Does your company accept OEM production?

Yes, we can print your company name, and we even custom the quality card to promote your company.
