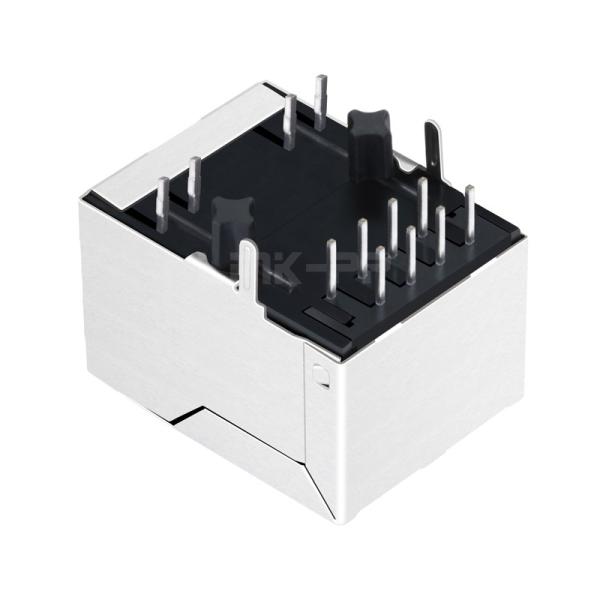

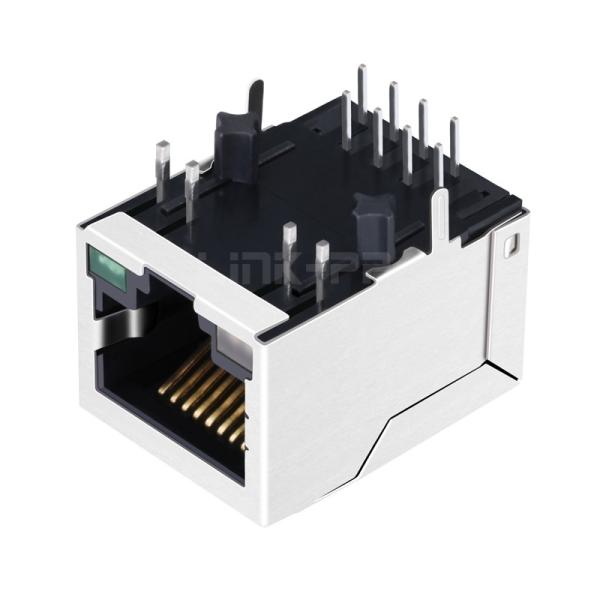

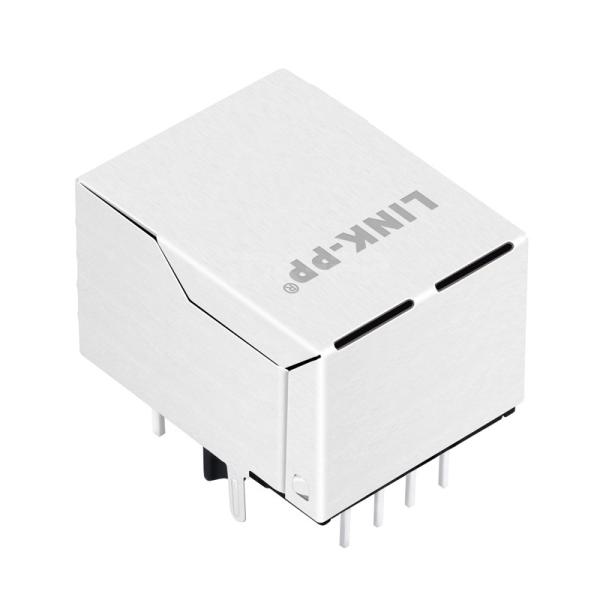

LPJ4092H7NL 10/100 Base-T Magnetics Jack RJ45 Female Connector Tab Down Yellow&Green/Green Leds
LPJ4092H7NL 10/100 Base-T Magnetics Jack RJ45 Female Connector Tab Down Yellow&Green/Green Leds
LPJ4092H7NL 10/100 Base-T Magnetics Jack RJ45 Female Connector Tab Down Yellow&Green/Green Leds
LPJ4092H7NL 10/100 Base-T Magnetics Jack RJ45 Female Connector Tab Down Yellow&Green/Green Leds
LPJ4092H7NL 10/100 Base-T Magnetics Jack RJ45 Female Connector Tab Down Yellow&Green/Green Leds
LPJ4092H7NL 10/100 Base-T Magnetics Jack RJ45 Female Connector Tab Down Yellow&Green/Green Leds
LPJ4092H7NL 10/100 Base-T Magnetics Jack RJ45 Female Connector Tab Down Yellow&Green/Green Leds
LPJ4092H7NL 10/100 Base-T Magnetics Jack RJ45 Female Connector Tab Down Yellow&Green/Green Leds
LPJ4092H7NL 10/100 Base-T Magnetics Jack RJ45 Female Connector Tab Down Yellow&Green/Green Leds
LPJ4092H7NL 10/100 Base-T Magnetics Jack RJ45 Female Connector Tab Down Yellow&Green/Green Leds
Specifications
Brand Name :
LINK-PP
Model Number :
LPJ4092H7NL
Certification :
UL,ROHS,Reach,ISO
Place of Origin :
Guangdong,China
LINK-PP P/N :
LPJ4092H7NL
Manufacturer :
LINK-PP
Compatible Brands :
LINK-PP
Latch :
Down
Pin Type :
THT SOLDER
LED Option :
Green&Yellow / Green
Shield EMI Tabs :
NO
Temperature :
-40℃ to +85℃
Application - LAN :
ETHERNET (NON PoE)
Reviews :
30
N.W/pcs :
0.007kg
Package :
Tray
SPQ :
50pcs
Qty/carton :
1200pcs
Carton size :
32*30*31cm
G.W./carton :
8.5kg
Description

LINK-PP LPJ4092H7NL 10/100 Base-T Magnetics Jack RJ45 Female Connector for Monitoring System and Smart Meters (Single Port, Tab Down, Yellow&Green/Green Leds )


The LPJ4092H7NL supports speed 10/100 Base-T, It is compliant to IEEE 802.3 , UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Monitoring System, Industrial PC, Hub and Smart Meters.


LINK-PP Part Number:
 LPJ4092H7NL Connector Type
 Jack
Part Status
 Active Mounting Type
 Through Hole
Number of Positions/Contacts
 8p8c (RJ45, Ethernet) Application-Lan
 Ethernet(NON PoE)
Number of Ports
1x1 PortSpeed
10/100 Base-T
Latch
Down Cores per Port
6
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithoutLED Option

Yellow&Green/Green Leds

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.524/13.30Package Length (Inches/mm)

0.837/21.25

Package Width (Inches/mm)
0.627/15.93Temperature

-40℃ TO 85℃

Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C
