X Multiple XRJV-01V-0-D12-080 Compatible LINK-PP LPJD0012DNL 10/100 Base-T Without LED Vertical RJ45 Female PCB Connector
X Multiple XRJV-01V-0-D12-080 Compatible LINK-PP LPJD0012DNL 10/100 Base-T Without LED Vertical RJ45 Female PCB Connector
X Multiple XRJV-01V-0-D12-080 Compatible LINK-PP LPJD0012DNL 10/100 Base-T Without LED Vertical RJ45 Female PCB Connector
X Multiple XRJV-01V-0-D12-080 Compatible LINK-PP LPJD0012DNL 10/100 Base-T Without LED Vertical RJ45 Female PCB Connector
X Multiple XRJV-01V-0-D12-080 Compatible LINK-PP LPJD0012DNL 10/100 Base-T Without LED Vertical RJ45 Female PCB Connector
X Multiple XRJV-01V-0-D12-080 Compatible LINK-PP LPJD0012DNL 10/100 Base-T Without LED Vertical RJ45 Female PCB Connector
X Multiple XRJV-01V-0-D12-080 Compatible LINK-PP LPJD0012DNL 10/100 Base-T Without LED Vertical RJ45 Female PCB Connector
X Multiple XRJV-01V-0-D12-080 Compatible LINK-PP LPJD0012DNL 10/100 Base-T Without LED Vertical RJ45 Female PCB Connector
X Multiple XRJV-01V-0-D12-080 Compatible LINK-PP LPJD0012DNL 10/100 Base-T Without LED Vertical RJ45 Female PCB Connector
X Multiple XRJV-01V-0-D12-080 Compatible LINK-PP LPJD0012DNL 10/100 Base-T Without LED Vertical RJ45 Female PCB Connector
Specifications
Brand Name :
LINK-PP
Model Number :
LPJD0012DNL
Certification :
UL,ROHS,Reach,ISO
Place of Origin :
Guangdong,China
Compatible :
X Multiple
Competitor P/N :
XRJV-01V-0-D12-080
Compatible Brands :
X multiple
LED Option :
No LEDs
Shield EMI Tabs :
NO
Temperature :
0℃ to 70℃
Application - LAN :
ETHERNET (NON PoE)
Questions :
1
Reviews :
90
N.W/pcs :
0.008kg
Package :
Tray
SPQ :
50pcs
Qty/carton :
1000pcs
Carton size :
32*30*31cm
G.W/carton :
7.5kg
Description

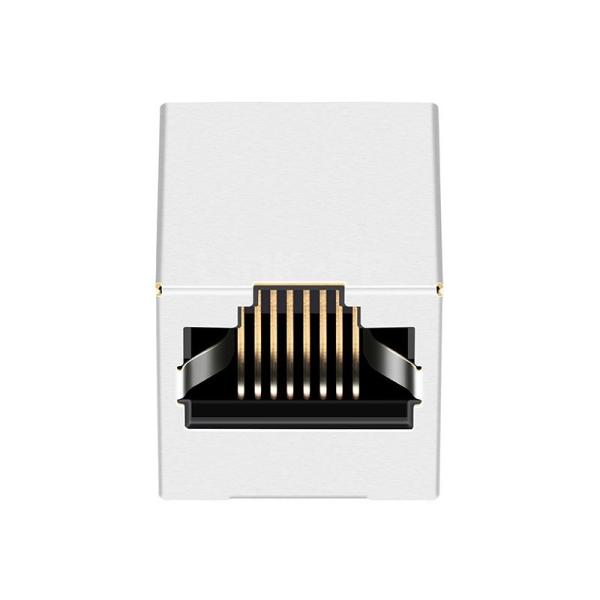

X Multiple XRJV-01V-0-D12-080 Compatible LINK-PP LPJD0012DNL 10/100 Base-T Vertical RJ45 Female PCB Connector For Router(Top Entry Without LED)


The LPJD0012DNL speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as New Energy, Automation, Industrial PC.


LINK-PP Part Number:
 LPJD0012DNL X Multiple Part Number XRJV-01V-0-D12-080
Part Status
 Active Connector Type
 Jack
Number of Positions/Contacts
 8p8c (RJ45, Ethernet) Application-Lan
 Ethernet(NoN PoE)
Number of Ports
1x1 PortSpeed
10/100 Base-T
Latch
UpCores per Port
4
Orientation
180° Angle (Right)PCB Mount Angle

THT Solder

Shield EMI Tabs
WithoutLED Option

Without

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.665/16.90Package Length (Inches/mm)

0.657/16.70

Package Width (Inches/mm)
0.630/16.00
Temperature
0℃ TO 70℃
Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C
