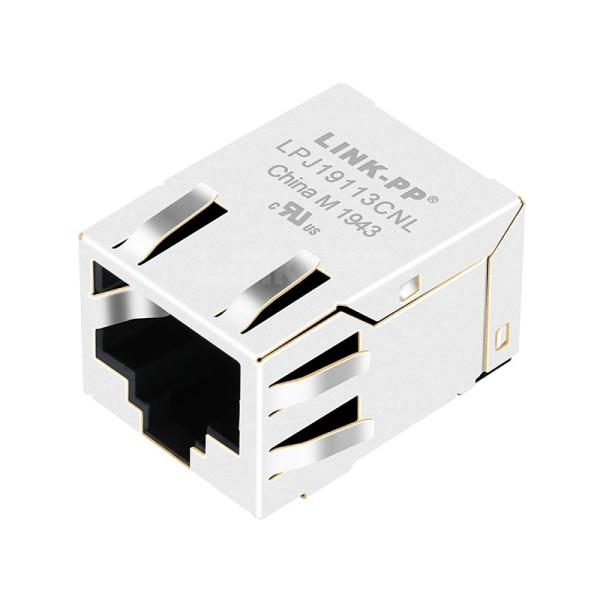

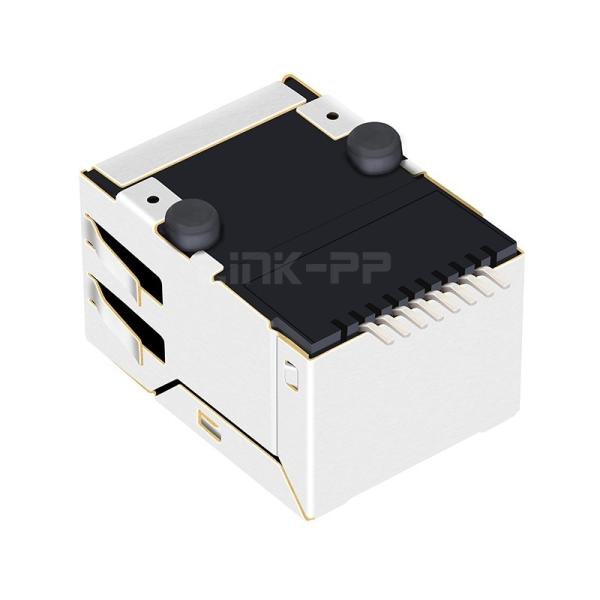

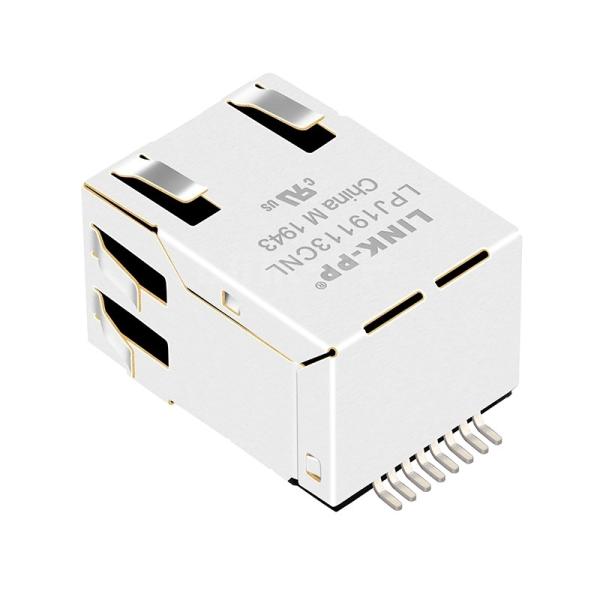

LPJ19113CNL China SMT RJ45 Jack Suppliers 10/100 Base-T Without LED Tab Down
LPJ19113CNL China SMT RJ45 Jack Suppliers 10/100 Base-T Without LED Tab Down
LPJ19113CNL China SMT RJ45 Jack Suppliers 10/100 Base-T Without LED Tab Down
LPJ19113CNL China SMT RJ45 Jack Suppliers 10/100 Base-T Without LED Tab Down
LPJ19113CNL China SMT RJ45 Jack Suppliers 10/100 Base-T Without LED Tab Down
LPJ19113CNL China SMT RJ45 Jack Suppliers 10/100 Base-T Without LED Tab Down
LPJ19113CNL China SMT RJ45 Jack Suppliers 10/100 Base-T Without LED Tab Down
LPJ19113CNL China SMT RJ45 Jack Suppliers 10/100 Base-T Without LED Tab Down
LPJ19113CNL China SMT RJ45 Jack Suppliers 10/100 Base-T Without LED Tab Down
LPJ19113CNL China SMT RJ45 Jack Suppliers 10/100 Base-T Without LED Tab Down
Specifications
Brand Name :
LINK-PP
Model Number :
LPJ19113CNL
Certification :
UL,ROHS,Reach,ISO
Place of Origin :
Guangdong,China
LINK-PP P/N :
LPJ19113CNL
Manufacturer :
LINK-PP
Compatible Brands :
LINK-PP
Latch :
Down
Shield EMI Tabs :
YES
LED Option :
No LEDs
Temperature :
0℃ to 70℃
Application - LAN :
ETHERNET (NON PoE)
Questions :
1
Reviews :
46
N.W/pcs :
0.11kg
Package :
Tray
SPQ :
120pcs
Qty/carton :
720pcs
Carton size :
36*36*35cm
G.W/carton :
8kg
Description

LINK-PP LPJ19113CNL 10/100 Base-T China SMT RJ45 connector Suppliers for Router and Set-top Box ( Without LED,Tab Down )


The LPJ19113CNL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Network Firewall, Router, Set-top Box .


LINK-PP Part Number:
 LPJ19113CNL Connector Type
 Jack
Part Status
 Active Mounting Type
 Surface Mount
Number of Positions/Contacts
 8p8c (RJ45, Ethernet) Application-Lan
 Ethernet(NoN PoE)
Number of Ports
1x1 PortSpeed
10/100 Base-T
Latch
DownCores per Port
4
Orientation
Angle (Right)PCB Mount Angle

90°

Shield EMI Tabs
WithLED Option

Without Leds

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.535/13.60Package Length (Inches/mm)

0.864/21.95

Package Width (Inches/mm)
0.640/16.26
Temperature
0℃ TO 70℃
Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C
