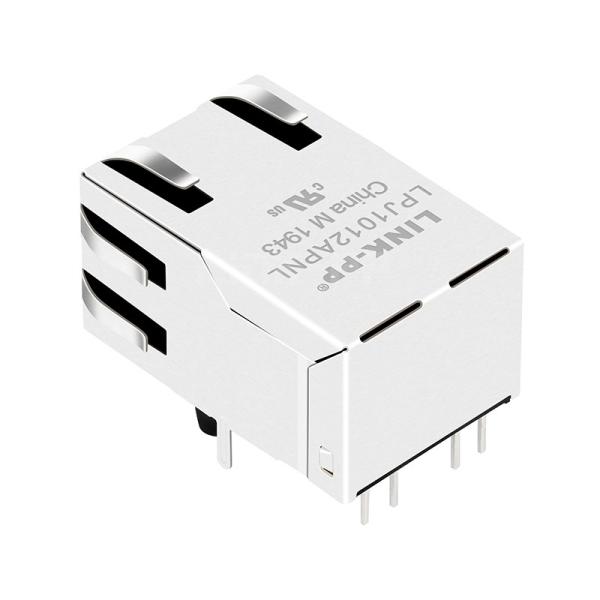

LPJ1012APNL 10/100 Base-T 1 Port Cat5e Jack RJ45 Connector Tab Up Green/Yellow Led
LPJ1012APNL 10/100 Base-T 1 Port Cat5e Jack RJ45 Connector Tab Up Green/Yellow Led
LPJ1012APNL 10/100 Base-T 1 Port Cat5e Jack RJ45 Connector Tab Up Green/Yellow Led
LPJ1012APNL 10/100 Base-T 1 Port Cat5e Jack RJ45 Connector Tab Up Green/Yellow Led
LPJ1012APNL 10/100 Base-T 1 Port Cat5e Jack RJ45 Connector Tab Up Green/Yellow Led
LPJ1012APNL 10/100 Base-T 1 Port Cat5e Jack RJ45 Connector Tab Up Green/Yellow Led
LPJ1012APNL 10/100 Base-T 1 Port Cat5e Jack RJ45 Connector Tab Up Green/Yellow Led
LPJ1012APNL 10/100 Base-T 1 Port Cat5e Jack RJ45 Connector Tab Up Green/Yellow Led
LPJ1012APNL 10/100 Base-T 1 Port Cat5e Jack RJ45 Connector Tab Up Green/Yellow Led
LPJ1012APNL 10/100 Base-T 1 Port Cat5e Jack RJ45 Connector Tab Up Green/Yellow Led
Specifications
Brand Name :
LINK-PP
Model Number :
LPJ1012APNL
Certification :
UL,ROHS,Reach,ISO
Place of Origin :
Guangdong,China
LINK-PP P/N :
LPJ1012APNL
Manufacturer :
LINK-PP
Compatible Brands :
LINK-PP
Latch :
Up
Pin Type :
THT SOLDER
LED Option :
Green / Yellow
Shield EMI Tabs :
YES
Temperature :
0℃ to 70℃
Application - LAN :
ETHERNET (NON PoE)
Questions :
1
Reviews :
60
N.W/pcs :
0.007kg
Package :
Tray
SPQ :
50pcs
Qty/carton :
1200pcs
Carton size :
32*30*31cm
G.W/carton :
8.5kg
Description

LINK-PP LPJ1012APNL 10/100 Base-T Cat5e Jack RJ45 Connectors (1 Port, Tab Up, Green/Yellow Led )


The LPJ1012APNL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Monitoring System, Network Firewall, Switches and Entrance Guard System.


LINK-PP Part Number:
 LPJ1012APNL Connector Type
 Jack
Part Status
 Active Mounting Type
 Through Hole
Number of Positions/Contacts
 8p8c (RJ45, Ethernet) Application-Lan
 Ethernet(NoN PoE)
Number of Ports
1x1 PortSpeed
10/100 Base-T
Latch
UPCores per Port
4
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Green/Yellow Leds

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.530/13.45Package Length (Inches/mm)

0.994/25.25

Package Width (Inches)
0.636/16.15Temperature

0℃ TO 70℃

Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C
