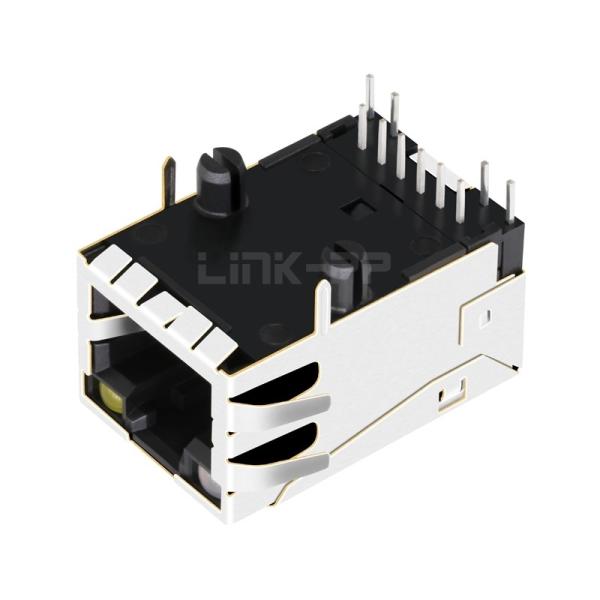

Pulse JP006821UNL Compatible LINK-PP LPJ2006KONL 10/100 Base-T Tab Up Green&Orange/Yellow Led One Port Ethernet Connector RJ45 Socket
Pulse JP006821UNL Compatible LINK-PP LPJ2006KONL 10/100 Base-T Tab Up Green&Orange/Yellow Led One Port Ethernet Connector RJ45 Socket
Pulse JP006821UNL Compatible LINK-PP LPJ2006KONL 10/100 Base-T Tab Up Green&Orange/Yellow Led One Port Ethernet Connector RJ45 Socket
Pulse JP006821UNL Compatible LINK-PP LPJ2006KONL 10/100 Base-T Tab Up Green&Orange/Yellow Led One Port Ethernet Connector RJ45 Socket
Pulse JP006821UNL Compatible LINK-PP LPJ2006KONL 10/100 Base-T Tab Up Green&Orange/Yellow Led One Port Ethernet Connector RJ45 Socket
Pulse JP006821UNL Compatible LINK-PP LPJ2006KONL 10/100 Base-T Tab Up Green&Orange/Yellow Led One Port Ethernet Connector RJ45 Socket
Pulse JP006821UNL Compatible LINK-PP LPJ2006KONL 10/100 Base-T Tab Up Green&Orange/Yellow Led One Port Ethernet Connector RJ45 Socket
Pulse JP006821UNL Compatible LINK-PP LPJ2006KONL 10/100 Base-T Tab Up Green&Orange/Yellow Led One Port Ethernet Connector RJ45 Socket
Pulse JP006821UNL Compatible LINK-PP LPJ2006KONL 10/100 Base-T Tab Up Green&Orange/Yellow Led One Port Ethernet Connector RJ45 Socket
Pulse JP006821UNL Compatible LINK-PP LPJ2006KONL 10/100 Base-T Tab Up Green&Orange/Yellow Led One Port Ethernet Connector RJ45 Socket
Specifications
Brand Name :
LINK-PP
Model Number :
LPJ2006KONL
Certification :
UL,ROHS,Reach,ISO
Place of Origin :
Guangdong,China
Compatible :
Pulse
Competitor P/N :
JP006821UNL
Compatible Brands :
Pulse
Latch :
Up
Pin Type :
THT SOLDER
LED Option :
Green&Orange / Yellow
Shield EMI Tabs :
YES
Temperature :
0℃ to 70℃
Application - LAN :
ETHERNET (NON PoE)
Questions :
1
Reviews :
10
N.W/pcs :
0.01kg
Package :
Tray
SPQ :
50pcs
Qty/carton :
1200pcs
Carton size :
40*32*33cm
G.W/carton :
12.3kg
Description

Pulse JP006821UNL Compatible LINK-PP LPJ2006KONL 10/100 Base-T Ethernet Connector RJ45 Socket for Monitoring System and Ethernet Control (One Port, Tab Up, Green&Orange/Yellow)


The LPJ2006KONL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Monitoring System, Ethernet Control, Intercom and Entrance Guard System.


Product Specification

LINK-PP Part Number:
 LPJ2006KONL Pulse Part Number JP006821UNL
Part Status
 Active Connector Type
 Jack
Number of Positions/Contacts
 8p8c (RJ45, Ethernet) Application-Lan
 Ethernet(NoN PoE)
Number of Ports
1x1 PortSpeed
10/100 Base-T
Latch
UpCores per Port
4
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Green&Orange/Yellow

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.445/13.25Package Length (Inches/mm)

0.946/25.60

Package Width (Inches/mm)
0.700/16.80
Temperature
0℃ TO 70℃
Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C
