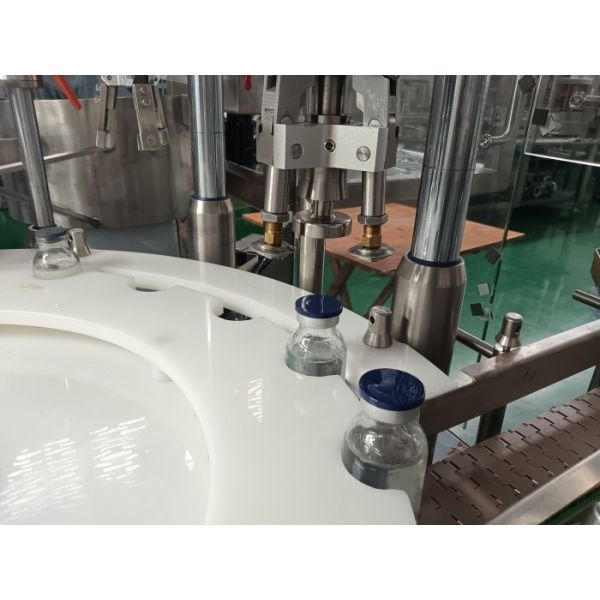

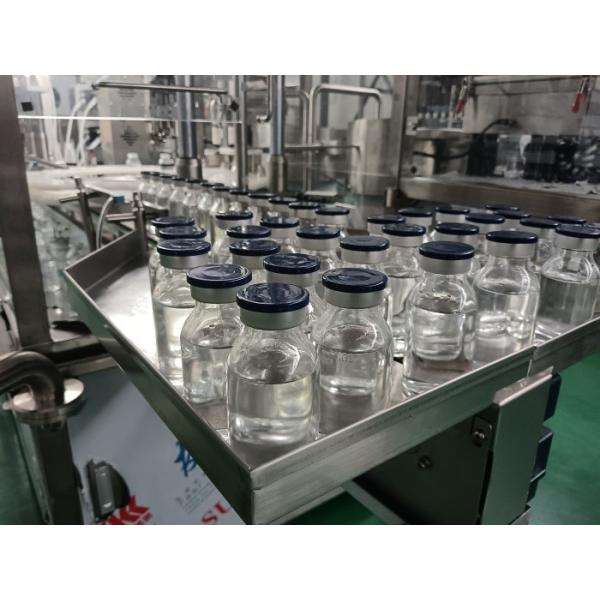

Automatic Bioactive Liquid Bottle Filling and Sealing Machine (30-500ml)

Low-Shear Dosing and Inert Nitrogen Blanketing for Premium Serums and Advanced Cellular Reagents

Product Overview

In the commercial scaling of advanced aesthetic formulations, high-value cellular reagents, and premium liquid cosmetics, preserving the molecular integrity of the fluid during high-speed packaging is non-negotiable. The Lingyao LYGZX Series Automatic Liquid Bottle Filling Machine is an elite automation platform explicitly engineered to process 30ml to 500ml glass and rigid polymer containers.

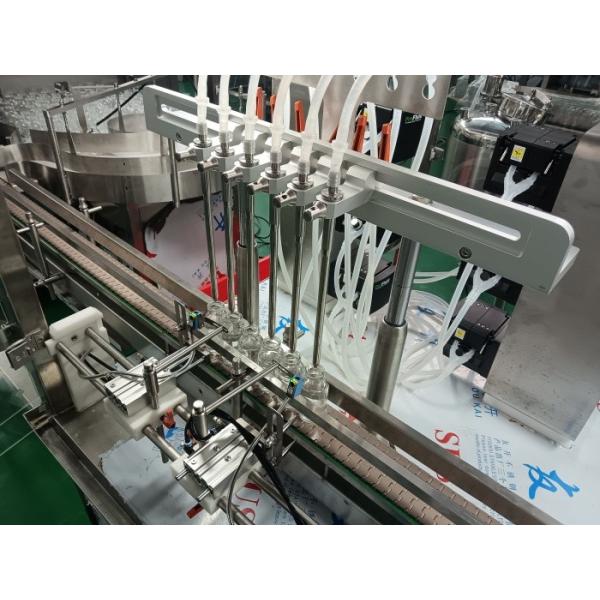

Configurable with 4, 6, 8, or 12 synchronized dosing heads, this linear platform achieves a scalable output of 25 to 85 Bottles Per Minute (BPM). By integrating isolated low-shear pumping mechanisms with targeted nitrogen gas displacement, the LYGZX series safeguards highly sensitive bioactive liquids from degradation while securing an uncompromising volumetric dosing accuracy of ≤ ±0.5%.

The Cause: Oxidative Potency Loss and Protein Denaturation

Processing high-value, active biological formulas through standard industrial fillers introduces critical vulnerabilities that destroy product efficacy:

1. Shear-Stress Degradation: Standard high-pressure pneumatic pumps apply aggressive mechanical friction. When processing delicate cellular reagents or complex protein structures (like hyaluronic acid matrices), this shearing force denatures the active compounds, rendering the premium formulation useless before it even leaves the factory.

2. Atmospheric Oxidation: Active ingredients in luxury aesthetic serums are highly reactive to ambient oxygen. If standard atmospheric air is trapped in the bottle's headspace, the fluid undergoes rapid oxidation, severely compromising its shelf-life and aesthetic quality.

3. Costly Volumetric Giveaway: High-end bioactive formulas can cost thousands of dollars per liter. Operating with a loose 1.0% accuracy tolerance on a 500ml fill translates to catastrophic financial losses in material giveaway across a single production shift.

The Solution: Isolated Peristaltic Dynamics and Multi-Point Nitrogen Purging

The Lingyao engineering team completely eliminated these packaging bottlenecks through advanced fluid handling and precision atmospheric control.

To prevent shear-stress denaturation and material waste, the fluid pathway can be customized with Medical-Grade Peristaltic Pumps or Precision Servo-Driven Stainless Steel Cylinders. The peristaltic configuration ensures the liquid only contacts sterile, disposable silicone tubing—never the mechanical pump itself. This delivers a remarkably gentle, low-shear fill that locks dosing accuracy to a strict ≤ ±0.5%.

To completely eliminate oxidative stress, the machine features an integrated Multi-Point Nitrogen Purging System. High-purity inert nitrogen is injected directly into the bottles immediately prior to the liquid dosing and right before the cap is applied. This creates a secure inert blanket that displaces ambient oxygen, ensuring maximum molecular potency and extended shelf-life for your most sensitive formulations.

Technical Specifications

Targeted Advanced Industrial Applications

• Premium Aesthetic Serums: Oxidation-free, highly accurate packaging for expensive hyaluronic acid complexes, collagen suspensions, and high-value liquid cosmetics.

• Advanced Cellular Reagents: Low-shear, sterile filling pathways engineered to protect fragile culture mediums and bioactive liquid matrices from mechanical degradation.

• Agile CDMO Facilities: Modular pump configurations allow contract manufacturers to execute zero-cross-contamination changeovers between different high-value biological formulas in under 20 minutes.

Direct Manufacturer Precision and Global Turnkey Integration

Securing high-precision fluid automation requires a direct manufacturing partner capable of absolute quality oversight. Engineered and rigorously tested at our advanced TachoCraft Thailand manufacturing base, Lingyao provides complete architectural control, eliminating third-party communication gaps and ensuring your equipment meets rigorous cGMP standards.

We accompany your asset with a comprehensive suite of globally recognized compliance documentation. Our international engineering team provides meticulous IQ/OQ/PQ validation dossiers and complete component traceability records. This meticulous engineering completely smooths cross-border logistics, drastically expediting strict SABER/SASO customs clearances across the Middle East and seamlessly satisfying regulatory facility audits in expanding markets across Africa and Asia.
